The AirTAC Y Joint Series is a high-strength pneumatic accessory designed to provide a secure and articulated connection between a cylinder's piston rod and its load. Commonly known as a "Clevis Joint," this series is ideal for applications requiring a pivoting linkage, allowing the cylinder to transfer force effectively while accommodating rotational movement.
Crafted from premium-grade materials to withstand high tensile and compressive forces, the Y Joint features a precision-machined fork design and a secure pivot pin. This robust construction ensures long-term reliability in automated production lines, heavy-duty machinery, and pick-and-place robotic systems.
Key Features:
Pivoting Linkage Design: Facilitates smooth rotational movement at the point of connection, reducing mechanical stress on the piston rod.
High-Strength Construction: Engineered to handle the rigorous demands of industrial automation with superior durability.
Secure Pivot Pin: Includes a high-precision pin and retaining mechanism for a stable, fail-safe connection.
Easy Installation: Designed with standard internal threads to match a wide range of AirTAC cylinder piston rods.
Corrosion Resistance: Built to maintain performance and appearance even in challenging industrial environments.
.png)
| Type\Item | A | B | C | D | F | E | G | H | I |
| F-M3X050Y | 15.5 | 12 | 5 | 6 | 6 | M3×0.5 | 9 | 3 | 3 |
| F-M4X070Y | 22 | 16 | 8 | 8 | 7 | M4×0.7 | 11.5 | 4 | 4 |
| F-M5X080Y | 28 | 21 | 10.2 | 12 | 10 | M5×0.8 | 15.5 | 6.5 | 5 |
| F-M6X100Y | 32 | 24 | 12 | 12 | 10 | M6×1.0 | 16 | 6 | 6 |
| F-M8X125Y | 42 | 32 | 16 | 16 | 14 | M8×1.25 | 21 | 8 | 8 |
| F-M10X125Y | 52 | 40 | 20 | 19 | 18 | M10×1.25 | 25 | 10 | 10 |

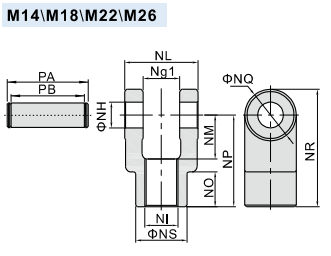

.png)
| Type\Item | NG1 | NH | NI | NL | NM | NO | NP | NQ | NR | NS | PA | PB |
| F-M14X150Y | 14.2 | 10 | M14×1.5 | 27.8 | 19 | 17 | 40 | 22 | 51 | 22 | 34.6 | 28.8 |
| F-M18X150Y | 20.2 | 14 | M18×1.5 | 39.8 | 24 | 19 | 50 | 28 | 64 | 28 | 47 | 40.8 |
| F-M22X150Y | 30.2 | 22 | M22×1.5 | 59.8 | 34 | 20 | 65 | 40 | 85 | 40 | 69.2 | 60.8 |
| F-M26X150Y | 30.2 | 22 | M26×1.5 | 59.8 | 34 | 20 | 65 | 40 | 85 | 40 | 69.2 | 60.8 |
.png)
| Type\Item | NA | NC | ND | NP | NQ | NM | NH | PA | PB |
| F-M12X125Y | 25.4 | 12 | 48 | 24 | 62 | 12 | M12×1.25 | 32.4 | 26.2 |
| F-M16X150Y | 32 | 16 | 64 | 32 | 80 | 16 | M16×1.5 | 39 | 32.8 |
| F-M20X150Y | 44.4 | 20 | 80 | 40 | 101 | 20 | M20×1.5 | 53.4 | 45.2 |
| F-M27X200Y | 54 | 30 | 110 | 55 | 139 | 30 | M27×2.0 | 64.2 | 54.8 |
| F-M36X200Y | 70 | 35 | 144 | 73 | 179 | 35 | M36×2.0 | 80.2 | 70.8 |
| F-M42X200Y | 85 | 40 | 168 | 86 | 211 | 40.3 | M42×2.0 | 115 | 93 |

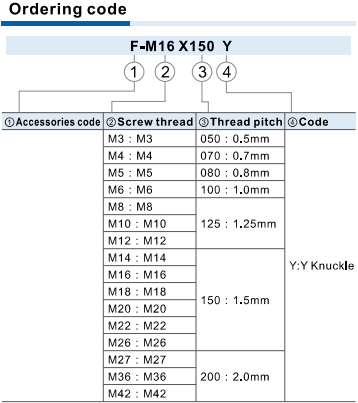

.png)

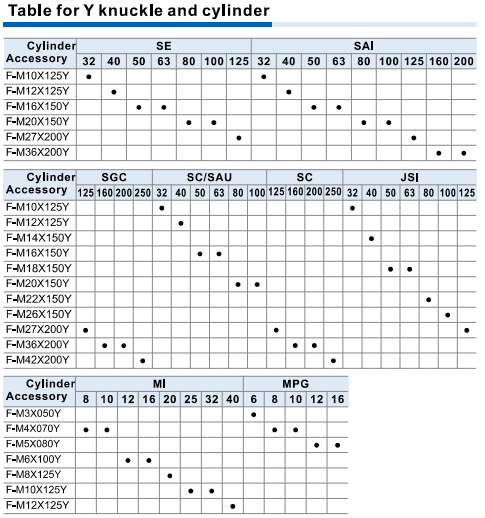

.png)
