AirTAC U Joint Series: High-Durability Rod End Universal Joint

The AirTAC U Joint Series is a precision-engineered rod end accessory designed to provide flexible linkage between pneumatic cylinders and their driven loads. These universal joints are essential for compensating for radial and angular misalignments, ensuring smooth linear motion and preventing premature wear on cylinder seals and piston rods.

Constructed from high-strength materials, the U Joint series features a spherical bearing design that allows for multi-directional movement. This flexibility reduces internal friction and stress during operation, making it an ideal component for automated machinery, industrial robotics, and complex linkage systems.

Key Features:

Misalignment Compensation: Effectively offsets angular and radial deviations between the cylinder and the load.
High-Strength Construction: Built to withstand significant tensile and compressive forces in heavy-duty applications.
Spherical Bearing Design: Allows for fluid, multi-axis rotation to ensure stable mechanical transmission.
Reduced Component Wear: Prevents "side-loading" on piston rods, extending the overall service life of the pneumatic system.
Versatile Compatibility: Available in multiple sizes to fit a wide range of standard AirTAC cylinder rod threads.

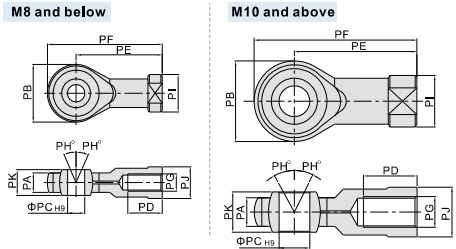

Dimensions:

Type\Item	PA	PB	PC	PD	PE	PF	PG	PH	PI	PJ	PK
F-M4X070U	6	18	5	10	27	36	M4×0.7	13	12.5	10	8
F-M5X080U	6	18	5	10	27	36	M5×0.8	13	12.5	10	8
F-M6X100U	6.8	20	6	12	30	40	M6×1.0	13	13	11	9
F-M8X125U	9	24	8	16	36	48	M8×1.25	13	16	14	12
F-M10X125U	11	26	10	20	43	56	M10×1.25	13	19	17	14
F-M12X125U	12	32	12	22	50	66	M12×1.25	13	22	19	16
F-M14X150U	14	36	14	28	57	75	M14×1.5	13	25	22	19
F-M16X150U	15	40	16	28	64	84	M16×1.5	15	27	22	21
F-M18X150U	16.5	46	18	30	71	94	M18×1.5	15	31	27	23
F-M20X150U	18	46	20	33	77	100	M20×1.5	15	34	30	25
F-M26X150U	22	60	25	48	94	124	M26×1.5	15	42	36	31
F-M27X200U	25	70	30	51	110	145	M27×2.0	15	50	41	37
F-M36X200U	27.5	80	35	56	125	165	M36×2.0	15	57.5	50	43
