TH Deck 762 Metal Decking

TH Deck 762 Metal Decking is a high-strength trapezoidal metal deck profile designed for roofing and flooring applications. With its wide effective coverage and multi-ribbed form, it offers excellent spanning capability, fast installation and reliable long-term performance.

  • High tensile steel construction for superior durability and load carrying capacity.
  • 762 mm effective cover width for faster installation and reduced lap joints.
  • Customisable sheet length to suit project-specific spans and layout.
  • Compatible with common insulation and ceiling systems for versatile design.


Superior durability and customisation in length

TH Deck 762 Metal Decking is roll-formed from high tensile steel to deliver a tough, hard-wearing roof or deck surface. Panels can be produced in custom lengths to minimise end laps and improve weather performance on site.

Colour and thickness options for every project

TH Deck 762 Metal Decking is available in a range of colours and material thicknesses to match structural requirements and architectural preferences, ensuring both performance and aesthetics.

  • Ideal for heavy rainfall:  The ribbed profile and side laps promote efficient water discharge, helping to prevent ponding on the roof surface.
  • Suitable for any building:  Widely used in factories, warehouses, commercial buildings and residential projects.

Key features of TH Deck 762 Metal Decking

The profile geometry and rib arrangement of TH Deck 762 Metal Decking are designed to provide efficient load transfer, controlled deflection and reliable weather performance.

  • High rib depth: Improves bending strength and stiffness over long spans.
  • Side-lap ribs: Enhance weather-tightness and assist with sheet alignment.
  • Wide cover width: Fewer sheets needed for a given area, improving installation speed.
  • High tensile steel: Manufactured from structural grade material to meet demanding loading conditions.

Specifications

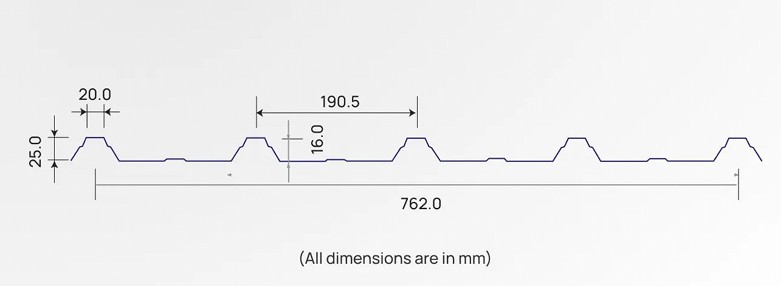

TH Deck 762 Metal Decking sectional profile

Sectional Profile

Dimension Details

Tolerance

  • Thickness of material: ±0.03 mm
  • Effective width: ±3 mm
  • Finishing length: ±5 mm

Dimension

  • Rib height: 25 mm
  • Minimum Room Pitch:  3º
  • Effective cover : 762 mm

TH Deck 762 Metal Decking FAQ

It serves as a profiled metal sheet for roofing or floor decking, carrying imposed loads and transferring them to the supporting structure while providing a durable weather-tight surface.

It is widely applied in factories, warehouses, commercial buildings, car parks and residential projects as roof cladding, metal deck for insulated roofs, or as composite slab formwork.

Selection depends on design loads, support spacing and serviceability criteria such as deflection. Refer to TH Deck 762 span tables and consult your project engineer or supplier for final confirmation.
