TH Deco Panel 275

TH Deco Panel 275 is a lightweight, aesthetic metal wall cladding profile designed for signage, feature walls and decorative architectural applications. Its clean, slim corrugated design with concealed fixings delivers a modern visual finish with fast installation and reliable rigidity.

Lightweight steel sheet for easy handling and installation.
Hidden screw system keeps the surface neat and seamless.
Ideal for signage, retail walls, reception backdrops and partition borders.
Optional curved installation to follow internal or external feature surfaces.

Versatile Wall Cladding for Modern Interior and Display Design

TH Deco Panel 275 blends formed corrugation with a slim, compact profile and concealed fixing system. It is suitable for commercial shopfronts, feature walls, interior displays and external façades that require consistent colour tone and a crisp architectural look.

Curved Installation Ready

With a minimum installation radius (as per catalogue), TH Deco Panel 275 can be gently curved to wrap around columns or follow contoured surfaces, creating striking feature elements with minimal cutting.

Minimal maintenance: Smooth coated surface is easy to clean and maintain.
Suitable for outdoor and indoor use: Can be used on façades, soffits, internal feature walls and signage.

Deco Panel Profile Features

The TH Deco Panel 275 profile combines shallow ribs and a narrow cover width to achieve a sleek, repetitive rhythm ideal for visual applications. The geometry is optimised for wall cladding rather than primary structural spanning.

Standard cover width (W): 275 mm effective coverage per panel.
Rib height (H): Low rib depth provides a subtle texture with easy cleaning.
Side laps: Designed for concealed fastening and tight interlocking between sheets.
Material options: High-tensile colour-coated steel to match branding and design themes.

Specifications

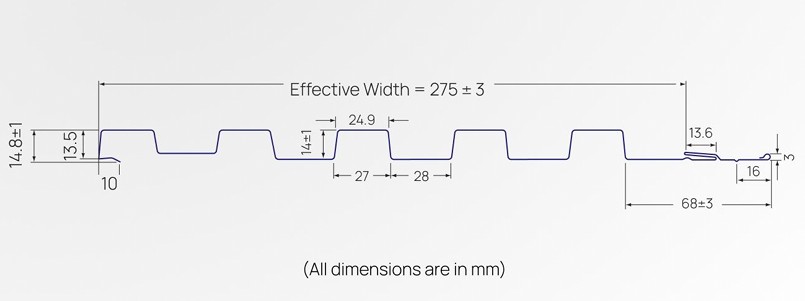

Sectional Profile

Details

Physical Properties

Standard cover width : 275 mm
Rib height : 14.8 mm
Steel grade : G550 (high-tensile)
Coated steel options : Z120, Z150, Z275 and AZ150

Thickness

Available thickness : 0.35 mm TCT & 0.40 mm TCT

TH Deco Panel 275 FAQ

It is frequently used for shopfronts, interior feature walls, signage backdrops, display panels and perimeter cladding where appearance and branding are important.

Yes, it can be used outdoors when specified with suitable coated steel and when flashing, cappings and fixings are detailed correctly to protect against water ingress and corrosion.

TH Deco Panel 275 can be installed to gentle curves within the recommended radius limits shown in the product catalogue. For tighter curves, please consult your supplier or engineer for feasibility and fixing recommendations.
