KH-40-B Stick Electrode

Penerangan

KH-40-B
Type of coating: Low hydrogen type
Weld metal is martensite structure and has acceptable machining properties

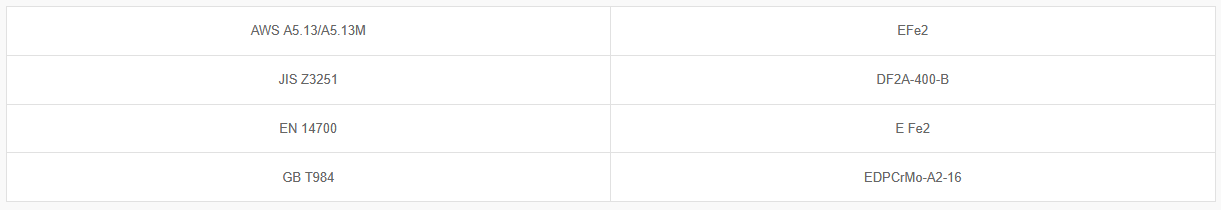

Classification


Application and Features

• Weld metal is martensite structure and has acceptable machining properties
• It provides good crack resistance and impact and medium abrasion
• It is suitable for repairing drive sprockets, idlers, pulleys, caterpillar bands, crusher rolls, buckets, chains and shafts

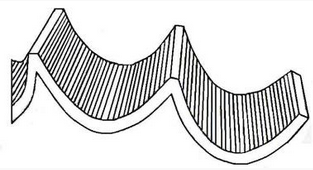

Caterpillar band

Welding Position


Welding Instruction

• Dry the electrodes at 300-350°C for 30-60 minutes before use
• Clean up the contaminations on the steel. Keep arc as short as possible
• Take the back-step method to prevent porosity at the arc starting

Application
- It is suitable for repairing drive sprockets, idlers, pulleys, caterpillar bands, crusher rolls, buckets, chains and shafts

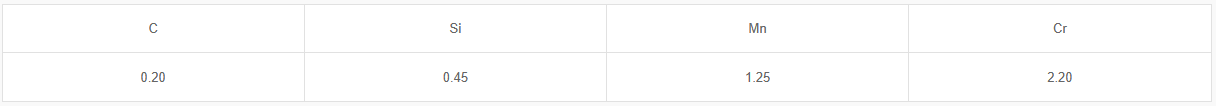

Typical Chemical Composition of Weld Metal (wt%)

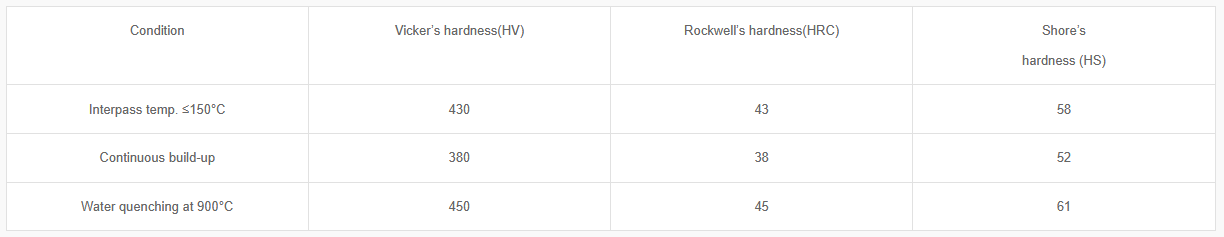

Typical Hardness of Weld Metal

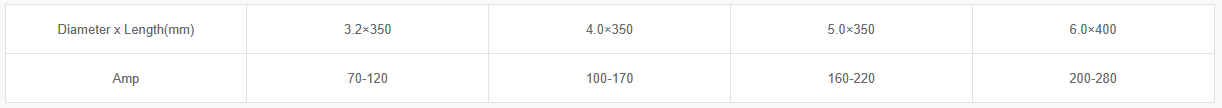

Size and Suggested Operating Range (AC or DC+)
