KH-SLA Stick Eletrode

Penerangan

KH-SLA
Type of coating: Lime titania type
KH-SLA is a co-based hardfacing electrode (equivalent to Stellite 6) and provides corrosion and oxidation resistance. It can be applied in service temperature up to 650°C. It possesses low stress abrasion resistance

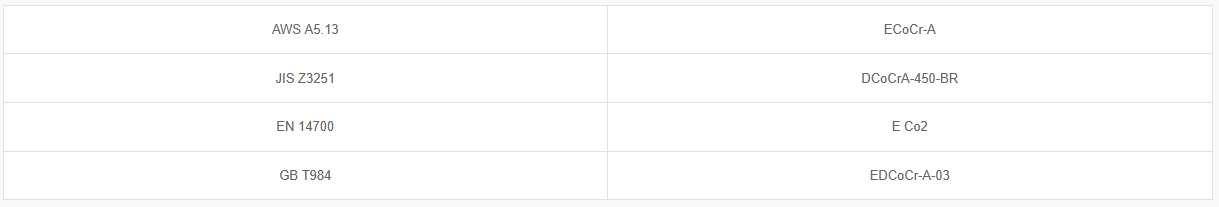

Classification


Application and Features

• KH-SLA is a co-based hardfacing electrode (equivalent to Stellite 6) and provides corrosion and oxidation resistance. It can be applied in service temperature up to 650°C. It possesses low stress abrasion resistance
• It is suitable for high temperature abrasion with corrosive environment, such as high temperature valve seats, hot work tools, cutters, gas flow valves, turbine blades and hot press screws
• It is generally applied in steel mill, chemistry, petrifaction and sugar industries

Welding Position


Welding Instruction

• The dilution rate deteriorates the hardness and corrosion resistance
• Dragging a 90-degree angle or a short arc can reduce the dilution of weld metal
• Preheat and Int. temperature should be 400~500°C. Use slow cooling after welding to prevent cracks
• Dry the electrodes at 200-250°C for 30-60 minutes before use

Application
- It is suitable for high temperature abrasion with corrosive environment, such as high temperature valve seats, hot work tools, cutters, gas flow valves, turbine blades and hot press screws

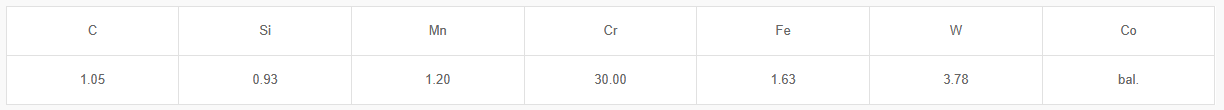

Typical Chemical Composition of Weld Metal (wt%)

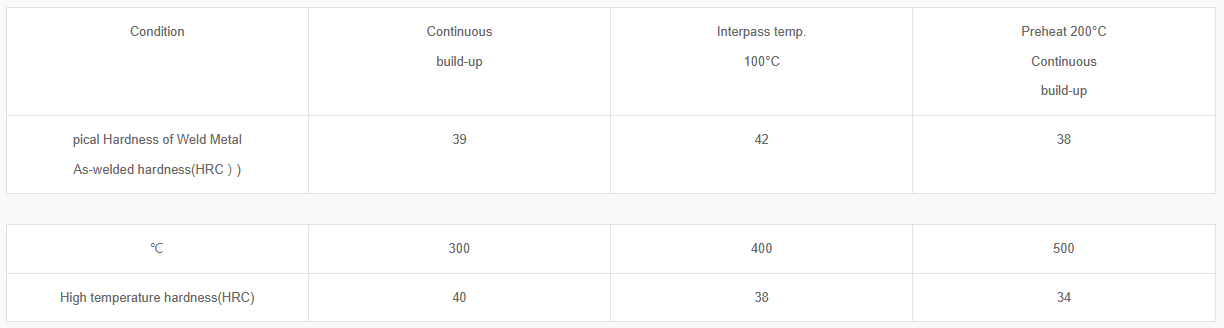

Typical Hardness of Weld Metal

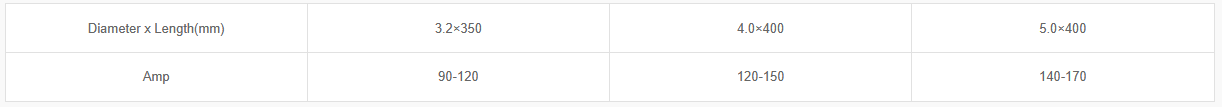

Size and Suggested Operating Range (DC+)
