Model :
| Capability | Position repeatability (mm) | ±0.04 | |
| Screw lead (mm) | 40 | ||
| Maximum Speed (mm/s) | 2000 | ||
| Maximum Payload | Horizontal (kg) | 25 | |
| Vertical (kg) | - | ||
| Rated Thrust (N) | 100 | ||
| Standard Stroke/Pitch (mm) | 100-3050mm/50 interval 50mm pitch | ||
| Parts | AC Servo Motor Output (W) | 200 | |
| Belt Width (mm) | 25 | ||
| High Rigidity Linear Guide (mm) | 15 × 12.5 | ||
| Coupling (mm) | 12 × 14 | ||

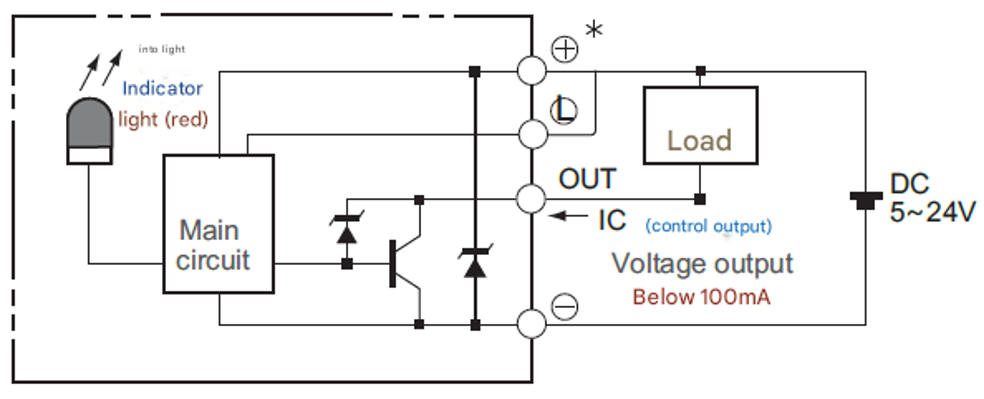

| Home Sensor | Outside | EE-SX672 (NPN) | |
| Built in | EE-SX674 (NPN) | ||
