Penerangan
KL-524
Iron powder titanium dioxide welding electrode for high- tensile steel of grade 490N/mm²

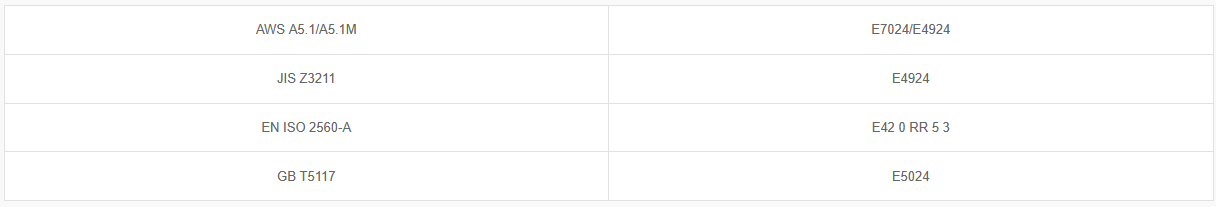

Applicable Standards
.png)
Characteristics and Applications
- Iron powder titanium dioxide welding electrode for high-tensile steel of grade 490N/mm²
- It is easy to start an arc, has excellent re-arc performance, produces very little spark spatter, automatically removes weld slag, and results in a very beautiful weld bead
- The fill rate can reach 160%, making it particularly suitable for gravity welding and multi-pass welding
- Single-pass welding can achieve the required corner angles and is less prone to weld corrosion
- Suitable for fillet welding in shipbuilding, steel structures and mechanical equipment
Welding Posture
.png)
Precautions of Use
- When using a gravity-type rig for semi-automatic welding, it is advisable to use long welding rods. The rig angle can be adjusted to control the leg length and welding speed.
- Please refer to the precautions for using welding electrodes
Applicable Industries
- Suitable for fillet welding in shipbuilding, steel structures and mechanical equipment

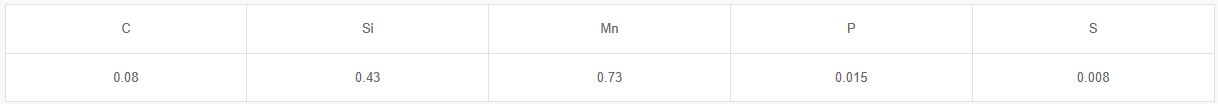

An example of the chemical composition of molten gold (wt%)
.png)

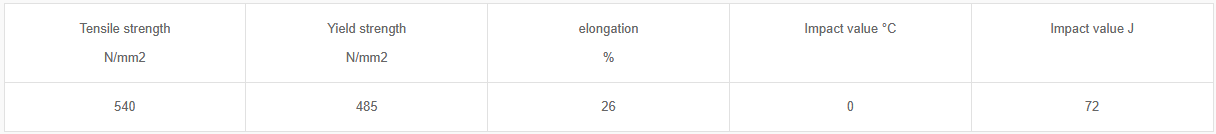

An example of the machine properties of molten gold
.png)

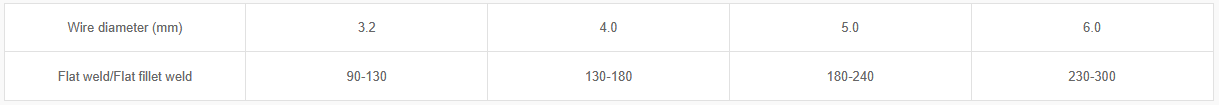

Production Specifications and Applicable Current Range (AC/DC±)
.png)
