KT-411 Welding Rods

Penerangan

KT-411
These are AC/DC welding electrodes for pipeline welding, suitable for welding high-pressure pipelines, oil tanks, boilers, and outdoor welding

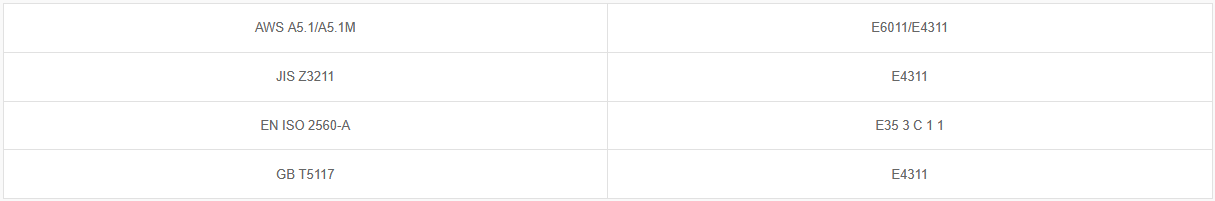

Applicable Standards


Characteristics and Applications

• High cellulose-based welding electrodes for mild steel.
• Excellent radiographic testing performance and easy operation for root pass welding.
• It has fast slag solidification, low slag content, good slag removal properties, and high penetration power.
• Suitable for welding workpieces with rust, oil, or galvanized coatings, and less prone to porosity and slag inclusion defects.
• Suitable for locations that are difficult to weld, such as high-pressure pipelines, ships, oil tanks, boilers and narrow seams

Welding Posture


Precautions of Use
- Please refer to the precautions for using welding electrodes

Applicable Industries
- Suitable for locations that are difficult to weld, such as high-pressure pipelines, ships, oil tanks, boilers and narrow seams

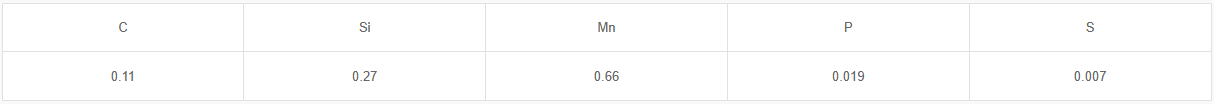

An example of the chemical composition of molten gold (wt%)

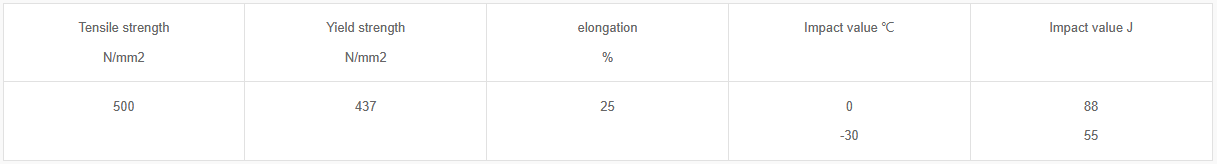

An example of the machine properties  of molten gold

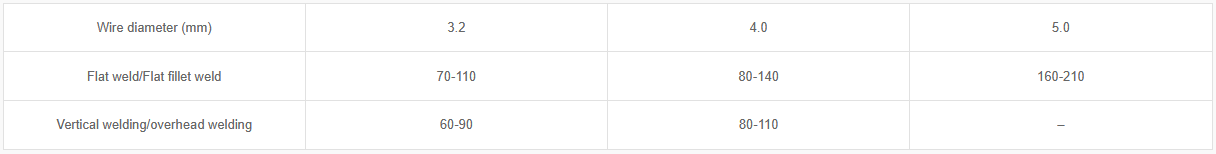

Production Specifications and Applicable Current Range (AC/DC±)
