Standard X-axis Precision Screw Manual Translation Stage (MCAX Series)

Penerangan

Model :


• MCAX25-L, MCAXY25-L, MCAX25-R



• MCAXY25-R, MCAZ25-R, MCAZ25-L



• MCAXZ25-L, MCAXYZ25-L, MCAXYZ25-R, MCAXZ25-R



• MCAX40-L, MCAX40-R, MCAXY40-L



• MCAXY40-R, MCAZ40-R, MCAZ40-L



• MCAXZ40-L, MCAXYZ40-L, MCAXYZ40-R, MCAXZ40-R



• MCAX60-L, MCAXY60-L, MCAX60-R



---

Features :


• The MCAX series translation stages are economical manual translation stages independently developed by our company.
• They are constructed primarily of aluminum alloy, driven by precision screws, and feature an anodized surface treatment for excellent rust resistance.
• The load capacity values  are for reference only. They may not be suitable for use under conditions of vibration, high loads, or other loads.
• Instructions: Loosen the locking knob, adjust the drive mechanism (precision screw) to the desired position, and then tighten the locking knob.



---

Dimension :

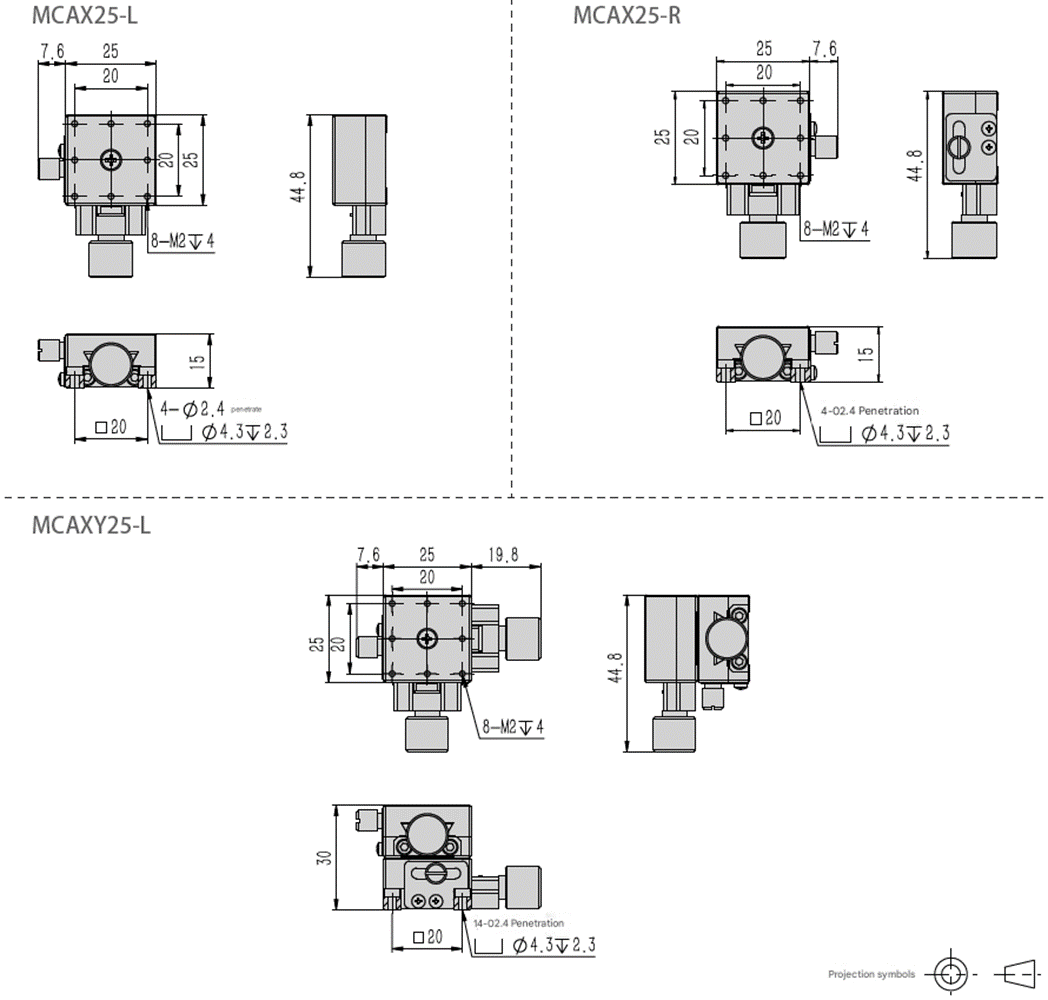

• MCAX25-L, MCAXY25-L, MCAX25-R



• MCAXY25-R, MCAZ25-R, MCAZ25-L

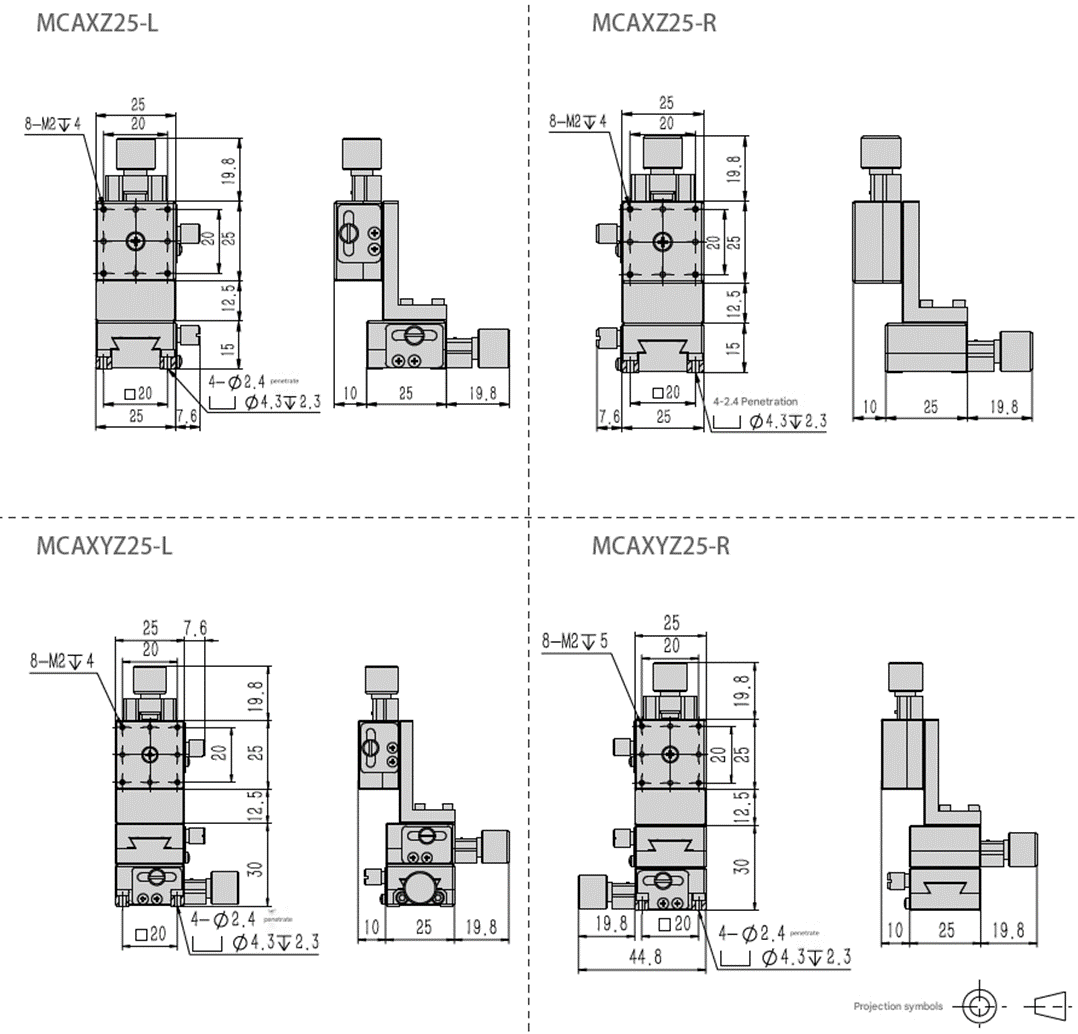

• MCAXZ25-L, MCAXYZ25-L, MCAXYZ25-R, MCAXZ25-R



• MCAX40-L, MCAX40-R, MCAXY40-L

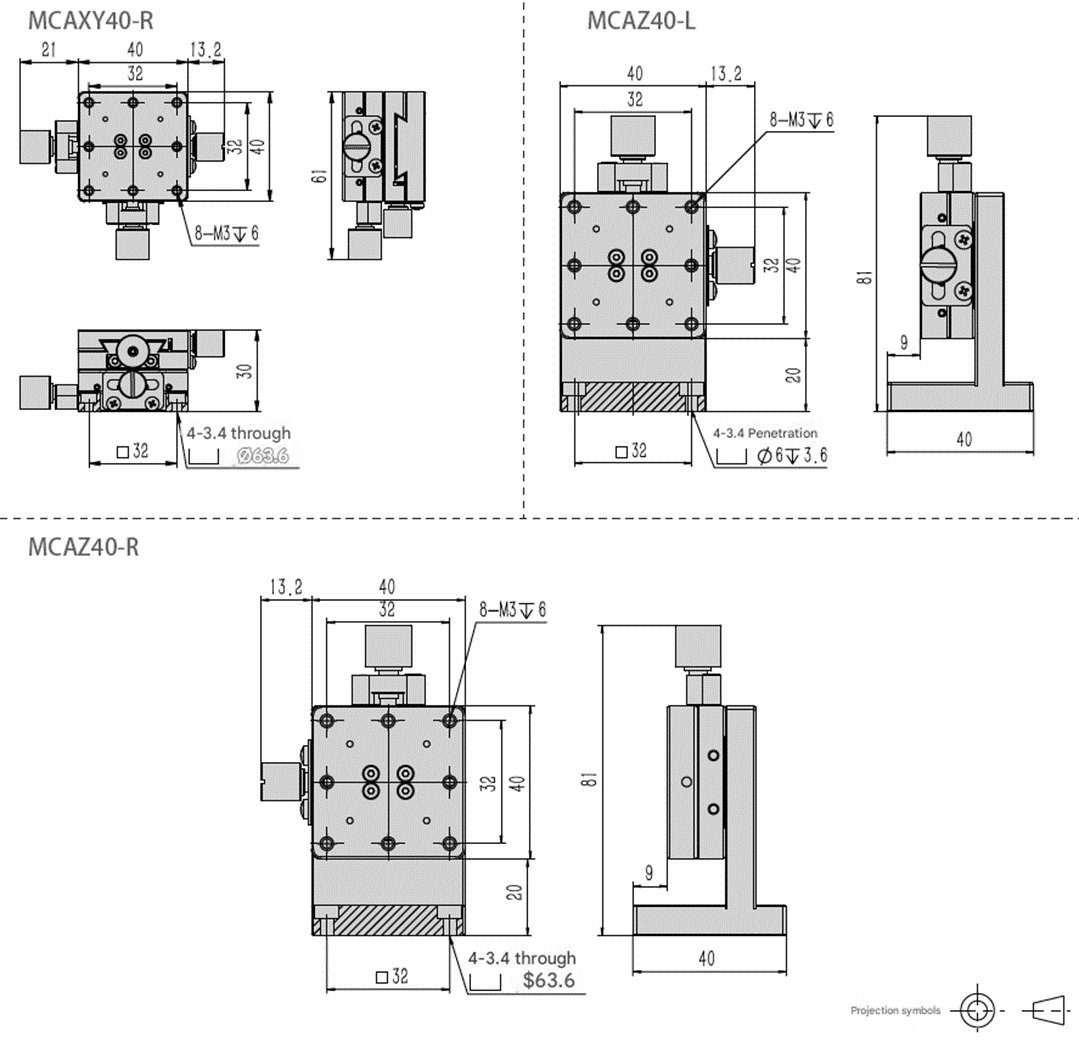

• MCAXY40-R, MCAZ40-R, MCAZ40-L

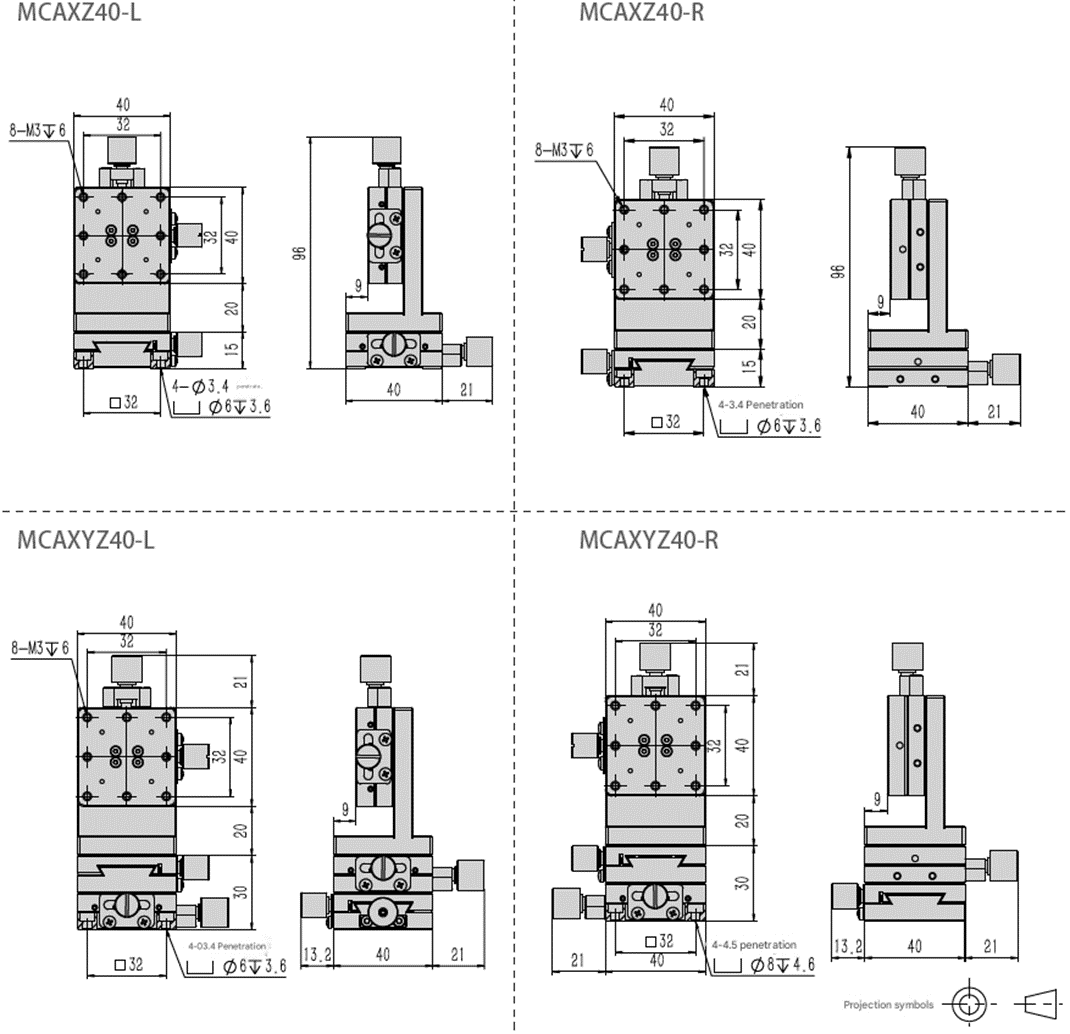

• MCAXZ40-L, MCAXYZ40-L, MCAXYZ40-R, MCAXZ40-R

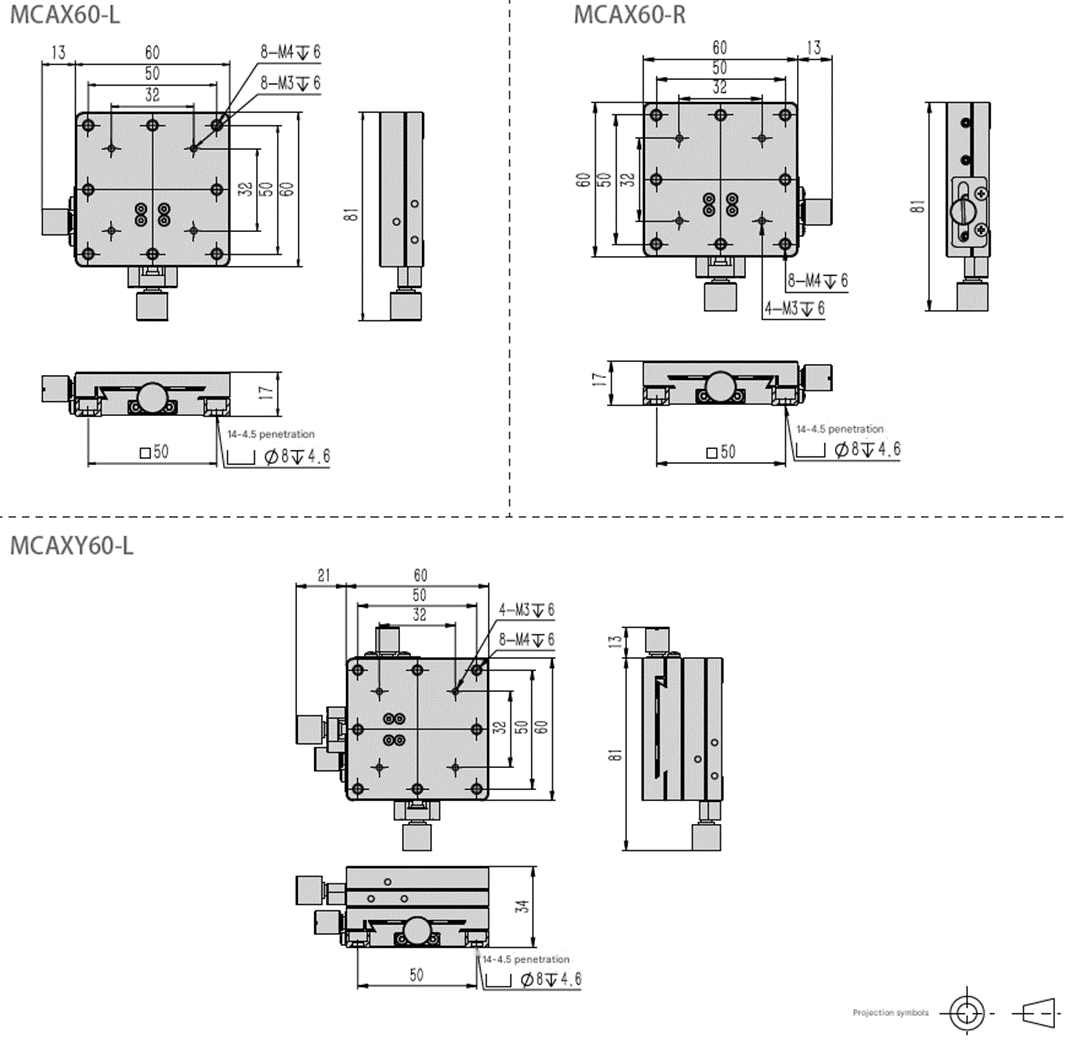

• MCAX60-L, MCAXY60-L, MCAX60-R



---

Specifications :



• MCAX25-L, MCAXY25-L, MCAX25-R

Model	MCAX25-L	MCAX25-R	MCAXY25-L
Moving direction	X-axis		XY-axis
Main material	Aluminum alloy (black anodized)
Drive mode	Precision screw
Countertop size	25mm×25mm
Countertop thickness	15mm		30mm
Journey	±5mm
Load	29. 4N (3kgf)
Minimum scale	0.01mm
Moving parallelism	≤0.02mm/10mm
Parallelism	0.03mm		0.06mm
Body Weight	0.03kg		0.06kg



• MCAXY25-R, MCAZ25-R, MCAZ25-L

Model	MCAXY25-R	MCAZ25-L	MCAZ25-R
Moving direction	XY axis	Z axis
Main material	Aluminum alloy (black anodized)
Drive mode	Precision screw
Countertop size	25mm×25mm
Countertop thickness	30mm	/	/
Journey	±5mm
Load	29. 4N (3kgf)	9.8N (1kgf)
Minimum scale	0.01mm
Moving parallelism	≤0.02mm/10mm	/	/
Parallelism	0.06mm	/	/
Body Weight	0.06kg	0.05kg



• MCAXZ25-L, MCAXYZ25-L, MCAXYZ25-R, MCAXZ25-R

Model	MCAXZ25-L	MCAXZ25-R	MCAXYZ25-L	MCAXYZ25-R
Moving direction	XZ axis		XYZ axis
Main material	Aluminum alloy (black anodized)
Drive mode	Precision screw
Countertop size	25 mm × 25 mm
Journey	±5 mm
Load	9.8N (1kgf)
Minimum scale	0.01 mm
Moving parallelism	≤ 0.02 mm / 10 mm
Body Weight	0.08 kg		0.11 kg

• MCAX40-L, MCAX40-R, MCAXY40-L

Model	MCAX40-L	MCAX40-R	MCAXY40-L
Moving direction	X-axis		XY axis
Main body material	Aluminum alloy (black anodized)
Drive mode	Precision screw
Countertop size	40 mm × 40 mm
Countertop thickness	15mm		30mm
Stroke	±7mm
Load	29.4N (3kgf)
Minimum scale	0.01 mm
Moving parallelism	≤ 0.02 mm / 10 mm
Parallelism	0.03mm		0.06mm
Body Weight	0.07kg		0.14kg



• MCAXY40-R, MCAZ40-R, MCAZ40-L

Model	MCAXY40-R	MCAZ40-L	MCAZ40-R
Moving direction	XY axis	Z axis
Main body material	Aluminum alloy (black anodized)
Drive mode	Precision screw
Countertop size	40 mm × 40 mm
Countertop thickness	30mm	/	/
Journey	±7mm
Load	29.4N (3kgf)	19. 6N (2kgf)
Minimum scale	0.01 mm
Moving parallelism	≤ 0.02 mm / 10 mm	/	/
Parallelism	0.06mm	/	/
Body Weight	0.14kg	0. 15kg




• MCAXZ40-L, MCAXYZ40-L, MCAXYZ40-R, MCAXZ40-R

Model	MCAXZ40-L	MCAXZ40-R	MCAXYZ40-L	MCAXYZ40-R
Moving direction	XZ axis		XYZ axis
Main body material	Aluminum alloy (black anodized)
Drive mode	Precision screw
Countertop size	40 mm × 40 mm
Countertop thickness	30mm
Journey	±7mm
Load	19. 6N (2kgf)
Minimum scale	0.01 mm
Moving parallelism	≤ 0.02 mm / 10 mm
Body Weight	0.29kg		0. 22kg



• MCAX60-L, MCAXY60-L, MCAX60-R

Model	MCAX60-L	MCAX60-R	MCAXY60-L
Moving direction	X-axis		XY axis
Main body material	Aluminum alloy (black anodized)
Drive mode	Precision screw
Countertop size	60mm×60mm
Countertop thickness	17mm		34mm
Journey	±9mm
Load	39. 2N (4kgf)
Minimum scale	0.01 mm
Moving parallelism	≤ 0.02 mm / 10 mm
Parallelism	0.03mm		0.06mm
Body Weight	0.17kg		0.34kg




---
