Ultra Low Temperature Chamber

Ultra-low temperature chamber reaches -85°C

Application Area

Seasonal Differences and Climate Zones: Your products must be able to withstand various temperatures during manufacturing, transportation, storage, and usage. The environmental test chamber from Sonacme Technology will help you assess the effects of temperature and humidity on your products’ characteristics, functions, and lifespan under accelerated conditions.

Wide temperature range

SONACME Technology offers two models of ultra-low temperature test chambers, with temperature ranges of -85°C to +180°C and -75°C to +180°C. These chambers are widely used for temperature characteristic testing and low-temperature storage testing.




Structural Features

• The inner chamber is constructed from SUS#304 stainless steel with a thickness of 1.0 mm. It features a fully welded structure, ensuring excellent sealing and making it resistant to cracking.
• The exterior is made of cold-rolled plate with a thickness of 1.5 mm. It has undergone brushing, polishing, and painting treatments, making it resistant to scratches.
• The insulation material consists of polyurethane foam with a thickness of 100 mm.
• The door seal is made from double silicon rubber for enhanced sealing effectiveness.
• The observation window is made of four layers of tempered glass, and you can choose the size according to your needs.
• To prevent frosting on the observation window during low-temperature operation, we have installed heating wires inside to facilitate defrosting.

Refrigeration System

• Compressors are equipped with renowned brands such as Tecumseh (made in France), Bitzer, and GEA BOCK (made in Germany).

• They feature a shock absorption and noise reduction system that slows down vibration and protects the compressor.

• The innovative pipe-bending technology minimizes connector points, allowing for more efficient refrigerant flow.

• Durable solenoid valves from Denmark's DANFOSS and Japan's SAGINOMIYA enhance the overall reliability of the equipment.

• The MP10 module includes motor over-temperature protection (with LED indicator), exhaust temperature over-temperature protection (requires an optional temperature monitoring probe and LED indicator), a power indicator, and an alarm function.

Electrical System

• The overall layout of the circuit cabinet is very neat and professional. Our circuits are arranged in accordance with UK standards and come with complete circuit diagrams. Each line is assigned a unique code that is clearly defined, making it easy to locate for troubleshooting.

• We use electrical components from world-renowned brands, including Schneider from France, Carlo Gavazzi from Switzerland, Mitsubishi from Japan, and Rainbow from Korea.

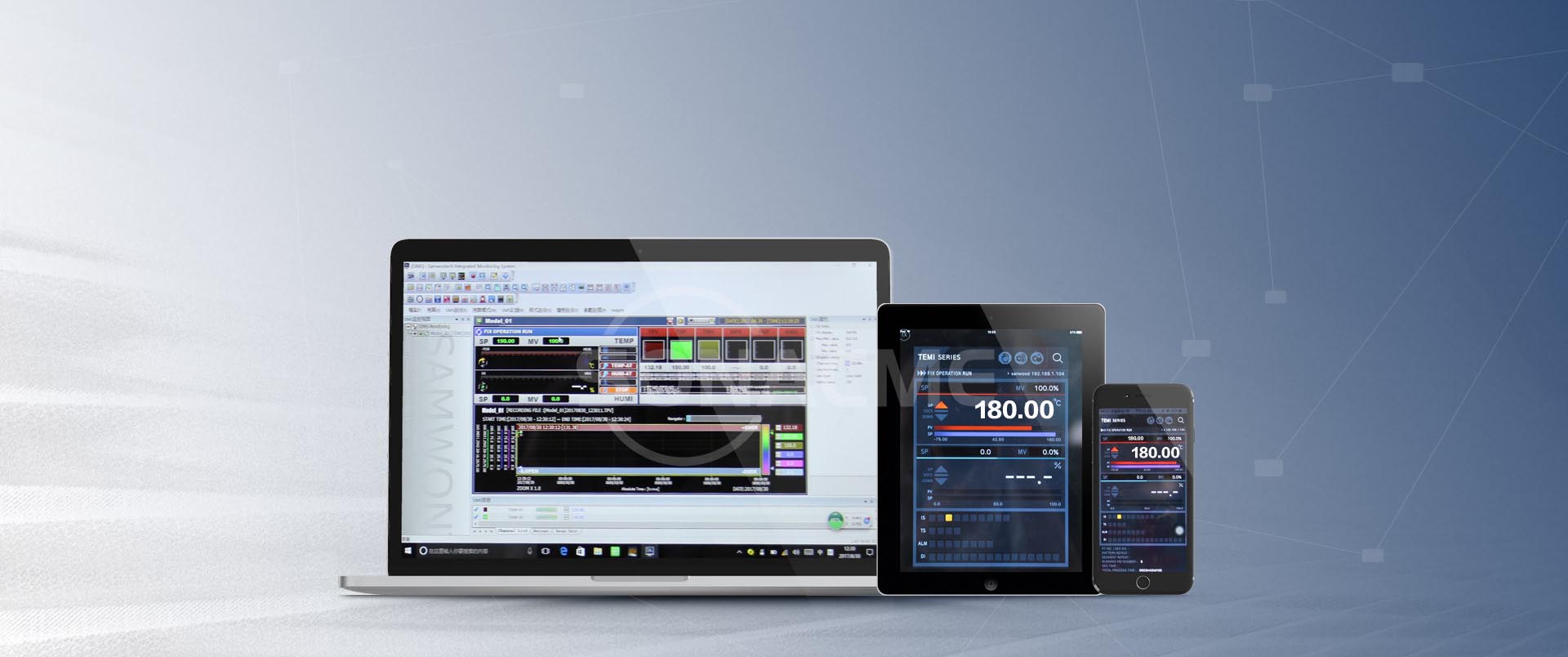

We Apply The Controller Developed By SONACME

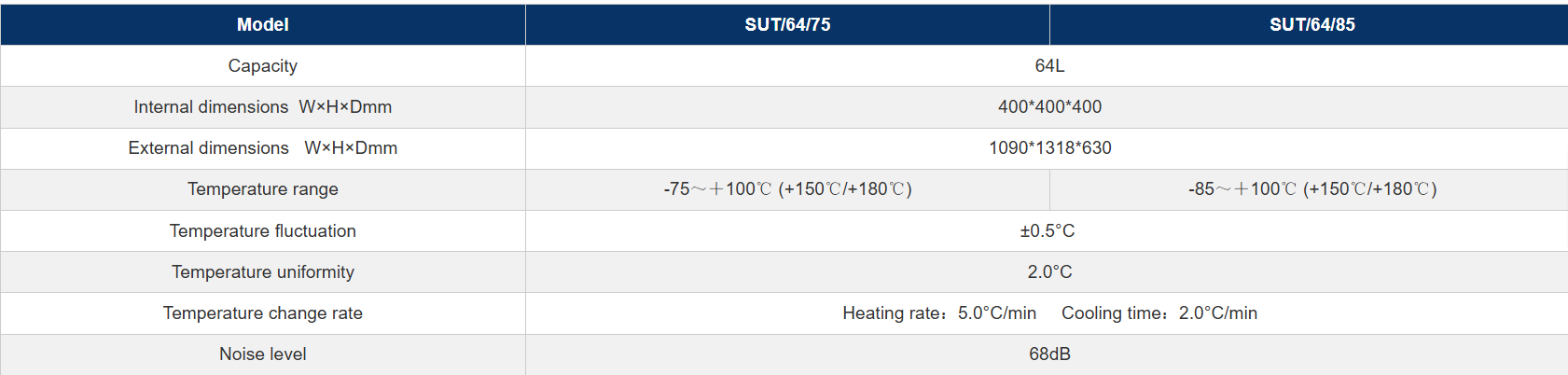

Specifications
