TH9201/TH9201S

Hipot Tester
Voltage: AC 0.05-5KV, DC 0.05-6KV
Current: AC 0.001mA-30mA, DC 0.1uA-10mA
Insulation Resistance: 0.1MΩ-50GΩ
Single Channel/Eight Channel

Product description

■ TH9201S:8-channel scanning AC/DC withstanding voltage & insulation tester

TH9201/TH9201B: AC/DC withstanding voltage & insulation tester

■ 240×64 Dot-matrix graphic LCD display

■ Fast discharge and arc detection function

■ Body protection function

■ Built-in 8-channel matrix scanner for convenient use

■ Set voltage rising time, test time, and voltage dropping time randomly for different load, DC withstanding voltage current judging & waiting time

■ 100 test steps being stored per group, totally 50 groups, and the total testing steps are limited at 500

■ Current base number correction function

■ Brand new operation interface and humanized panel design

■ Abundant interfaces Handler, RS-232C, SCAN, GPIB(optional)

■ TH9201 series AC/DC withstanding voltage & insulation tester is a kind of Hipot Tester. Due to simple and compact structure, mature technique, brand new structure and operating interface, the operation becomes more convenient, and more practical functions are included as well. TH9201 series can be widely applied in transformer,device, component especially for winding safety inspection.

Model		TH9201	TH9201S	TH9201B
Withstanding voltage test
Output Voltage	AC	0.05kV—5kV±(1.0% of reading+5 digit) (50、60Hz optional)
	DC	0.05kV—6kV±(1.0% of reading+5 digit)
	Voltage Adjustment Rate	≤(1.0% +10V)（rated power）
Current Test Range	AC	0.1mA - 30mA		0.1mA - 20mA
	DC	0.01mA - 10mA		0.01mA - 5mA
	Test Accuracy	±(1.0% of reading+5 digit)
	Discharge Function	Discharge after test ends（DCW）
Insulation Resistance Test
Output Voltage		0.05kV - 1kV±(1.5% of reading+5V)
Resistance Test Tange		0.1MΩ -10GΩ，(Current range within 10nA-10mA)
Resistance Test Accuracy	500V-1000V	1MΩ - 1GΩ ±(5% of reading +5 digit) 1GΩ - 10GΩ ±(10% of reading +5 digit)
	50V-500V	0.1MΩ - 1GΩ ±(10% of reading +5 digit)
Discharge Function		Discharge after test ends
Arc Detection
Measurement Range	AC	1mA - 15mA
	DC	1mA - 10mA		1mA - 5mA
General Specification
8-channel Matrix Scanner		------	available	------
Memory		50groups, 100 steps per group, totally 500 steps
Voltage Rise-time		0.1s - 999s
Voltage Fall-time		0.1s - 999s
Voltage Wait-time		0.1s - 99.9s (only for DC)
Test Time Setting		0.3s - 999s
Interface
Standard		RS232，USB,HANDLER，REMOTE I/O ，SCAN
Options		GPIB

Accessories name

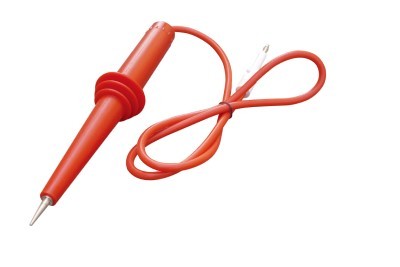

High voltage test rod

High Voltage Test Cable (Black)

High voltage test cable (red)

Optional
Accessories name	Model
