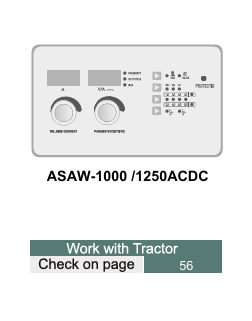

ASAW-1000 /1250 SAW Welding Machine (AC DC)

ASAW-ACDC series applies IGBT soft switch technology, enjoy reasonable static characteristic and sound dynamic characteristic. It can perform carbon steel, stainless steel, heat resistant steel, and alloy steel welding. It has AC square wave submerged arc welding characteristic.

• High-power plates welding: weld plates thicker than 3mm
• Multiple SAW modes: single-wire, twin-wire single-arc, SAW-AC, SAW-DC,
• Multiple processes: MMA, and gouging
• Multiple applicable SAW tractors with digital control: thick-wire (φ3.0-φ6.0) tractor, thin-wire (φ2.0-φ2.4) tractor
• Wide application range: applicable for matching with automation equipment or forming the TANDEM system CC&CV characteristics
• SAW process: arc starting current, arc starting time, slow wire feeding speed, arc slopping current, arc stopping voltage, arc stopping time, and burn back time are adjustable Controllable AC square waveform output: AC frequency, duty cycle, DC bias, and others can be adjusted to control welding penetration and deposition rate
• Safe control design: to protect the SAW tractor from overturning
• Save and recall: 10 sets of welding parameters
• Eco design: intelligent fan control technology
• Multiple protections: against overheating, over-current, over-voltage, and output short-circuiting; error code display
