Applications
Fast assembly
- SuperJet filters are factory-assembled as standard with a top part, filter body and bottom part, which can be quickly assembled and erected - or of course supplied separately. It is assembled using bolts in high tension steel with integrated washers, significantly reducing assembly time and the risk of over-tightening bolt assemblies.
Surface
- Galvanised sheet, class Z 275 - zinc plating min. 275 g/m² double-sided.
Inlet
- The inlet is designed according to the "partial downflow" principle. Contaminated air is passed into the filter and hits a perforated plate which separates most of the dust particles, which settle downwards through the vertical square conduit. The air diffuses through the perforated plate and through the filter bags.
Cleaning system
- PowerPulse® cleaning with ECO-PowerPulse® filter control system.
Discharge system
- The SuperJet filter is supplied with scraper bottom with discharge to a single B-500 rotary valve, but can be increased to two discharges, B-500 or B-750. Also available with discharge to JK-50S and JK-75S.
ATEX
- The filter is fitted with approved explosion membranes. Choose between side venting or JKF’s specially developed VFV® explosion relief venting, which vents explosion pressure vertically through the filter top. The filters fulfil pressure shock-resistance according to EN 14460. Venting according to EN 14491.
- The filter is risk assessed in accordance with EN 1127-1 and CE-marked to have an internal zone 21 on the dirty side of the filter and zone 22 on the clean air side of the filter.
Operating range
- Pressure: +/- 5000 Pa
- Filter area: 172 - 269 m²
- Max. operating temperature: 65ºC
- Min. operating temperature: -20ºC (available for -40ºC)
Connection
Gear motor scraper bottom:
- 0.75 kW, 7.8 min-1, 3x400 V, 50 Hz, 2.7 A
Inductive sensor scraper bottom:
ECO-PowerPulse® filter control system:
- 0.3 kW, 3×400 V, 50 Hz, 1.1 A (16 A)

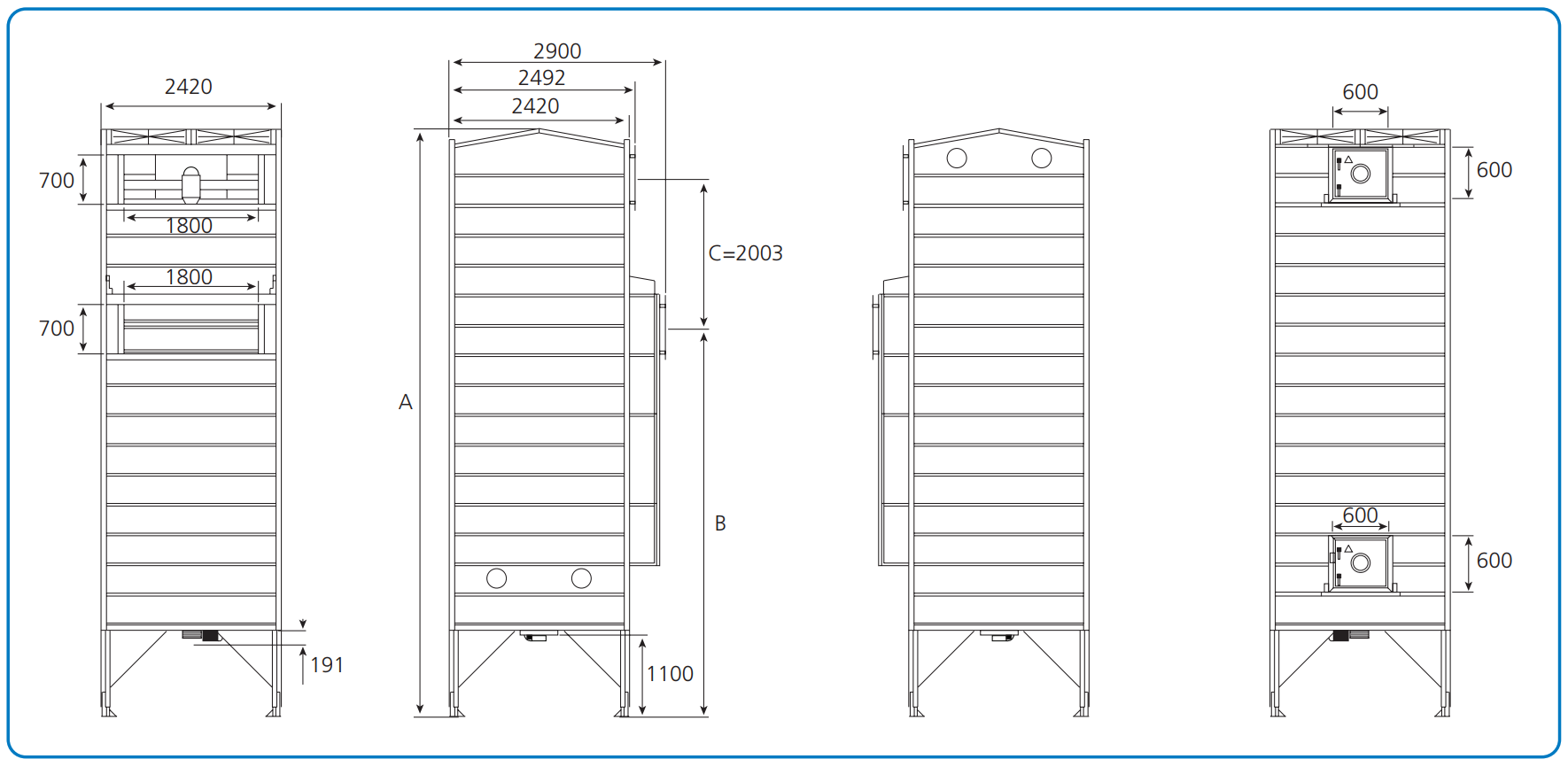

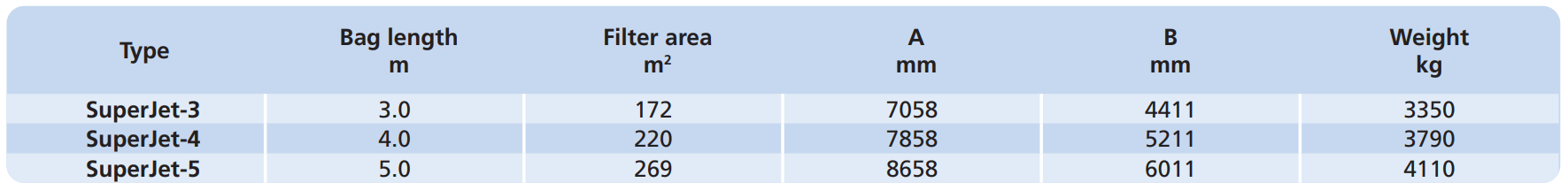

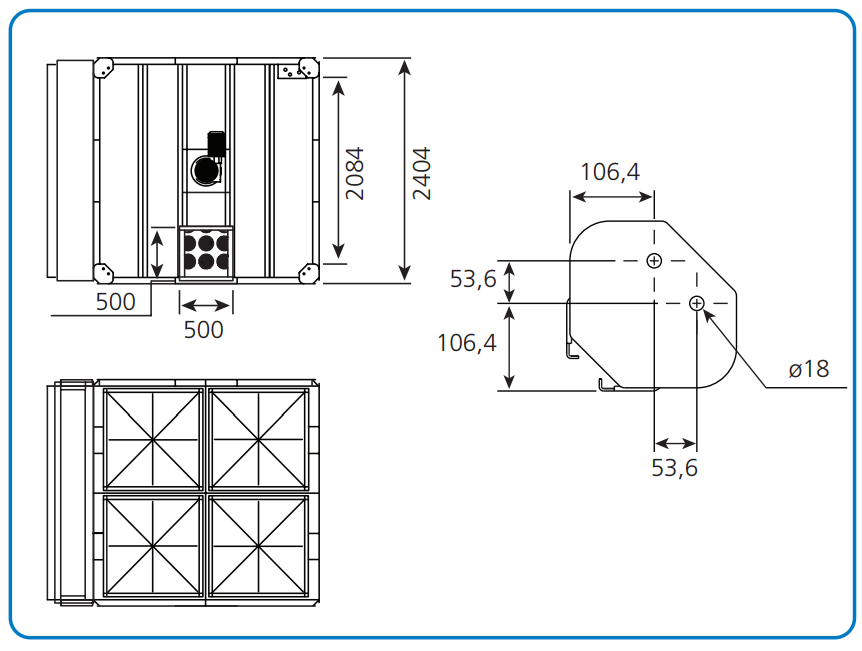

Dimensions
The SuperJet filters are under- and over-pressure filters designed to run in constant operation. The SuperJet filter is made of high tensile steel to ensure strength combined with low weight.
The filter is self-supporting with adjustable legs, and can be erected outdoors or in.
