Bowman Hydraulic Oil Coolers are engineered for superior performance across a wide range of hydraulic systems. With precision UK manufacturing, efficient heat dissipation, and durable construction, these coolers ensure reliable operation even under demanding industrial, marine, and mining conditions. Easy integration, high thermal efficiency, and long-lasting durability make Bowman coolers the trusted choice for gearboxes, power packs, cranes, hydraulic presses, injection moulding machinery, and marine applications such as thrusters, stabilisers, and winches.
.png)

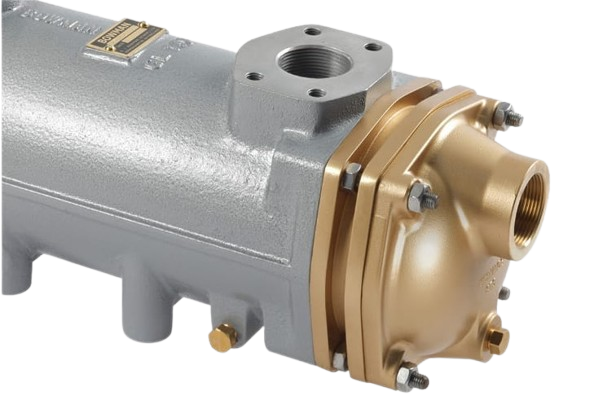

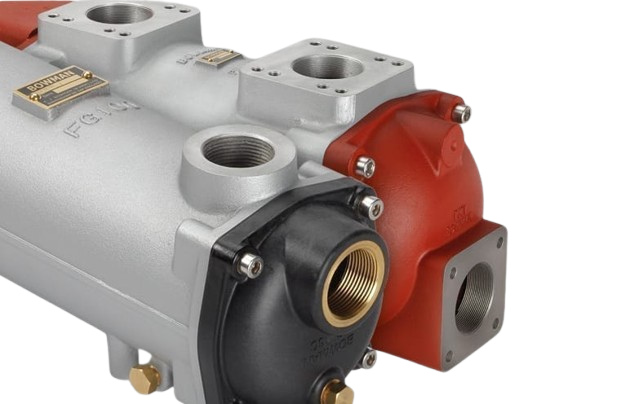

Land-based units have cast iron end covers; marine units use marine specification end covers.

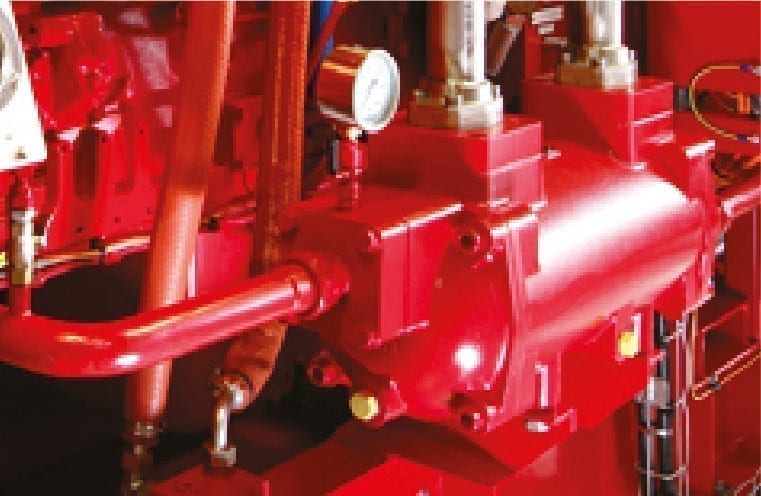

Standard products cool oil up to 120 °C; optional units handle up to 200 °C.

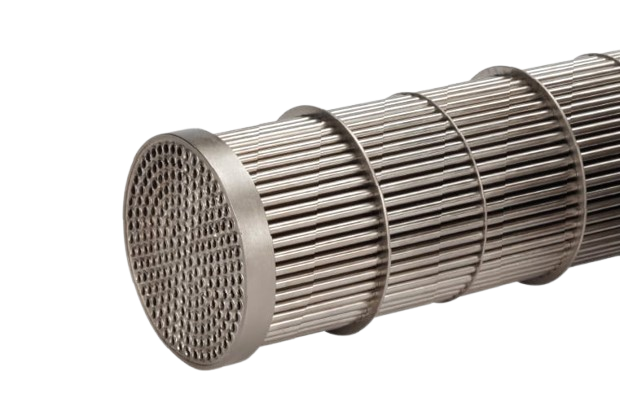

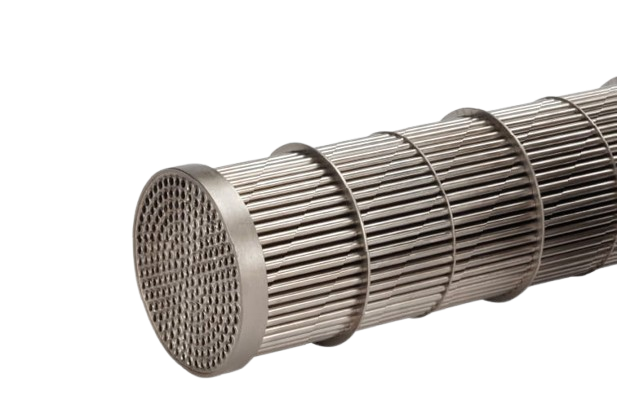

Standard cupronickel tubes; titanium tubes available as options.
GL size units and above have SAE oil flange connections; smaller models feature BSP connections.

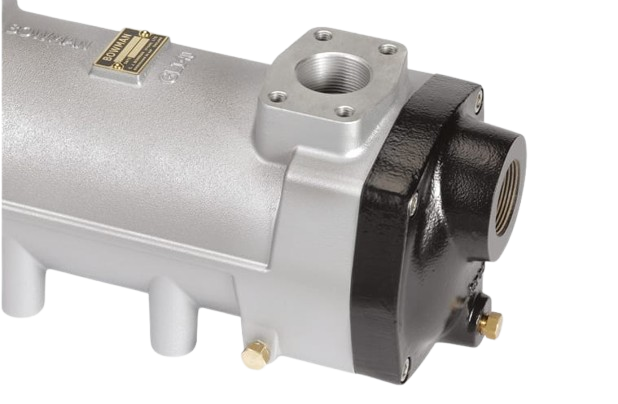

Suitable for underground mining with water pressures up to 35 bar.
Sealing rings allow easy service without draining hydraulic circuits.
| Type | Heat Dissipated (kW) | Dim. A (mm) | Dim. B (mm) | Dim. C (mm) | Weight (kg) | Industrial | Marine | Mining | High Temp (200 °C) |
|---|---|---|---|---|---|---|---|---|---|
| EC80 | 4 | 174 | 60 | 84 | 2.4 | ||||
| EC100 | 9 | 260 | 140 | 84 | 3.2 | ||||
| EC120 | 13 | 346 | 226 | 84 | 3.8 | ||||
| EC140 | 17 | 444 | 324 | 84 | 4.8 | ||||
| EC160 | 22 | 572 | 452 | 84 | 5.7 | ||||
| FC80 | 13 | 272 | 116 | 108 | 5.5 | ||||
| FC100 | 19 | 358 | 202 | 108 | 6.3 | ||||
| FC120 | 26 | 456 | 300 | 108 | 7.3 | ||||
| FC140 | 35 | 584 | 428 | 108 | 9.4 | ||||
| FC160 | 45 | 730 | 574 | 108 | 11.0 | ||||
| FG80 | 28 | 374 | 196 | 128 | 8.5 | ||||
| FG100 | 37 | 472 | 294 | 128 | 10.0 | ||||
| FG120 | 50 | 600 | 422 | 128 | 12.0 | ||||
| FG140 | 62 | 746 | 568 | 128 | 14.5 | ||||
| FG160 | 79 | 924 | 746 | 128 | 17.5 | ||||
| FG200 | 123 | 1330 | 1152 | 128 | 24.0 | ||||
| GL140 | 56 | 502 | 272 | 162 | 18.0 | ||||
| GL180 | 73 | 630 | 400 | 162 | 21.0 | ||||
| GL240 | 93 | 776 | 546 | 162 | 25.0 | ||||
| GL320 | 114 | 954 | 724 | 162 | 30.0 | ||||
| GL400 | 146 | 1156 | 926 | 162 | 36.0 | ||||
| GL480 | 172 | 1360 | 1130 | 162 | 42.0 | ||||
| GK190 | 112 | 674 | 370 | 198 | 34.0 | ||||
| GK250 | 144 | 820 | 516 | 198 | 39.0 | ||||
| GK320 | 181 | 998 | 694 | 198 | 46.0 | ||||
| GK400 | 221 | 1200 | 896 | 198 | 54.0 | ||||
| GK480 | 259 | 1404 | 1100 | 198 | 62.0 | ||||
| GK600 | 329 | 1708 | 1404 | 198 | 74.0 | ||||
| JK190 | 145 | 704 | 340 | 232 | 58.0 | ||||
| JK250 | 186 | 850 | 486 | 232 | 66.0 | ||||
| JK320 | 232 | 1028 | 664 | 232 | 78.0 | ||||
| JK400 | 283 | 1230 | 866 | 232 | 92.0 | ||||
| JK480 | 335 | 1434 | 1070 | 232 | 105.0 | ||||
| JK600 | 401 | 1738 | 1374 | 232 | 126.0 | ||||
| PK190 | 212 | 754 | 330 | 278 | 81.0 | ||||
| PK250 | 270 | 900 | 476 | 278 | 94.0 | ||||
| PK320 | 336 | 1078 | 654 | 278 | 110.0 | ||||
| PK400 | 410 | 1280 | 856 | 278 | 130.0 | ||||
| RK250 | 355 | 950 | 506 | 326 | 140.0 | ||||
| RK320 | 430 | 1128 | 684 | 326 | 165.0 | ||||
| RK400 | 520 | 1330 | 886 | 326 | 190.0 |
* Performance and dimensions are typical. For detailed configurations, please download the product brochure or contact our technical team.
