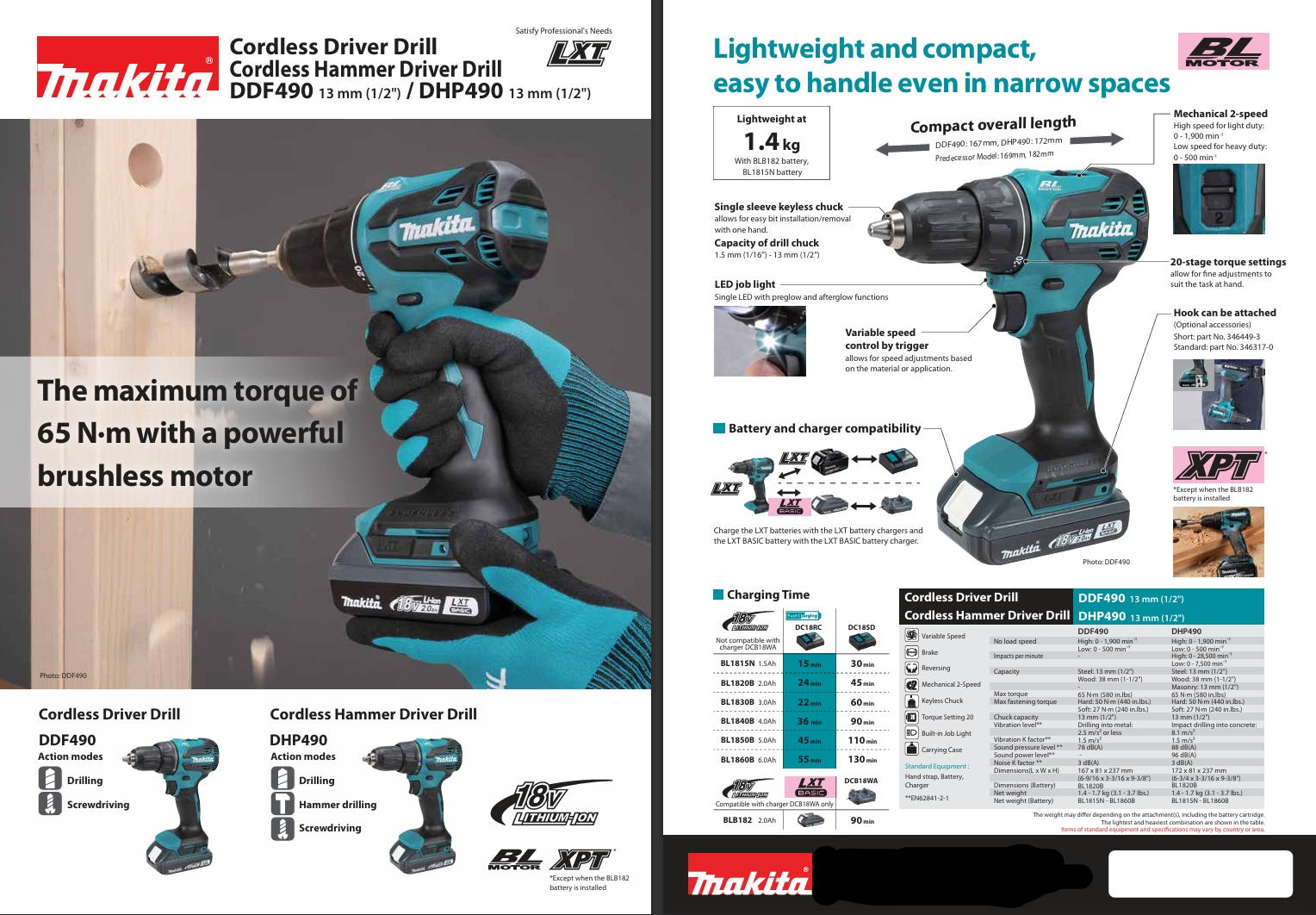

DHP490
Lithium-ion Extreme Techology Brushless Motor Extreme Protection Technology
Cordless Hammer Driver Drill
18V LXT Brushless Cordless 13 mm (1/2″) 65 N·m (580 in.lbs) Hammer Driver Drill
Overview:
-The DHP490 is a cordless hammer driver drill powered by an 18V LXT Li-Ion battery. Equipped with a powerful brushless motor, the tool delivers the maximum torque of 65 N·m. With its lightweight and compact design, the tool is easy to handle even in narrow spaces.
-The brushless motor provides longer work hours per charge and extended tool life.
-Provides increased efficiency with the maximum no-load speed of up to 1,900 rpm.
-The 20-stage torque settings allow for fine adjustments to suit the task at hand.
-A mechanical 2-speed gearing allows for choosing between maximum rpm or higher torque.
-Three action modes are available: Drilling, Hammer drilling, and Screwdriving
-A single LED light with pre-glow and after-glow functions illuminate the work area.
-The variable speed trigger allows for speed adjustments based on the material or application.
-A convenient 13 mm (1/2″) keyless chuck for quick bit changes
-The ergonomically designed grip ensures comfortable handling.
-The reversing switch is conveniently located.
-Water-resistance compatible with XPT
-The hook allows for easy and convenient hanging of the tool.
-The battery protection circuit protects against overloading, over-discharging and over-heating.
No load speed:
High: 0 – 1,900 minˉ¹
Low: 0 – 500 minˉ¹
Impacts per minute:
High: 0 – 28,500 minˉ¹
Low: 0 – 7,500 minˉ¹
Capacity:
Masonry: 13 mm (1/2″)
Steel: 13 mm (1/2″)
Wood: 38 mm (1-1/2″)
Max torque:
65 N·m (580 in.lbs)
Max fastening torque:
Hard: 50 N·m (440 in.lbs.)
Soft: 27 N·m (240 in.lbs.)
Metal gear housing:
No
Chuck capacity:
13 mm (1/2″)
Vibration level (EN62841-2-1):
Impact drilling into concrete: 8.1 m/s²
Drilling into metal: 2.5 m/s² or less
Vibration K factor (EN62841-2-1):
Impact drilling into concrete: 1.5 m/s²
Drilling into metal: 1.5 m/s²
Sound pressure level (EN62841-2-1):
88 dB(A)
Sound power level (EN62841-2-1):
96 dB(A)
Noise K factor (EN62841-2-1):
3 dB(A)
Dimensions (L x W x H):
172 x 81 x 237 mm (6-3/4 x 3-3/16 x 9-3/8″)
Net weight:
1.4 – 1.7 kg (3.1 – 3.7 lbs.)
