Test ultra-thin coating thickness below 10μm
Eddy current measuring principle
Measure the anodic oxide layer thickness on aluminum

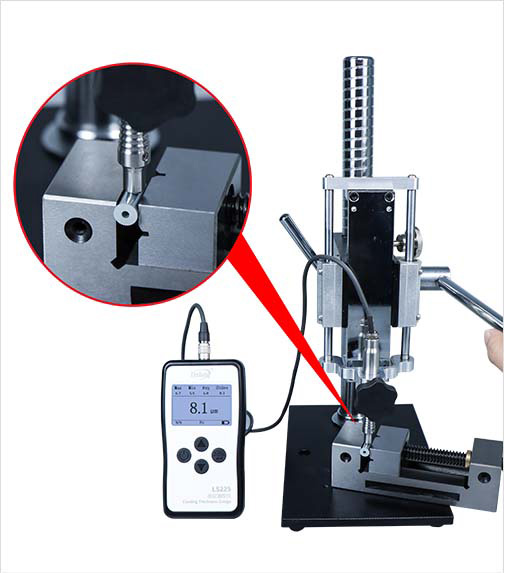

Measuring test with fixture.
LS225+N1500/ N2000 / F500 is a split type plating thickness tester, which consists of the host and the digital probe N1500. It adopts the eddy current induction principle and has ultra-high measurement accuracy and repeatability which is especially suitable for measuring ultra-thin coatings and various small-sized work pieces and special-shaped materials.
Multiple Type's of Probe
Feature
| Parameter | Value |
|---|---|
| Display | 240×160 dot matrix LCD |
| Power supply | 4pcs of 1.5V AAA alkaline battery |
| Operation temperaturerange | 0℃-50℃ |
| Storage temperaturerange | -20℃-60℃ |
| Host size | 148*76*26 mm (L*W*H) |
| Weight (include battery) | 194g |
| Parameter | Value |
|---|---|
| Measuring principle | Eddy current |
| Substrate | Non-ferromagnetic metal |
| Measuring range | 0.0-1500μm |
| Resolution | 0.1μm: 0μm - 99.9μm 1μm: 100μm - 999μm 0.01mm: 1.00mm – 1.50mm |
| Repeatability | ≤ ± (0.8%H+0.1μm) Test with fixture, H is the standard value |
| Accuracy | ≤±(2%H+0.3μm) after 5 points calibration, H is the standard value |
| Unit | μm / mil |
| Measuring interval | 0.8s |
| Minimum measuring area | Ø = 7mm |
| Minimum curvature | Convex:1.5mm / Concave:10mm |
| Minimum substrate thickness | 0.05mm |
| Calibration | Support zero reference adjustment and 1 to 5-points calibration |
| Probe size | 110*15 mm (Without connecting cable) |
| Probe weight | 81g |
