Torque Motor SDM264-120
Torque Motor SDM264-120



Torque Motor SDM264-120

SEM Equipment Sdn. Bhd. flag
Kategori: SERVOTOP Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di sem-eq.com
Lawati Laman Web Rasmi Hubungi kami
Penerangan




Model : SDM264-120

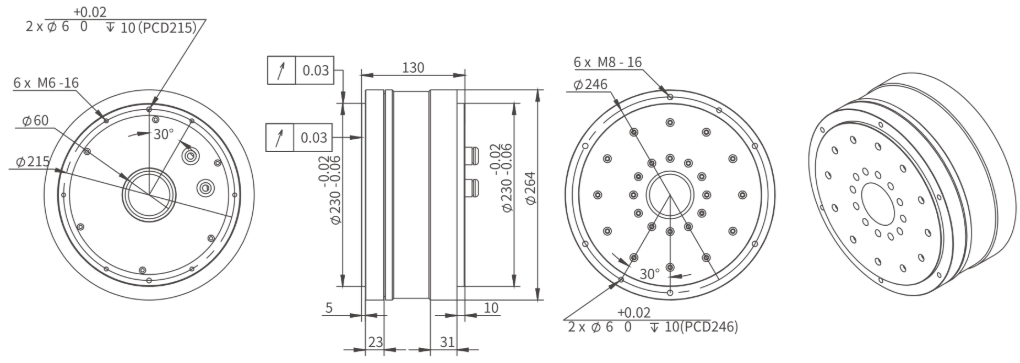

Dimension :






Specifications :

Model parameters Unit STP-SDM264-12011A31N-L005T-S06
Continuous torque ≥ Nm 60
Peak torque ≥ Nm 120
Continuous speed ≥ rpm 150
Peak speed ≥ rpm 200
Number of poles PCS 60
continuous current Arms 4.5
Thrust constant≥ Nm/Arms 13.3
Peak current Arms 13.5
Resistance ohm 10.1
Inductance mh 66.8
Absolute accuracy arcsec ±30
Repeat accuracy arcsec ±2
Axial force N 7000
Radial force N 6000
Coil maximum temperature °C 155
Quality kg 35
Moment of inertia of mover kg × m² 0.091
