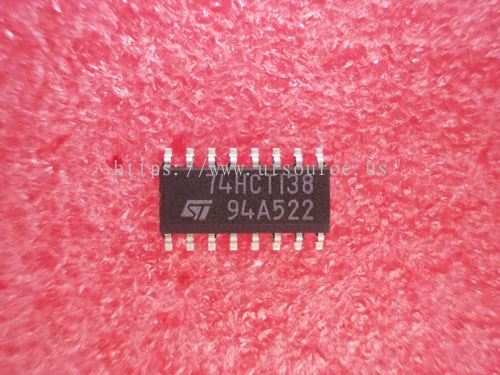

74HCT138

74HCT138

Kategori: Elec-component Tersedia (Kuantiti:9999999)
Untuk maklumat lanjut, lawati laman web rasmi kami di utsource.us

Penerangan

BUY 74HCT138 https://www.utsource.net/itm/p/1286127.html
3-to-8 line decoder/demultiplexer; inverting3-8/ ;

Parameter Symbol Min Typ Max Unit Conditions
Supply Voltage VCC 2.0 - 6.0 V
Input Low Voltage VIL - 0.8 1.5 V VCC = 4.5V to 5.5V
Input High Voltage VIH 2.0 3.5 - V VCC = 4.5V to 5.5V
Output Low Voltage VOL - 0.2 0.4 V IOL = 4mA
Output High Voltage VOH 2.4 3.4 - V IOH = -0.4mA
Input Leakage Current IIL - 1.0 20 μA VCC = 4.5V to 5.5V
Output Leakage Current IOL - 1.0 20 μA VCC = 4.5V to 5.5V
Propagation Delay Time tpd - 18 35 ns VCC = 4.5V to 5.5V
Power Dissipation PD - - 100 mW Per Package

Instructions for Using 74HCT138:

  1. Supply Voltage:

    • The 74HCT138 operates within a supply voltage range of 2.0V to 6.0V. Ensure that the supply voltage is stable and within this range to avoid damage or incorrect operation.
  2. Input Voltage Levels:

    • For reliable operation, input low voltages should be between 0.8V and 1.5V, and input high voltages should be between 2.0V and 3.5V when VCC is between 4.5V and 5.5V.
  3. Output Voltage Levels:

    • When the output is low, the voltage should not exceed 0.4V under a load current of 4mA.
    • When the output is high, the voltage should be at least 2.4V under a load current of -0.4mA.
  4. Leakage Current:

    • Input and output leakage currents should be kept below 20μA to ensure proper functioning of the device.
  5. Propagation Delay:

    • The typical propagation delay time is 18ns, with a maximum of 35ns. This is important for timing considerations in your circuit design.
  6. Power Dissipation:

    • The maximum power dissipation per package is 100mW. Ensure adequate heat dissipation if the device is operating near this limit.
  7. Pin Configuration:

    • Refer to the datasheet for the specific pin configuration of the 74HCT138. Common pins include:
      • VCC: Power supply
      • GND: Ground
      • E1, E2, E3: Enable inputs
      • A, B, C: Address inputs
      • Y0 to Y7: Output lines
  8. Enable Inputs:

    • The enable inputs (E1, E2, E3) control whether the outputs are active. All three must be low for the outputs to be active.
  9. Address Inputs:

    • The address inputs (A, B, C) select which output line will be active. The active output corresponds to the binary value of A, B, and C.
  10. Output Lines:

    • The 74HCT138 has eight output lines (Y0 to Y7). Only one output is active at a time, based on the address inputs and enable conditions.
  11. Handling:

    • Handle the 74HCT138 with care to avoid static damage. Use appropriate ESD protection measures during handling and installation.
  12. Storage:

    • Store the device in a dry, cool place to prevent moisture damage and ensure long-term reliability.

For more detailed information, refer to the official datasheet of the 74HCT138.
