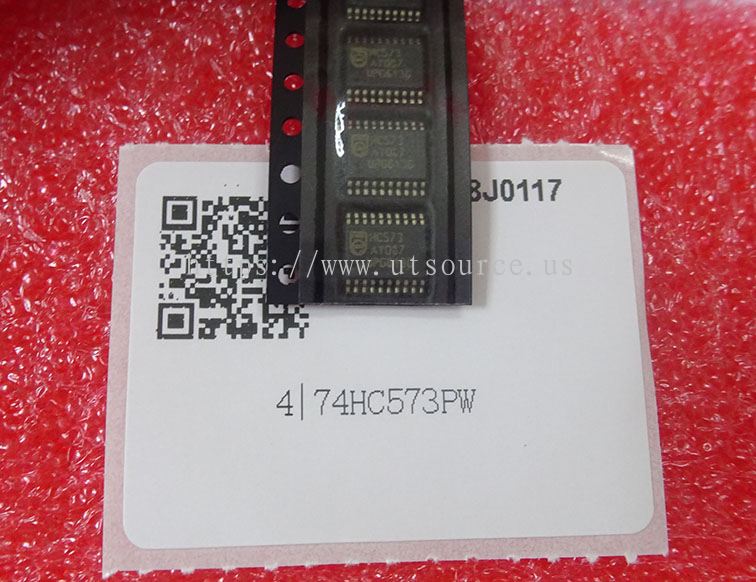

Octal D-type transparent latch; 3-state
Description:
The 74HC573PW is a high-speed CMOS logic octal D-type flip-flop with 3-state outputs. It is fabricated with silicon gate CMOS technology to achieve high speed operation and to minimize power dissipation.
Features:
High speed: tpd = 6.5 ns (typ.) at VCC = 5 V
Low power dissipation: ICC = 2 μA (max) at Ta = 25 °C
High noise immunity: VNIH = VNIL = 28 % VCC (min)
Output drive capability: 10 LSTTL loads
Balanced propagation delays: tPLH ≈ tPHL
Symmetrical output impedance: IOH = IOL = 4 mA (min)
Wide operating voltage range: VCC (opr) = 2 to 6 V
Low input current: 1 μA (max)
100 % tested for quiescent current at 20 V
Meets all requirements of JEDEC tentatively assigned EIA/JESD78C
Applications:
Bus-oriented systems
Memory address drivers
High speed line drivers
High speed clock drivers
High speed logic buffers
(For reference only)
