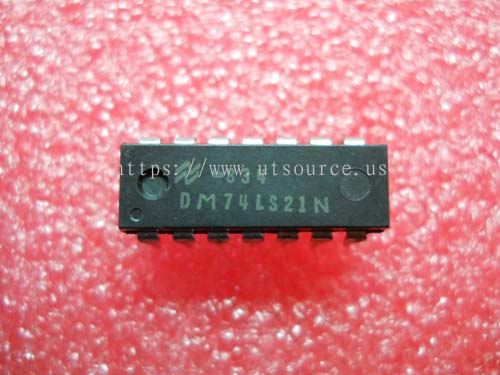

74LS21
74LS21



74LS21

Utsource Holding Company Limited flag
Kategori: Elec-component Tersedia (Kuantiti:9999999)
Untuk maklumat lanjut, lawati laman web rasmi kami di utsource.us
Lawati Laman Web Rasmi Hubungi kami
Penerangan

BUY 74LS21 https://www.utsource.net/itm/p/1308530.html
Dual 4-input Positive AND Gates

Parameter Symbol Conditions Min Typical Max Unit
Supply Voltage VCC Operating 4.75 - 5.25 V
Input Low Voltage VIL Input Low 0.0 - 0.8 V
Input High Voltage VIH Input High 2.0 - 5.0 V
Output Low Voltage VOL IOL = 16 mA 0.0 0.4 0.5 V
Output High Voltage VOH IOH = -0.4 mA 2.7 3.4 5.0 V
Propagation Delay Time tpd VCC = 5V, TA = 25°C 12 - 22 ns
Power Dissipation PD Per Package - - 100 mW
Operating Temperature Range TA - -40 - 85 °C

Instructions for Using 74LS21:

  1. Supply Voltage (VCC):

    • Ensure the supply voltage is within the range of 4.75V to 5.25V to avoid damage to the IC.

  2. Input Voltages:

    • For a logic low input, ensure the voltage is between 0V and 0.8V.
    • For a logic high input, ensure the voltage is between 2.0V and 5.0V.

  3. Output Voltages:

    • When the output is low, the voltage should not exceed 0.5V under a load of 16mA.
    • When the output is high, the voltage should be at least 2.7V under a load of -0.4mA.

  4. Propagation Delay Time (tpd):

    • The propagation delay time is the time it takes for the output to change state after the input changes. It should be between 12ns and 22ns at room temperature (25°C) with a 5V supply.

  5. Power Dissipation (PD):

    • The maximum power dissipation for the entire package is 100mW. Ensure proper heat dissipation if operating near this limit.

  6. Operating Temperature (TA):

    • The IC can operate in temperatures ranging from -40°C to 85°C. Ensure the operating environment is within these limits to prevent thermal stress.

  7. Handling:

    • Handle the IC with care to avoid static discharge, which can damage the internal circuits. Use proper ESD protection when handling the IC.

  8. Mounting:

    • Ensure the IC is securely mounted on the PCB and all pins are properly soldered to avoid poor connections.

  9. Testing:

    • Before final assembly, test the IC in a controlled environment to ensure it meets the specified parameters.

  10. Storage:

    • Store the IC in a dry, cool place away from direct sunlight and sources of heat.
(For reference only)
