AIRTAC 4M (NAMUR) Series Solenoid Valve (5/2 Way)
The AIRTAC 4M (NAMUR) Series Solenoid Valve is a high-performance valve designed for precision and reliability in pneumatic systems. Its robust features ensure long-lasting service and efficiency in diverse industrial applications.
Key Features:
Internally Piloted Structure: Offers efficient operation and reliability.
Sliding Column Design: Ensures excellent tightness and a sensitive response for smooth functionality.
Memory Function: The double control solenoid valve retains its last state for added convenience.
Advanced Internal Processing: Minimizes attrition and friction, enabling low start pressure and extended service life.
Oil-Free Lubrication: Eliminates the need for external oiling, simplifying maintenance.
Easy Installation: Side plate installation with upward-facing surface allows direct actuator connection.
Manual Override Devices: Facilitates easy installation and debugging processes.

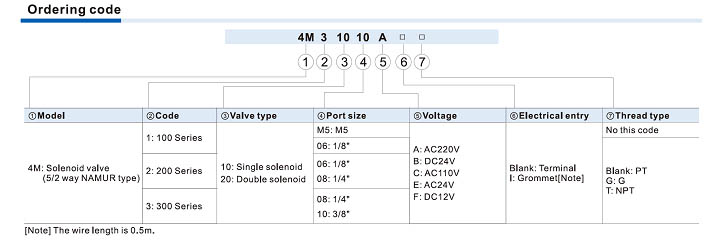

Voltage Options: Comes with several standard voltage grades to suit varied requirements.
Installation & Usage Guidelines:
Pre-Installation Check: Inspect the valve for any transport damage before installation.
Medium Filtration: Use a medium lubricated by a 40μm filter element for optimal performance.
Technical Compatibility: Ensure the installation meets technical specifications for voltage, actuation frequency, working pressure, and temperature range.
Flow Direction Awareness: Follow proper port connections:
P: Air intake
A/B: Work ports
R/S: Exhaust outlets
Vibration & Freezing Precautions: Take measures to prevent environmental factors like vibration or freezing from affecting performance.
Clean Connections: Verify cleanliness of fittings and tubes before assembly. Use PTFE Thread Seal Tape correctly.
Dust Protection: Employ silencers for exhaust ports and install dirt-proof boots on air intake and outlets during disassembly.
Post-Installation Testing: Use the manual override to test the valve's operation after installation.
Applications:
Ideal for industries requiring reliable pneumatic control, including manufacturing, automation, and industrial machinery.
Ensure proper installation and maintenance to maximize the longevity and efficiency of the AIRTAC 4M (NAMUR) Series Solenoid Valve.
