'C' CONNECTOR / CLAMP

Product Description

The 'C' Copper Connector or also known as 'C' Copper Clamp is mainly designed to be used with a copper conductor. It has a high conductivity of up to 99% (I.A.C.S). The 'C' connector/clamp is made with 99.9% of high quality copper finished with tin-plated exterior at 3-microns least. It is dimpled and serrated to obtain a high pull out value and its edges chamfered to alllow further protection of the wires.

Product Specification

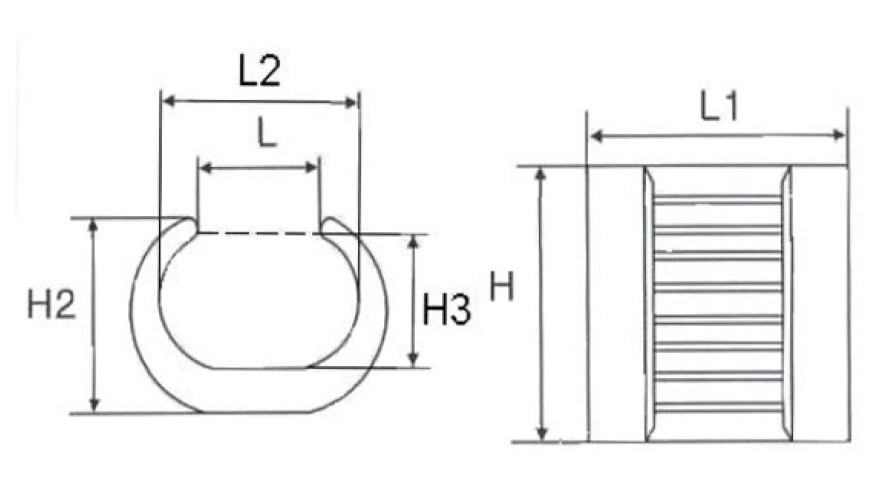

Item Code	Conductor Range (mm²)	L	L1	L2	H	H2	H3
DSSB-EA-CC-UT44	27 - 44	8.3	19	12.4	20	14	8.1
DSSB-EA-CC-UT60	45 - 60	10.8	21.4	15.3	22.5	15	10
DSSB-EA-CC-UT76	61 - 76	9.5	24	16.7	22.5	17	10.7
DSSB-EA-CC-UT98	77 - 98	14.5	28	21.2	25	19	13.4
DSSB-EA-CC-UT122	99 - 122	14	29.3	21.3	26	21	14.5
DSSB-EA-CC-UT154	123 - 154	17	35	23.8	28	25	17.2
DSSB-EA-CC-UT190	155 - 190	17	36.5	28.2	35	25	16.8
DSSB-EA-CC-UT240	191 - 240	20	40	30.2	40	29	21.3
DSSB-EA-CC-UT288	241 - 288	22	44	34.2	45	32	22.9
DSSB-EA-CC-UT365	289 - 365	27.5	48	37.6	0	34	24.2
DSSB-EA-CC-UT450	366 - 450	28	56.5	41.9	60	41	27.6

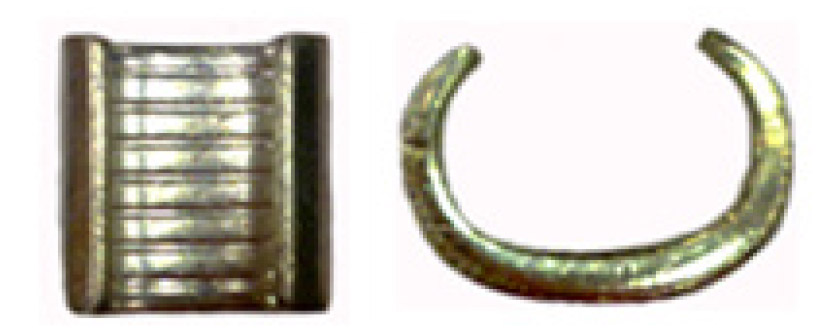

Product Image
