| Flushing System | : | Washdown | |
| Seat Cover | : | PP Seat Cover (2012) | |
| HO (P-Trap) (Project Available) | : | 180 mm | |
| BO (S-Trap) (Project Available) | : | 200 mm | |
| Trap System (Retail Stocks) | : | S-Trap 200mm | |
| Seat Cover Code | : | HWC010-001 | |
| Fitting Code | : |
CODE: HWC010-004 WDI B3800E (Inlet) WDI B4900 (Outlet) |
|
| Flushing Button | : | 3.8CM (6L/3L) | |
| Screw | : | WC Floor Mounting Screw | |

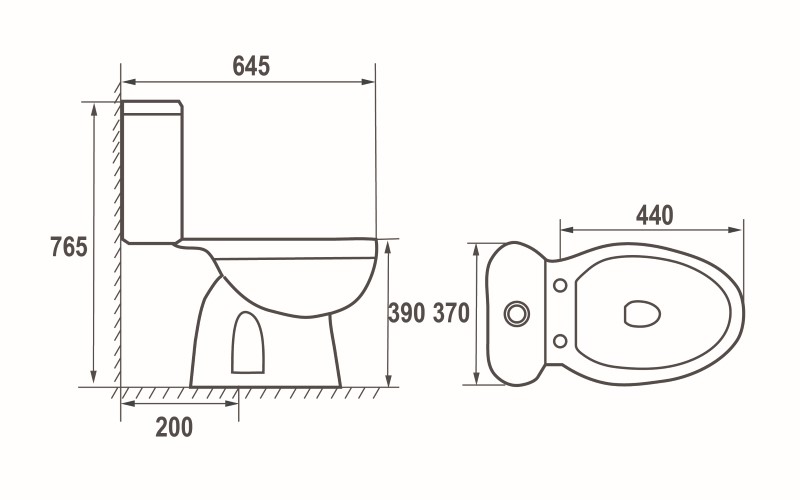

| Dimension (LxWxH mm) | : | 645 x 357 x 765 ± 30mm | |
| Unit CBM (m3) | : | 0.112 | |
| Product Weight (kg) | : | 27.58 ± 3kg | |
| Carton Packing | : | 1 Packing 5-Layer 6 side honey board | |
| Fitting Warranty | : | 2-Years |
| Flushing System | : | Washdown | |
| Seat Cover | : | PP Seat Cover (2012) | |
| HO (P-Trap) (Project Available) | : | 180 mm | |
| BO (S-Trap) (Project Available) | : | 200 mm | |
| Trap System (Retail Stocks) | : | S-Trap 200mm | |
| Seat Cover Code | : | HWC010-001 | |
| Fitting Code | : |
CODE: HWC010-004 WDI B3800E (Inlet) WDI B4900 (Outlet) |
|
| Flushing Button | : | 3.8CM (6L/3L) | |
| Screw | : | WC Floor Mounting Screw | |
| Dimension (LxWxH mm) | : | 645 x 357 x 765 ± 30mm | |
| Unit CBM (m3) | : | 0.112 | |
| Product Weight (kg) | : | 27.58 ± 3kg | |
| Carton Packing | : | 1 Packing 5-Layer 6 side honey board | |
| Fitting Warranty | : | 2-Years |
