Download Product Brochure - Ultrasonic Thickness Gauge/ Ultrasonic Wall Thickness

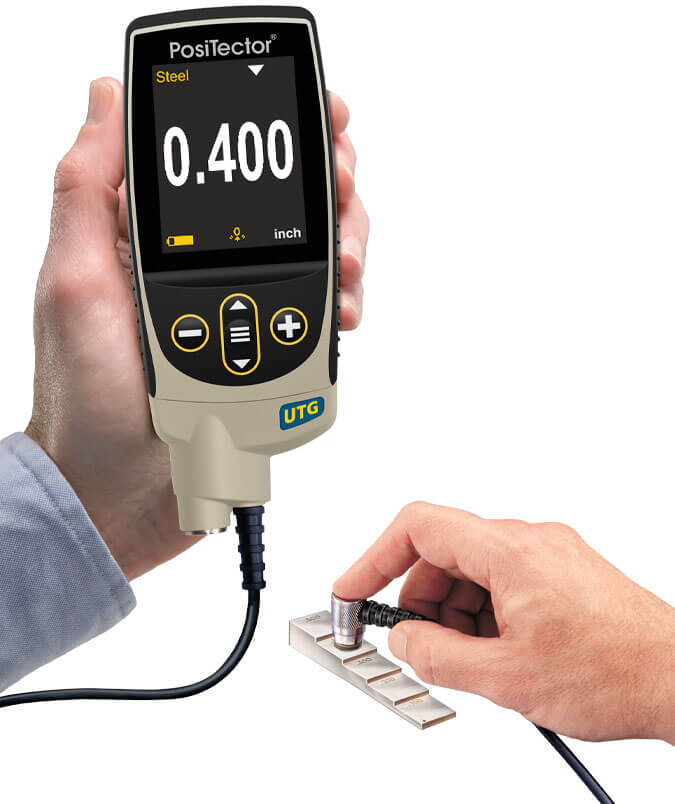

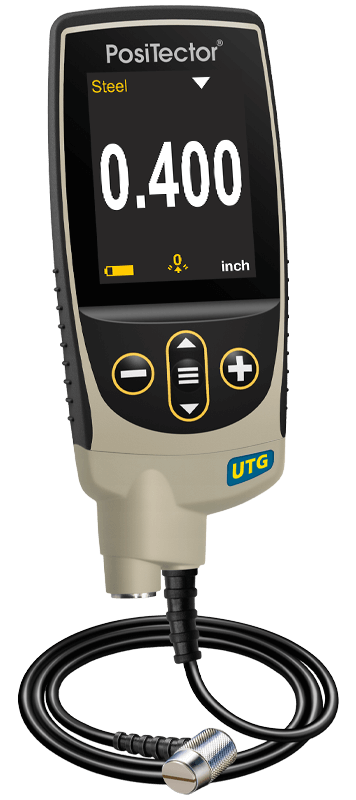

PosiTector® UTG

Ultrasonic Thickness Gage Measures Wall Thickness

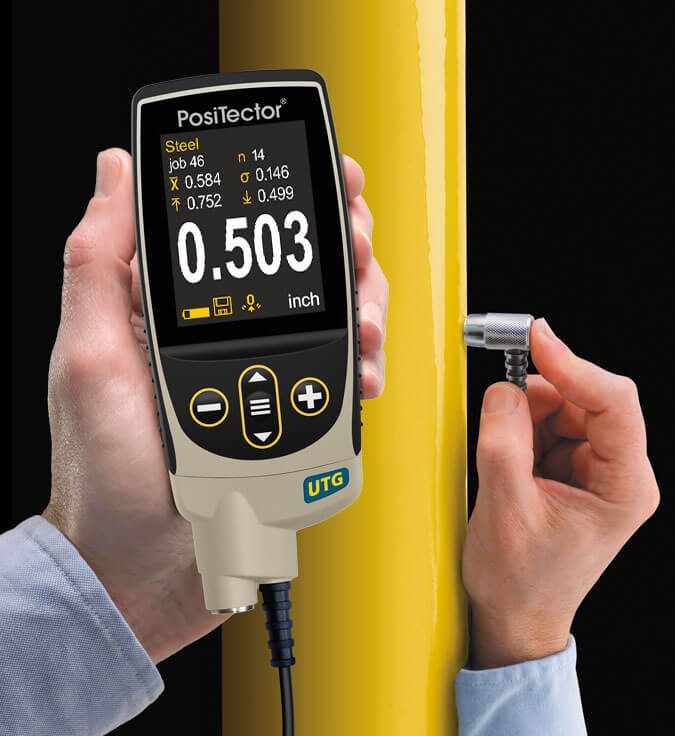

Measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

Precision ultrasonic transducers provide fast, accurate readings
Large 2.8'' impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Pre-programmed velocities—Simply select from a list of common materials or enter your own with ease
Min Scan mode—take continuous readings and record min/max thicknesses — ideal for quick inspection
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software

Conforms to ASTM E797

Features

Simple
Pre-programmed velocities—simply select from a list of common materials or enter your own with ease
Smart Couple™ mode eliminates unintentional decoupling—ensure continuous measurements while measuring on scaled or pitted surfaces—ideal for analyzing large areas using multiple passes
Large 2.8'' impact resistant color touchscreen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button

Durable

Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Ergonomic design with durable rubberized grip
Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Accurate

Precision ultrasonic transducers provide fast, accurate readings
Certificate of Calibration (Long Form) showing traceability to NIST or PTB included
Built-in temperature compensation ensures measurement accuracy
Conforms to national and international standards including ASTM E797

Powerful

Min Scan mode—take continuous readings and record min/max thicknesses—ideal for quick inspection over a large area
Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
Screen Capture—save 100 screen images for record keeping and review
Instant-on feature quickly powers up the gage if recently powered down
Over 20 hours of continuous operation with 3 AAA batteries
USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Includes PosiSoft suite of software for reviewing and reporting data
Every stored measurement is date and time stamped

Versatile

PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
Auto rotating display with Flip Lock
Single or two point adjustment
Inch/mm switchable
Selectable display languages
Extended cables available (up to 20 m/60 ft) for underwater or remote measuring

Standard Models

Includes ALL features as shown on left plus...

Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

Storage of 250,000 readings in up to 1,000 batches and sub-batches
Live graphing of measurement data
Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
Touchscreen keyboard for quickly renaming batches, adding notes, and more

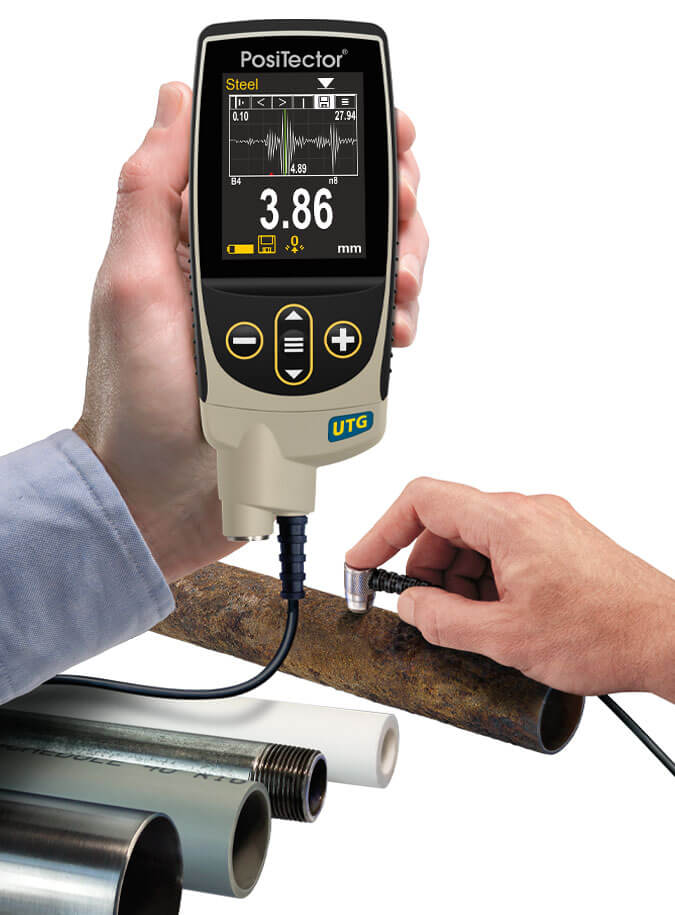

A-Scan with adjustable Gain and screen capture. UTG M and UTG P probes include dual cursors to measure the distance between echoes
B-Scan—displays a cross sectional profile of the test material
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

All gages come complete with body and probe, couplant, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, protective carrying case, protective lens shield, Long Form Certificate of Calibration traceable to NIST or PTB, USB cable, PosiSoft Software, two (2) year warranty.
