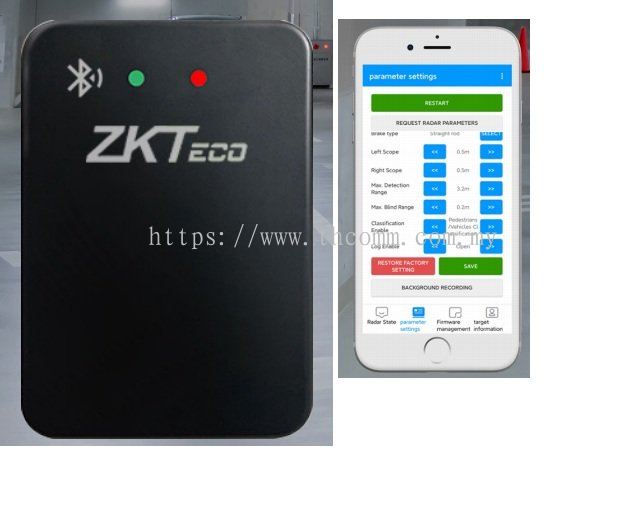

Features
· Vehicles and pedestrians detection
· Supports Bluetooth communication, allowing upgrade and debug with a mobile App(Radar Assistant)
· Supports RS485 communication, allowing upgrade and debug with a PC
· Flexible installation
· Works normally under ambient weather conditions (IP67)
· Detection distance adjustable from 1m to 6m
· Supports straight boom
Introduction of the Radar App (Radar Assistant)
~ Supports Android and iOS systems
~ One-click connection with the radar on a mobile phone by Bluetooth
~ Bluetooth communication distance ranges from 3m to 5m
~ The radar detection distance, background recording, radar status,
radar rebooting, and other parameters can be set with the mobile app
~ Firmware upgrade can be done with the app
Specifications
|
Model |
VR10 |
|
Detection Distance |
1m to 6m |
|
Working Frequency |
79GHz |
|
Working Voltage |
DC 10V to16V |
|
Working Current |
0.2A |
|
Power Consumption |
≤ 2.5W |
|
Transmitter Power Output |
12.5dBm |
|
Antenna Gain |
10dBi |
|
Interface |
Bluetooth, RS485, Relay |
|
Product Dimensions (mm) |
107.5*73.2*18 |
|
Package Dimensions (mm) |
166*94*97 |
|
Net Weight |
228.4g |
|
Working Temperature |
-40°C to 85°C |
|
Protection Standard IP67 |
IP67 |
|
Supported App |
Radar Assitant |
