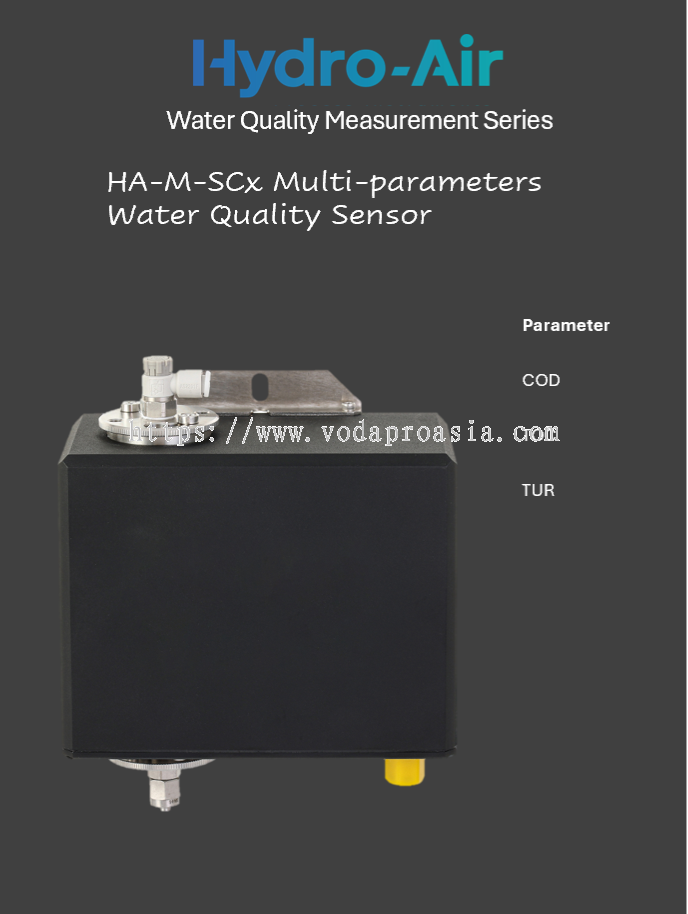

The multi-parameter water quality sensor adopts the optical principle and integrates multiple parameters, measuring turbidity, TOC, and COD. Users can choose specific parameters according to their needs.
The turbidity sensor is equipped with an automatic optical window cleaning function, which is maintenance-free for a long time for tap water application scenarios. In addition, with the HA-W-S meter controller and cloud service, users can realize on-site and remote data viewing.
| Item | Specification |
|---|---|
| Principle | 90° scattering + UV spectrometry |
| Dimension | 150 × 82 × 175mm |
| Power requirements | DC+12V~+24V |
| Measurement period | 10 seconds to 65535 seconds |
| Operating temperature | 0 to 50℃ |
| Pressure | 10bar |
| Power | < 6W |
| Cleaning method | Cleaning brush |
| Sample flow rate | 200-500m L/min |
| Communication | RS485(Modbus RTU) |
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| Turbidity | HA-M-SC2 | 0-100 NTU | 0.001 NTU | ±2% or ±0.015 NTU |
| HA-M-SC3 | ||||
| HA-M-SC5 | ||||
| TOC | HA-M-SC2 | 0-20 mg/L | 0.001 mg/L | ±2% F.S. |
| HA-M-SC5 | ||||
| COD | HA-M-SC3 | 0-50 mg/L | 0.001 mg/L | ±2% F.S. |
| HA-M-SC5 |
