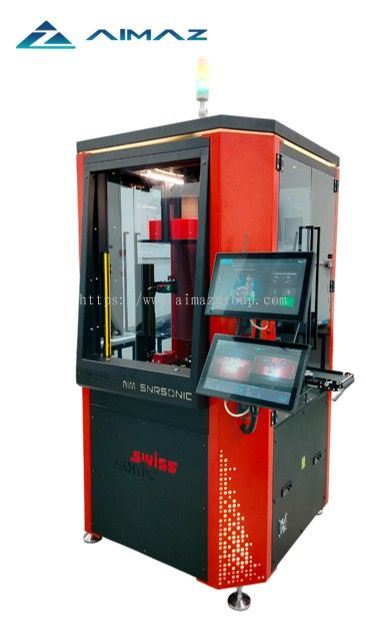

Auto Rotary Ultrasonic Plastic Welding Machine, designed to deliver fast, precise, and consistent ultrasonic welding for plastic components. The rotary indexing system enables continuous production while ensuring high weld quality, reduced cycle time, and minimal operator intervention, making it ideal for high-volume manufacturing environments.
Product Description
Auto Rotary Ultrasonic Plastic Welding Machine is a standalone industrial automation machine equipped with a rotary indexing table, ultrasonic welding system, precision fixtures, and PLC-controlled programmable parameters developed by AIMAZ. The machine is designed to automate the plastic welding process, improve product consistency, and increase manufacturing productivity.
Machine Functionality
- Automatic loading of plastic components.
- Rotary indexing to each processing station.
- Precision positioning and clamping.
- Automatic ultrasonic welding process.
- Vision inspection for weld quality (optional).
- OK/NG product sorting.
- Automatic unloading of finished products.
- Production data recording and traceability (optional).
Machine Features
- Sturdy steel frame with powder-coated panels and safety enclosure.
- PLC controlled automated sequence.
- Rotary indexing table for continuous production.
- High precision ultrasonic welding system.
- Stable PLC controlled automated sequence with 7" Mitsubishi Touch Screen Color Display.
- Programmable welding time, pressure, amplitude and holding time.
- Custom-designed welding horn and product fixture.
- Quick product changeover for different models.
- Low maintenance and high reliability.
- Optional vision inspection and barcode traceability system.
- Data logging and production counter.
Machine Capability
- Automatic rotary indexing system.
- High-precision ultrasonic plastic welding.
- Consistent and repeatable weld quality.
- High production efficiency.
- Quick tooling changeover for different products.
- Low maintenance and reliable operation.
- Optional vision inspection and MES integration.
Machine Facility Requirement
| Item |
Specification |
| Voltage Single Phase |
230 VAC |
| Frequency |
50 / 60 Hz |
| Compressed Air |
0.5 – 0.7 MPa |
| Power Consumption |
< 3000 W |
| Operating Temperature |
10°C to 40°C |
| Operating Humidity |
< 80% RH |
Machine Dimension and Weight
The machine features a compact, modular design that can be customized to suit the customer's factory layout and production requirements. Overall dimensions and machine configuration are determined based on the product specification and desired production capacity.\
