Key Features
－HD-SDI Speed Dome camera
－20x Optical Zoom(4.7~94mm) and 32x Digital Zoom
－1/2.8” 2Megapixel CMOS progressive image sensor
－Twin motorized IR Zoom lens for IR intensity & distance adjustment
－Optically perfect flat viewing window preventing blooming and smear
－True Day&Night with IR cut filter removable
－Pan speed : 360°, 0.1°~120°/sec control (proportional to zoom)
－Tilt speed : -8°~188°, 0.8°~80°/sec control (proportional to zoom)
－Preset speed : 250°/sec for pan/tilt (Pan ± 0.1°, Tilt ± 0.05° accuracy)
－255 Preset, 8 Tour, 6 Group, 8 Scan, 4 Pattern support
－Programmable 8 Privacy zones
－8 Alarm input, 2 Relay output (2A@30VAC)
－Dual video outputs of HD-SDI and CVBS
－Weather-proof ourdoor housing of IP66
－Operating temperature adjustable built-in fan & heater
－Wide operating temperature of -50℃~70℃
－Internal aluminum diecasting for shock-resistance, and the external ABS housing for corrosion-resistant
－Ease installation and maintenance
|
VIDEO |
|
Sensor Type |
1/3”, 2.1 Megapixel CMOS Image sensor |
|
Total Pixels |
1920(H) x 1080(V) = 2.1M pixels |
|
Scanning System |
Progressive Scan |
|
Min Illumination |
B/W |
0.1 Lux (DSS OFF) / 0.001 Lux (DSS ON) |
|
Color |
0.5 Lux (DSS OFF) / 0.002 Lux (DSS ON) |
|
Lens |
Zoom |
20x Optical zoom & 32x Digital zoom |
|
Angle of View |
55.4˚(W) ~ 2.9˚(T) at HD1080p mode / 37.6˚(W) ~ 2.0˚(T) at HD720p mode |
|
Focal length & Aperture |
f=4.7mm(W) ~ 94mm(T), F1.6 to 3.5 |
|
Min. Working Distance |
100mm (Wide-end), 800mm (Tele-end) |
|
IR LED |
2x Motorized IR Zoom |
|
Video Output |
HD-SDI |
HD1080p30(25), HD720p60(50) |
|
Analog |
CVBS (BNC 1.0Vp-p, 75Ω) |
|
Video Control |
Electronic Shutter Speed |
1 ~ 1/10,000 sec (22 Steps) |
|
Day&Night |
Auto/ Day/ Night (ICR) |
|
Focus |
Auto/ Infinity/ One-push/ Manual |
|
Exposure Mode |
Auto/ Bright/ Iris/ Shutter/ Manual |
|
White Balance |
Auto/ One-push/ Manual/ Outdoor/ Indoor |
|
AGC |
AUTO/ MANUAL (-3dB to +28dB, 16 steps) |
|
WDR |
Off/ On |
|
Noise Reduction |
Off, Level 1~3, Auto |
|
Pan/Tilt |
Range |
Pan : 360˚(Endless), Tilt : -8˚ ~ 188˚/sec |
|
Pan/Tilt Speed |
Pan : 0.1˚ ~ 120˚/sec, Tilt : 0.8˚ ~ 80˚/sec |
|
Preset Speed & Accuracy |
Pan : 250˚/sec with ± 0.1° accuracy, Tilt : 250˚/sec with ± 0.05° accuracy |
|
Preset |
255 presets with labels/ Independent camera setup |
|
Tour |
8 Tours |
|
Group |
6 Groups |
|
Scan |
8 Scans |
|
Pattern |
4 Patterns (up to 60 seconds per pattern) |
|
Other functions |
Power-up Action & etc. |
|
CONTROL INTERFACE |
|
Communication |
RS-485 |
|
RS-485 Protocol |
Auto (Pelco-D, Pelco-P, can be supported automatically) |
|
ELECTRICITY |
|
Power Consumption |
AC 21V~AC26V, 50/60Hz |
|
Heater & Cooling Fan |
30W / 1000RPM Cooling Fan |
|
MECHANICAL |
|

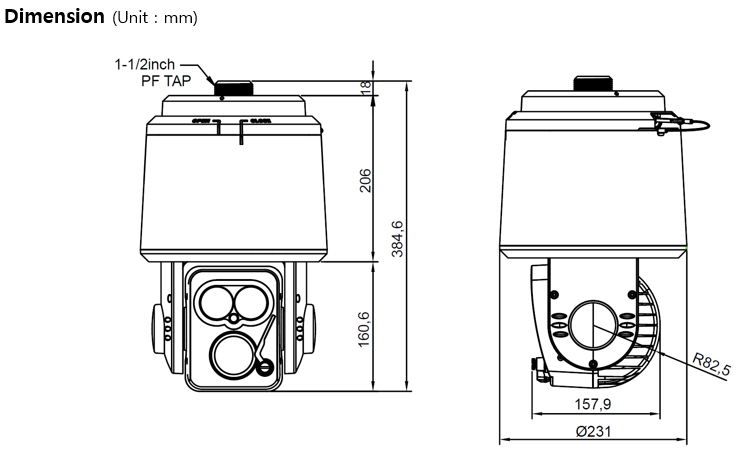

Dimension |
Housing(øxH) : 231 x 385mm |
|
Body |
External ABS / Internal Aluminum |
|
Weight |
Approx. 6.4Kg |
|
ENVIRONMENTS |
|
Operation Temperature / Humidity |
-50 ºC ~ 70 ºC with heater & fan / 0%RH ~ 90%RH (non-condensing) |
|
CERTIFICATIONS |
|
Certifications |
KCC, FCC, CE, IP66 |
