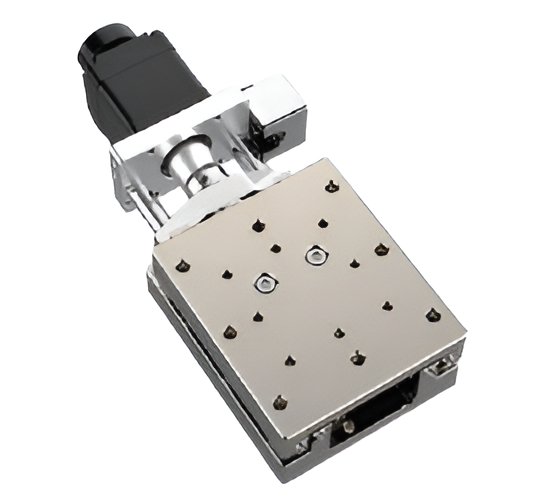

Standard X-axis Ball Screw Feed Type (LFX Series)

SEM Equipment Sdn. Bhd.

Category: PRECISION POSITIONING STAGE Available

For more information, visit our official website at sem-eq.com

Visit Official Site Contact Us

Description

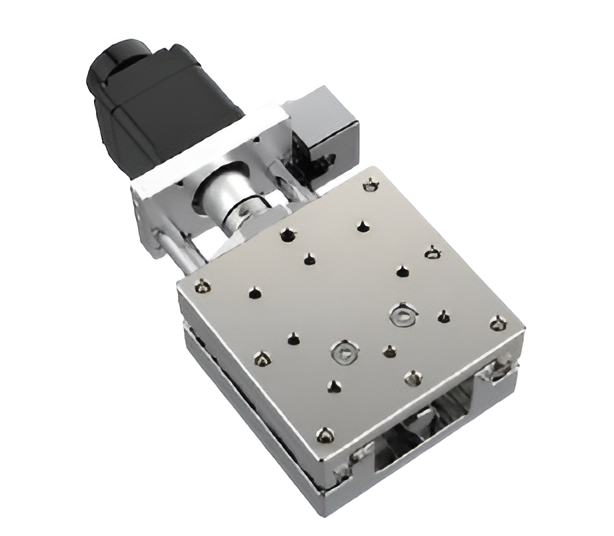

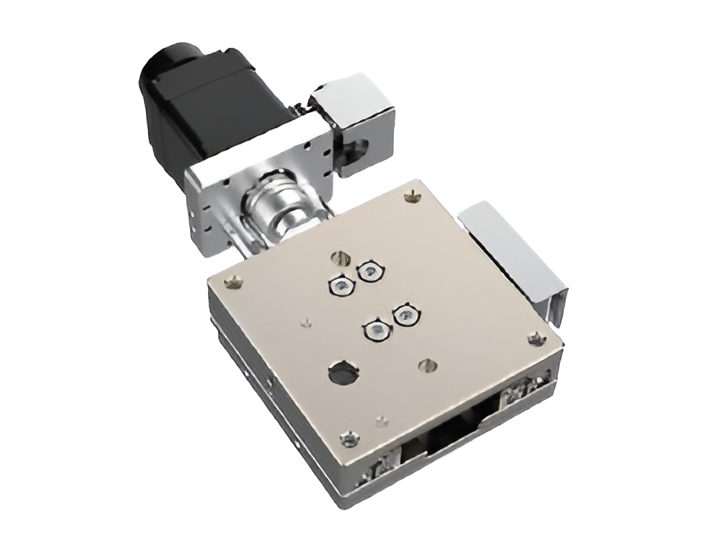

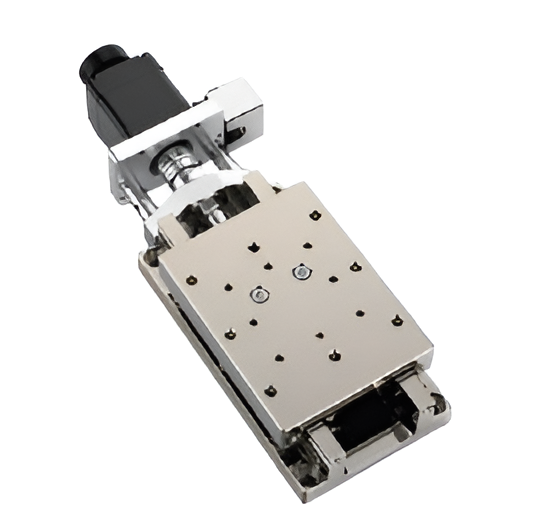

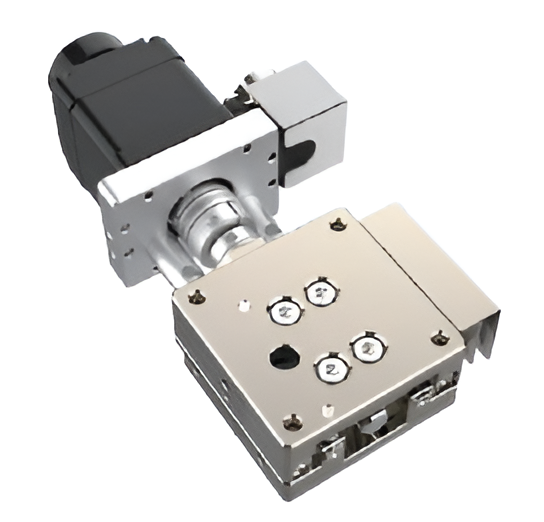

Model :

LFX415-L / LFXY415-L
LFX615-L/R / LFXY615-L/R

LFX620-L / LFZ620-L / LFXY620-L
LFX630-L/R / LFZ630-L/R / LFXY630-L/R
LFX650-L / LFZ650-L / LFXY650-L
LFXYZ620-L/R / LFXYZ630-L/R
LFXYZ650-L

Features :

Mainly constructed of SUS440C stainless steel, it significantly improves load-bearing capacity while minimizing size.
The surface is nickel-plated for excellent rust resistance.
Standard platform with 28-inch stepper motor.
Custom travel options are available through consultation
Extension cable order model: ASCBXB-T (X represents length, ranging from 2 to 8 meters).

Dimension :

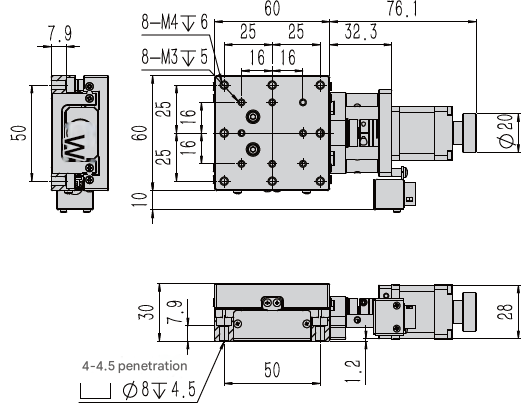

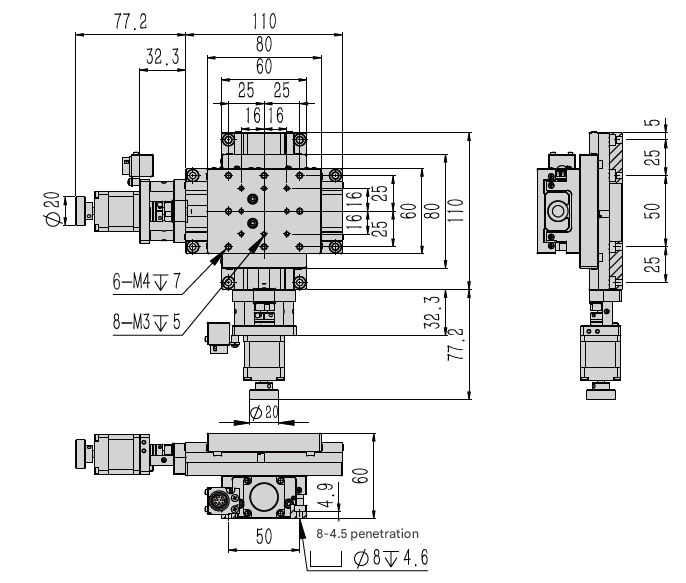

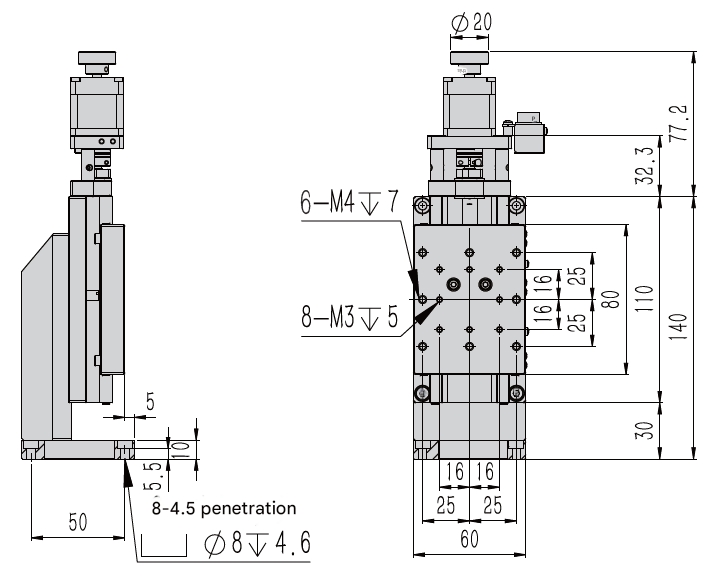

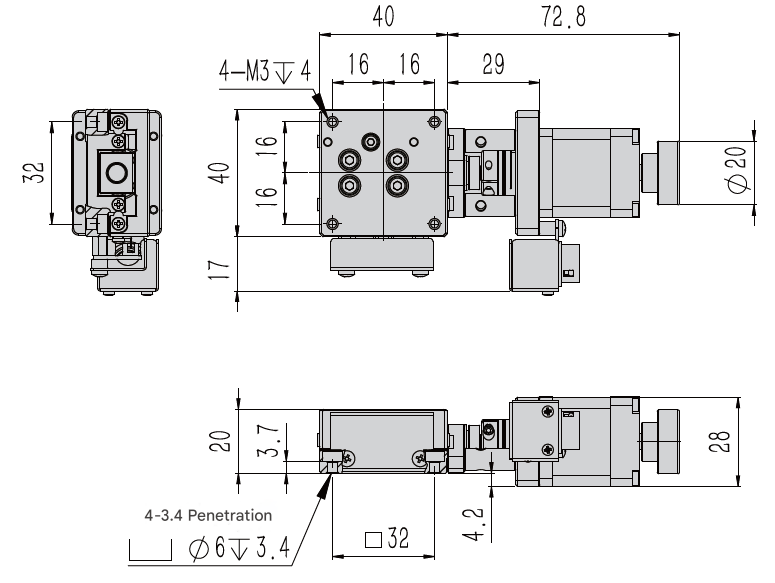

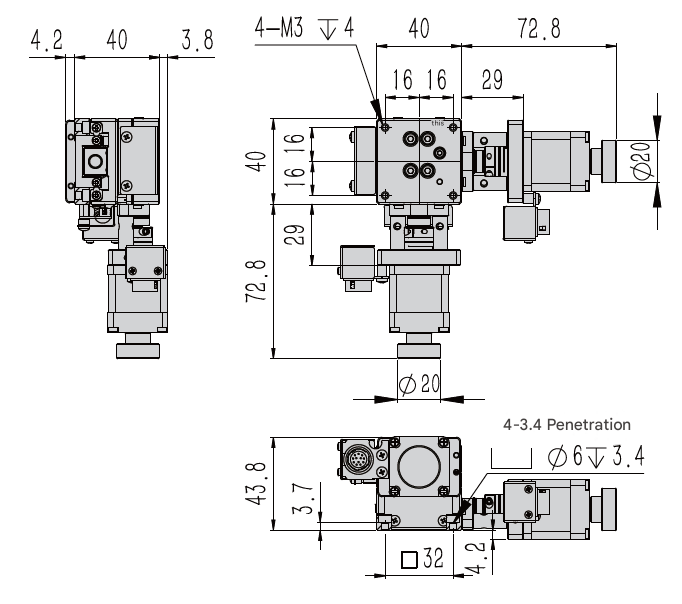

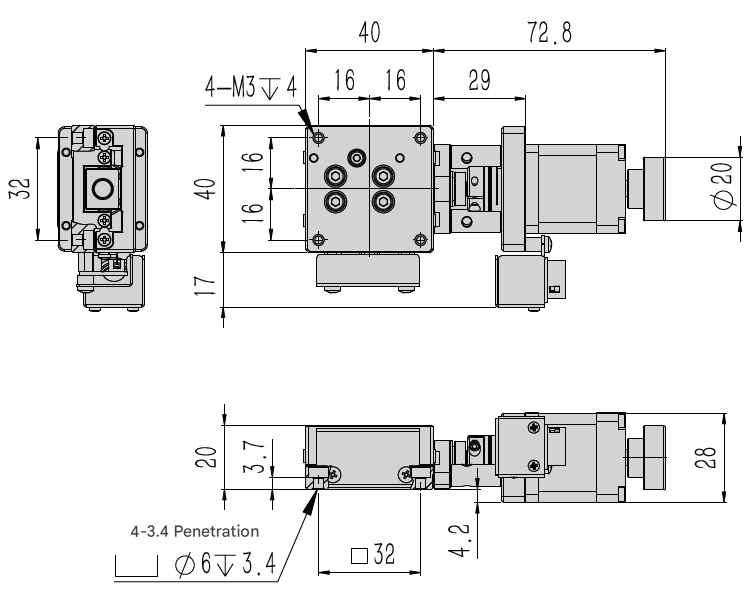

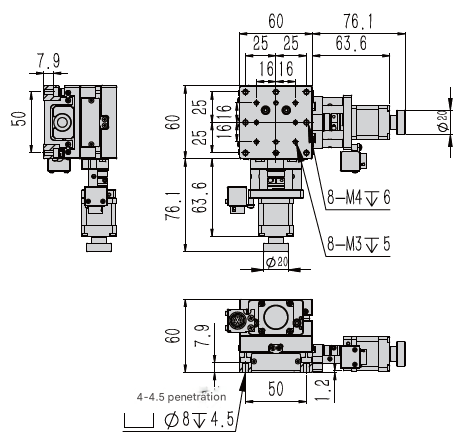

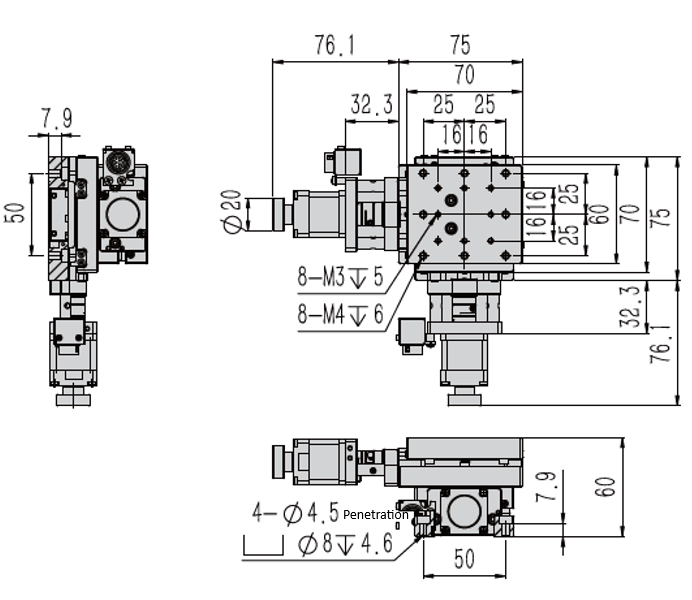

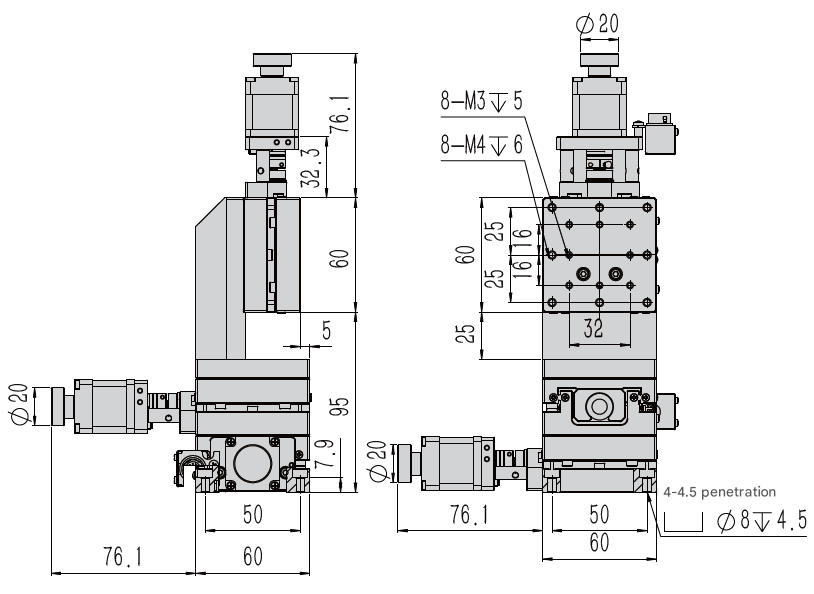

LFX415-L

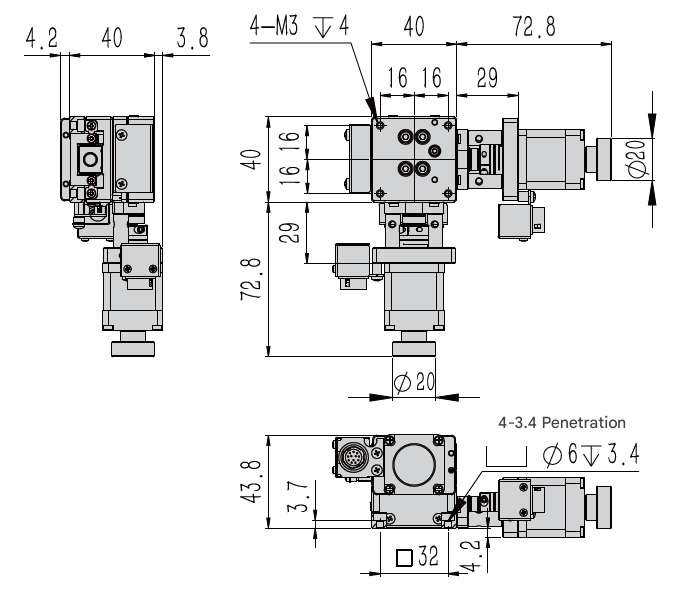

LFXY415-L

LFX615-L/R

LFXY615-L/R

LFX620-L
LFZ620-L
LFXY620-L

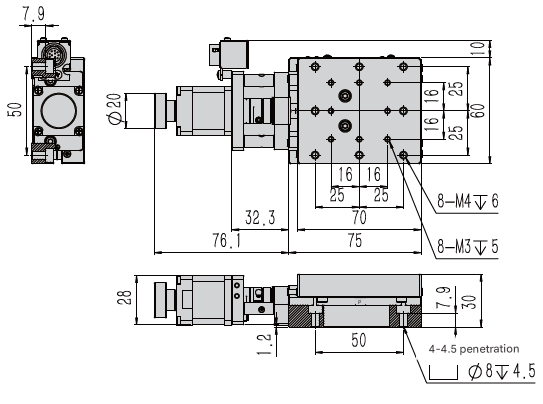

LFX630-L

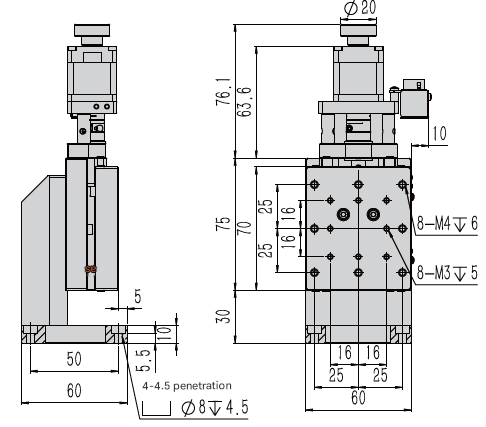

LFZ630-L

LFXY630-L

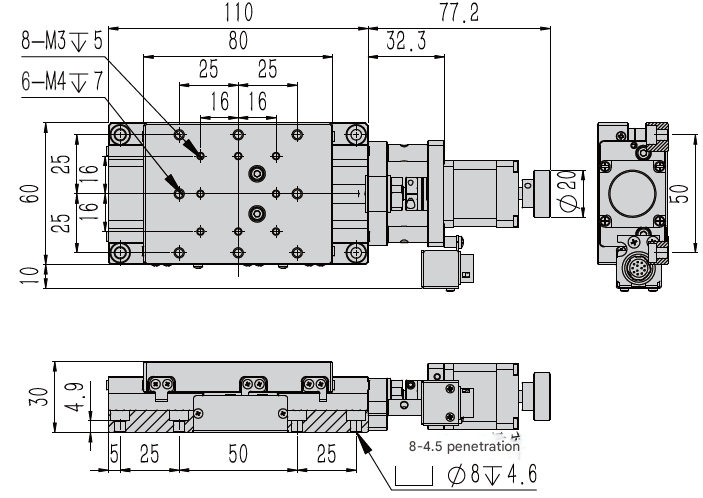

LFX650-L
LFZ650-L
LFXY650-L

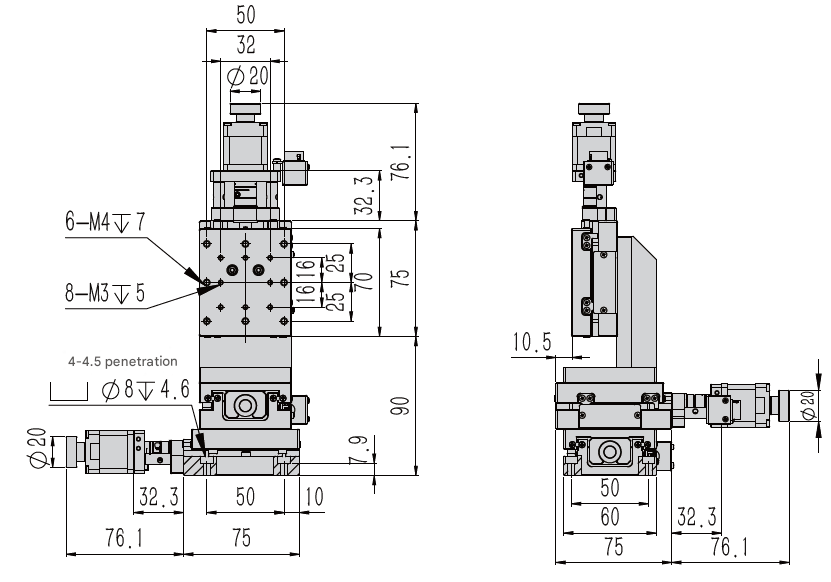

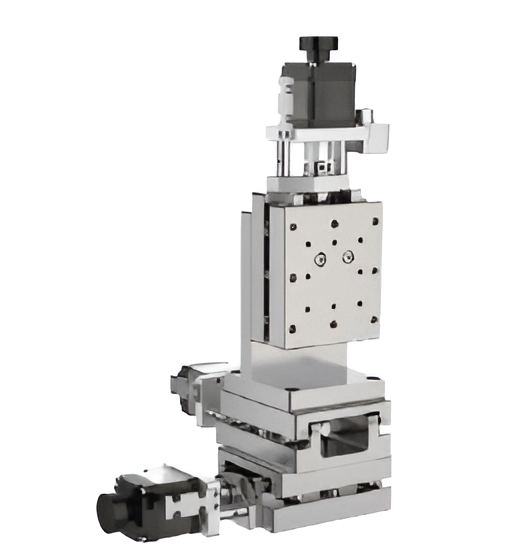

LFXYZ630-L
LFXYZ620-L

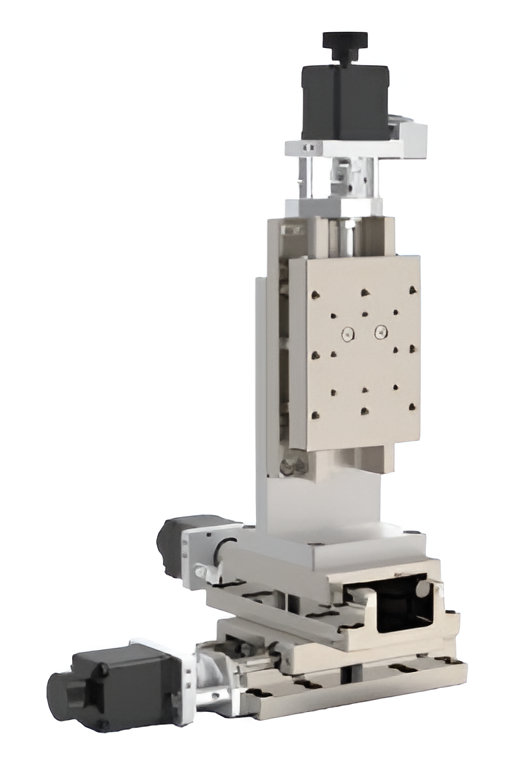

LFXYZ650-L

Specifications :

LFX415-L & LFXY415-L

Model	LFX415-L/R	LFXY415-L/R
Movement amount	15 mm
Slide table size	40 x 40 mm
Feed screw (ball screw)	Ø 6 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 0.36kg	About 0.72kg
Move direction	X-axis	XY-axis
Maximum speed	10 mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1m
Load	10kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	within 15um
Limit sensor	2
Origin sensor	1

LFX615-L/R & LFXY615-L/R

Model	LFX615-L/R	LFXY615-L/R
Movement amount	15 mm
Slide table size	60x60 mm
Feed screw (ball screw)	Ø 6 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 0.56kg	About 1. 12kg
Move direction	X-axis	XY-axis
Maximum speed	10 mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1m
Load	10kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	within 15um
Limit sensor	2
Origin sensor	1

LFX620-L / LFZ620-L / LFXY620-L

Model	LFX620-L/R	LFZ620-L/R	LFXY620-L/R
Movement amount	20 mm
Slide table size	60x60 mm
Feed screw (ball screw)	F8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 0.75kg	About 1.05kg	About 1.5kg
Move direction	X-axis	Z-axis	XY-axis
Maximum speed	10 mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	10kgf	5kgf	10kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	within 20um
Limit sensor	2
Origin sensor	1

LFX630-L/R / LFZ630-L/R / LFXY630-L/R

Model	LFX630-L/R	LFZ630-L/R	LFXY630-L/R
Movement amount	30 mm
Slide table size	60x70 mm
Feed screw (ball screw)	F8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 0.87kg	About 1.17kg	About 1.74kg
Move direction	X-axis	Z-axis	XY-axis
Maximum speed	10 mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	10kgf	5kgf	10kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	within 20um
Limit sensor	2
Origin sensor	1

LFX650-L / LFZ650-L / LFXY650-L

Model	LFX650-L/R	LFZ650-L/R	LFXY650-L/R
Movement amount	50 mm
Slide table size	60x80 mm
Feed screw (ball screw)	F8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 1. 15 kg	About 1. 45kg	About 2.3kg
Move direction	X-axis	Z-axis	XY-axis
Maximum speed	10 mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	10kgf	5kgf	10kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	within 20um
Limit sensor	2
Origin sensor	1

LFXYZ620-L/R / LFXYZ630-L/R

Model	LFXYZ620-L/R	LFXYZ630-L/R
Movement amount	20 mm
Slide table size	60 x 60 mm	60 x 70 mm
Feed screw (ball screw)	F8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 2. 55 kg	About 2.91 kg
Move direction	XYZ axis	Z-axis
Maximum speed	10 mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	5kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	within 20um
Limit sensor	2
Origin sensor	1

LFXYZ650-L

Model	LFXYZ650-L/R
Movement amount	50mm
Slide table size	60x80 mm
Feed screw (ball screw)	F8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 3.75kg
Move direction	XYZ axis
Maximum speed	10 mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	5kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	within 20um
Limit sensor	2
Origin sensor	1
