Features :

Dual-Track Configuration for High Production Efficiency
- The dual-track conveyor system allows for independent and alternate placement processes.
  - Independent placement: Two tracks canindependently produce different substrates without interference, achieving higher efficiency.
  - Alternate placement: The front and rear placement heads can simultaneously operate on a single substrate without interfering with each other.

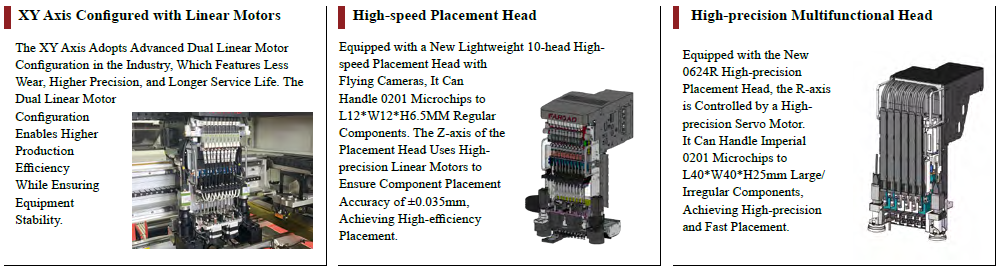

Multiple High-end Configurations Ensure High-precision, High-efficiency, and Stable Production

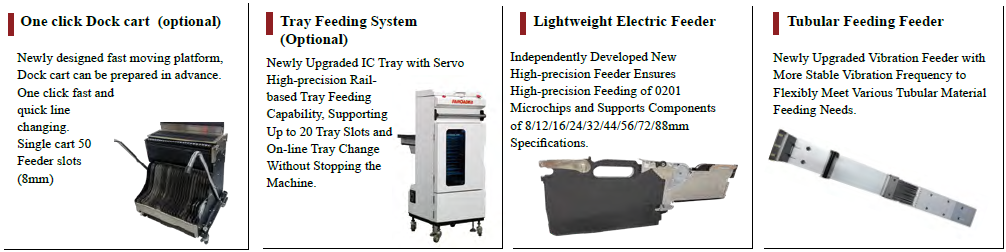

Feeding Devices and Corresponding Components: Supports Production with Multiple Material Packaging Feeders

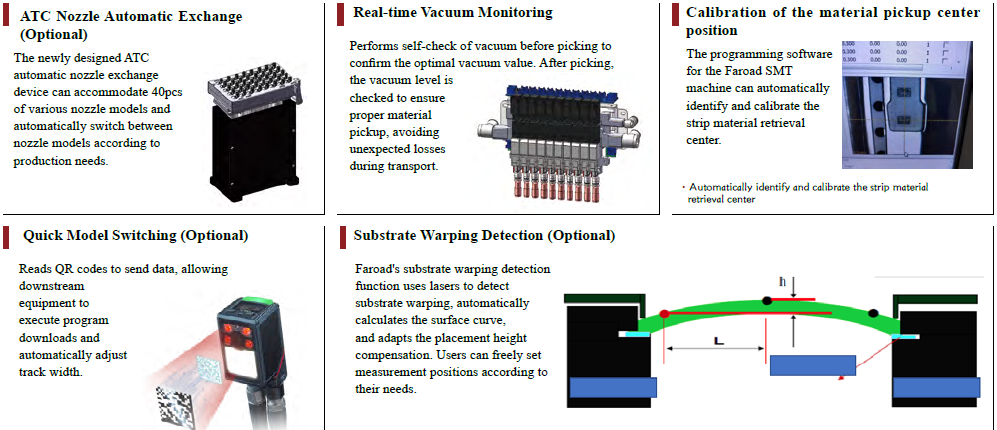

Intelligent Functional Configurations: Making Equipment Operation More Convenient, Smarter, and More Flexible

Advantages :

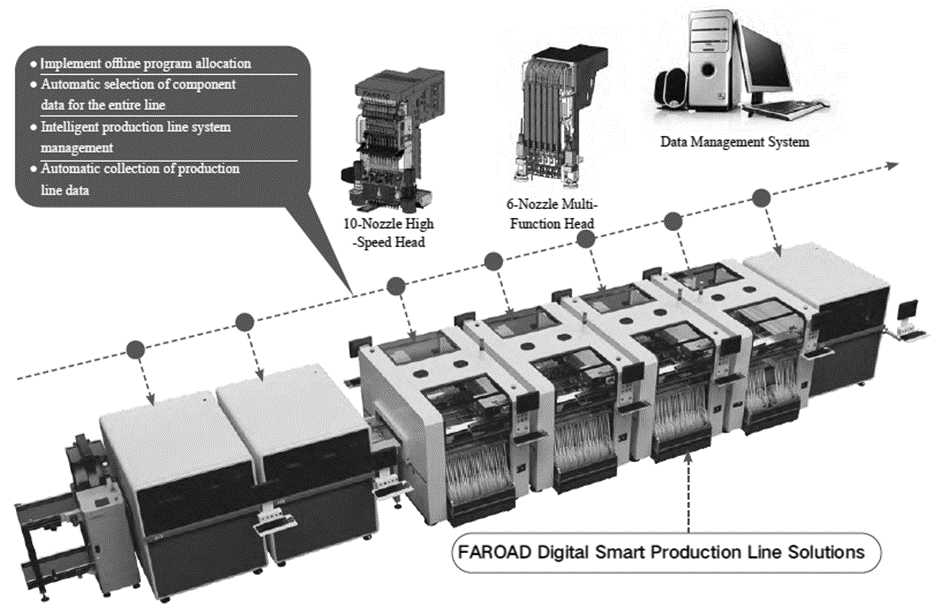

Optimal balanced line design ensures high-efficiency and high-quality production.
The entire line equipment can integrate with MES systems for smart factory management.
Offline programming software VConnector: Optimizes placement times intelligently through offline programming, enhancing the efficiency of the entire line.
Customers can flexibly choose placement production line configurations.

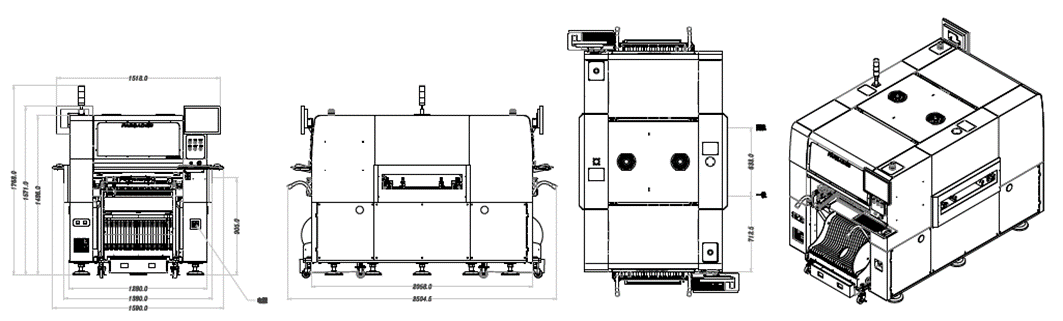

Dimension :

Specifications :

Model	Category	CPM-H6
Specifications	Placement Head Module	Dual arms	Dual arms
	Track Module	Single/double track	Single/double track
	Number of Nozzles	High speed mounting head (10+10 heads)	Multi functional mounting head (6+6 heads)
Equipment size	L×W×H	L1380 X W2060 X H1450mm L1380 X W2280 X H1450mm (Including Feeder cart)	L1380 X W2060 X H1450mm L1380 X W2280 X H1450mm (Including Feeder cart)
Weight	Weight	Approx 2760KG(Including Feeder cart)	Approx 2760KG(Including Feeder cart)
Electrical Specifications	Air Supply	0.5MPa，300L/min	0.5MPa，300L/min
Electrical Specifications	Power Supply/Power	AC380/420/480V, 5KW	AC380/420/480V,5KW
Object substrate	PCB size	Single track：Min 5050mm，Max 510510mm Dual track：Min 5050mm，Max 510280mm (Can be modified and mounted 1200mm)	Single track：Min 5050mm，Max 510510mm Dual track：Min 5050mm，Max 510280mm (Can be modified and mounted 1200mm)
	PCB Thickness	0.5-9.0mm	0.5-9.0mm
	PCB fixing method	Electric lifting platform, upper and lower clamps	Electric lifting platform, upper and lower clamps
Placement Function	Optimal placement speed	90000CPH	38000CPH
	Placement Accuracy (CPK)	士0,035mm(XYZ),CPK≥1.0	士0,03mm(XYZ), CPK≥1.0
	Supported Component Range	Flying Camera: Minimum Imperial 0201, Maximum L12W12H6.5mm	—
	Supported Component Range	Fixed Camera: Minimum Imperial 0201, MaximumL40W40H13mm	Fixed Camera: Minimum Imperial 0201, MaximumL40W40H25mm
Vision System	MARK camera range	L10mm*w10mm	L10mm*w10mm
	MARK camera type	Area Array500W	Area Array500W
	Component camera type	Flying Camera	—
	Component camera type	Fixed Camera	Fixed Camera
Incoming/Feeding System	Feeder Cart	Support	Support
	Feeders	Electric Feeder	Electric Feeder
	Number of Feeders	100Slots（8mm ）	100Slots（8mm ）
	Tape Feeders	Tape:8/12/16/24/32/44/56mm	Tape:8/12/16/24/32/44/56/72/88mm
	Tube Feeders	Number of Slots for a Single Vibration Feeder:	Number of Slots for a Single Vibration Feeder:
	Tube Feeders	4-20mmx3Tubes，30-40mmx2Tubes，40-50mmX1Tube	4-20mmx3Tubes，30-40mmx2Tubes，40-50mmX1Tube
	Tray (Optional)	—	TRAY Cabinet Capacity: L323W136H7.5mm, 20 Trays
Control Section	X-axis	High-precision Linear Motor + Encoder
	Y-axis	Dual-drive Linear Motor + Encoder, Full Closed-loop Control
	Z-axis	High-precision Linear Motor
	R-axis	High-precision Servo Motor
MES System Integration	MES acquisition	Supports TCP/IP Communication Protocol
MES System Integration	MES upload	Supports QR Code/Barcode Recognition and Binding for MES Upload
