Description

MAG SPG257
LiNE SWING BARRIER

– Semi-automatic drive
– Lane clearance: 550mm
– SLAR for effective anti-tailgating
– MTBF 2.5 mil cycle

SPG257 LiNE swing barrier is a type of pedestrian gate typically installed
at the entrance of the building with an access control reader to restrict unauthorized
access while maintaining a welcoming atmosphere. Users with luggage
or wheelchair can pass through easily.

LiNE SPG257 is designed to achieve the right balance of cost-effectiveness and consistent quality.
With its streamlined design, LiNE SPG257 simply add value to any building entrance
by tightening pedestrian security without looking out of place.

Balanced afforability
We optimized to only include the most essential feature while maintaining durability for LiNE.
This made LiNE SPG257 a minimalist swing barrier with durability,
all without the expensive price of European brand.

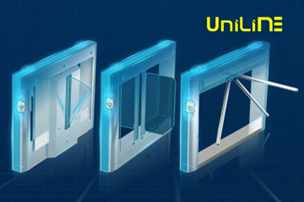

UniLiNE concept standardized the design of all types of gate and leverage bigger
economy of scale to make LiNE series more affordable.

Features	Swing Barrier SPG257
Consecutive Access Memory	✓
Bi-directional Access	✓
Time-out Auto-close	✓
LED Indicator	✓
Safety Sensor Auto-reverse	✓
Buzzer Alarm	✓
Emergency Auto-open	✓

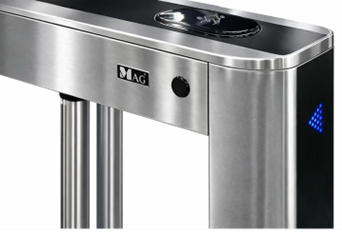

Slim as a LiNE
The thin black line flowing thorugh the housing, well contrasted by the stainless steel
metallic texture made LiNE even slimmer on the eye. Slim form factor of 160mm is practical
to fit most brand access reader, while allowing more lanes to be installed
to cater to the high traffic during peak hours.

Efficient

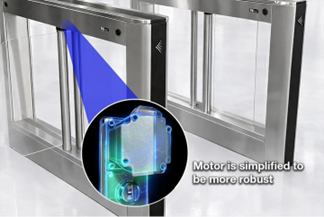

SPG257 uses a DC Brushless motor with integrated gearbox,
which is highly efficient and requires virtually ZERO maintenance.

Safety and security when it matters
The door panel will auto reverse to avoid hitting elderly,
pregnant or handicapped user that might need more effort to pass through.

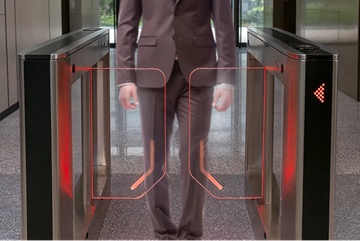

Door panels will turn red with an alarm buzzer to alert unauthorized user,
tailgating or incorrect access direction attempt so that the security
guard can react immediately on the spot.

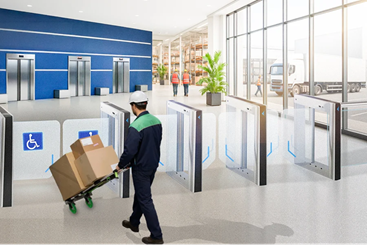

Wider access for special needs
The door panel of any selected lane can be wider up to 900 mm
to accommodate a handicapped wheelchair or goods travelling on a trolley.

Easier to accommodate project schedule
Unforeseen delay is common in most projects. You are worried about the extra
storage/penalty cost if the gate arrives too early or too late.
Let us know your project date forecast so that we can plan the production to meet your dateline.

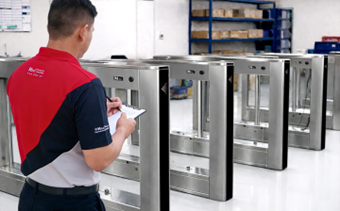

All gate is 100% QC tested as per our ISO9001 procedure just before your collection.

Description	Parameters
Body Material	Stainless Steel SUS304
Passage Width	600mm (Standard)
Passage Width	up to 900 max. (Accessibility Lane)
Door Opening / Closing speed	Programmable, >0.6s dependant on lane width
Optimal Flow Rate	Up to 35 person per minute
Power Supply	AC220/110V±10%, 50/60Hz
Power Consumption	<150W (Operational)
Motor	DC Brushless Motor, 24V
Input Connection	Dry contact pulse
Working Environment	Indoor and sheltered outdoor
Working Temperature	-20°C - 70°C
Relative Humidity	≤ 90%, non-condensing
Door Material	Acrylic
IP Rating	IP54
MTBF	>5 million cycles
