Description
⭐️FEATURES⭐️

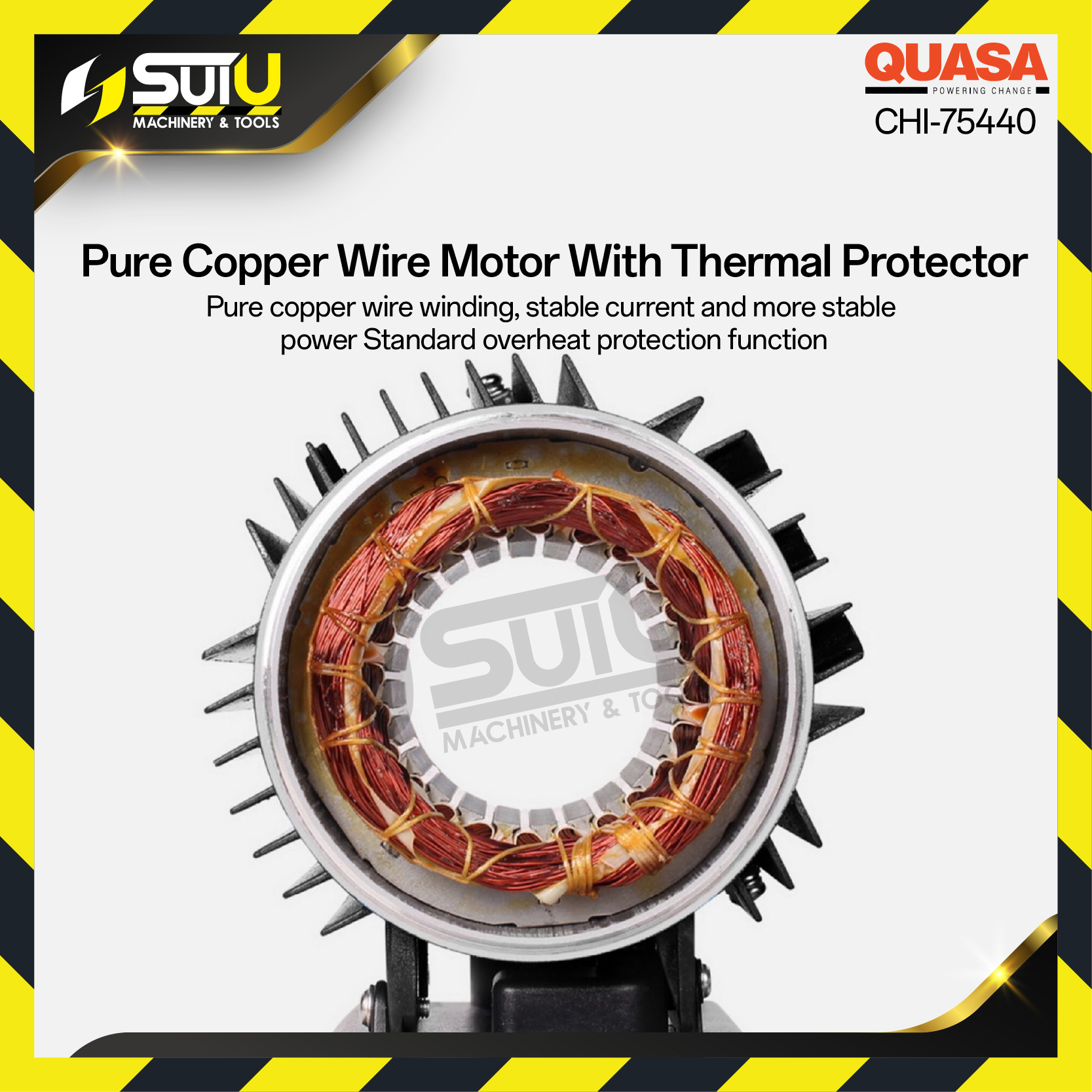

- 100% Copper Wired motor
- Fitted with MPC-EPC16 Pressure control with toolless starting pressure adjust
- PC with real time working pressure gauge
- Pump with SS316 Impeller - Pumps with SS304 Pump Body
- Pumps with SS304 Bull Welded
- Pumps with Anti-vibration base with rubber cushion
- Fitted with 1.5m power cable with BS plug

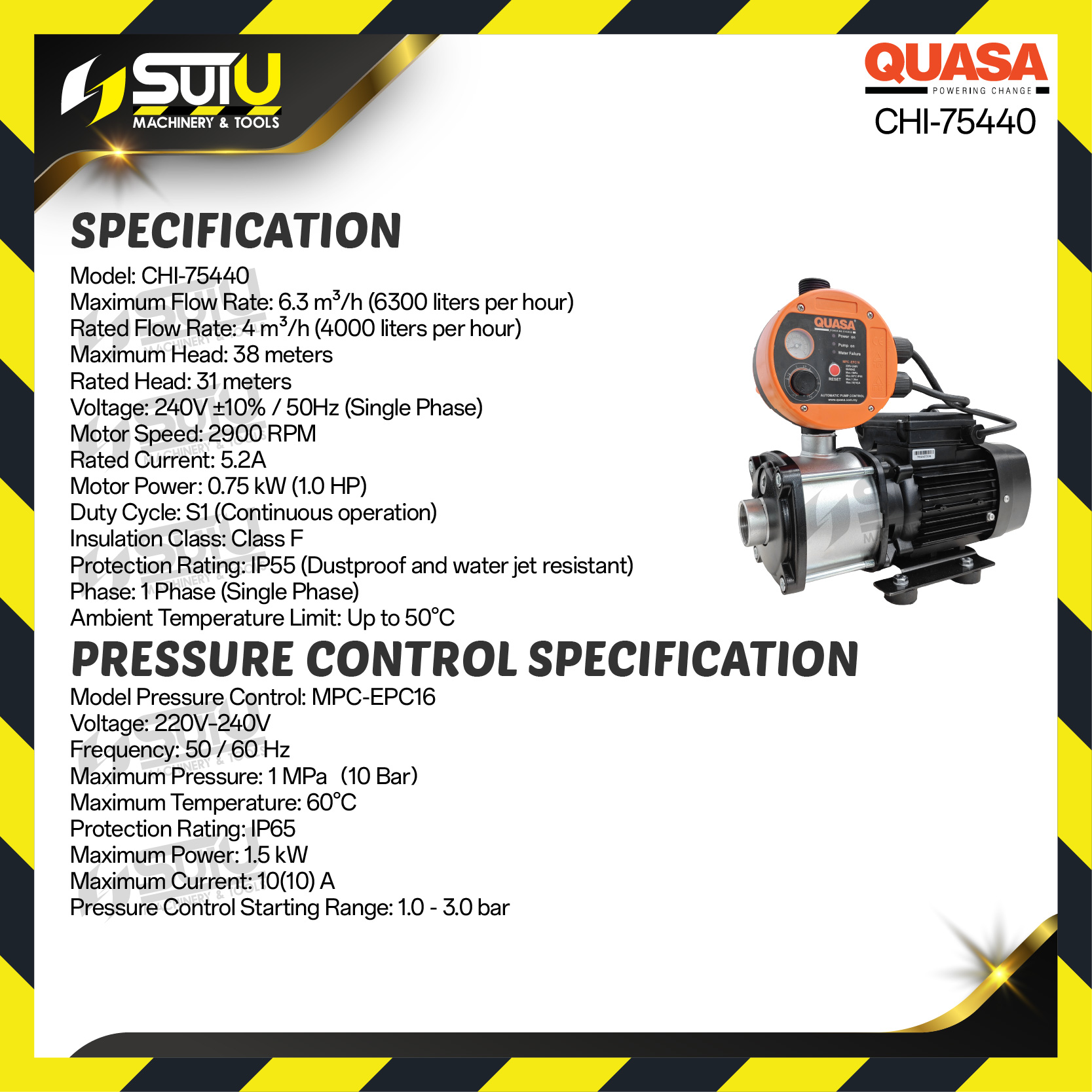

⭐️SPECIFICATIONS⭐️
- Model : CHI-75440
- Maximum Flow rate : 6.3m³/h (6300 Liters per hour)
- Rated Flow Rate : 4m³/h (4000 Liters per hour)
- Maximum Head : 38 Meters
- Rated Head : 31 Meters
- Voltage : 240V ±10% / 50Hz (single phase)
- Motor Speed : 2900RPM
- Rated Current : 5.2A
- Motor Power : 0.75kW (1.0HP)
- Duty Cycle : S1 (Continuous operation)
- Insulation Class : Class F
- Protection Rating : IP55 (Dustproof and water jet resistant)
- Phase : 1 Phase (Single phase)
- Ambient temperature limit : up to 50°C

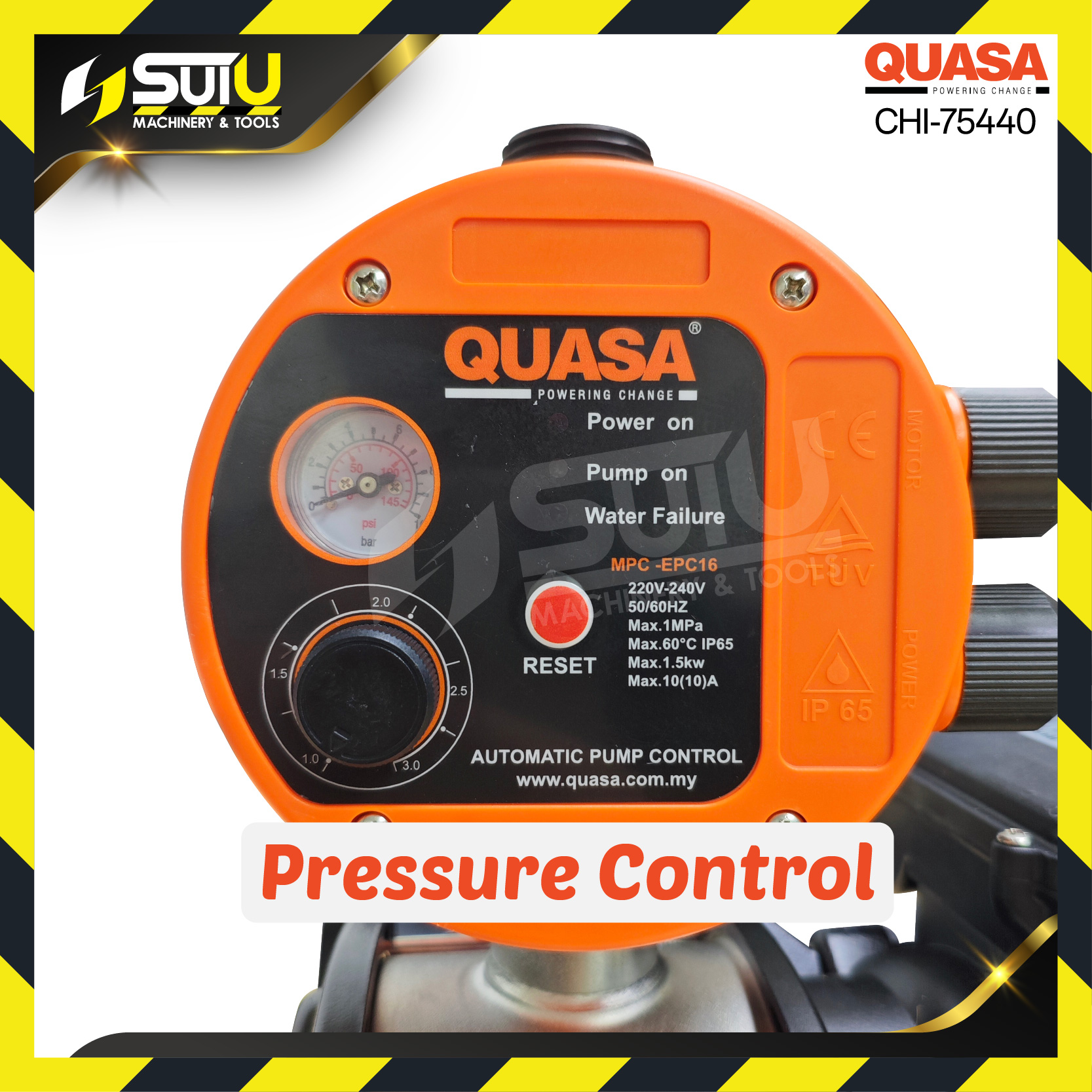

▪️ Pressure control specifications
- Model Pressure control : MPC-EPC16
- Voltage : 220V - 240V
- Frequency : 50/60Hz
- Maximum Pressure : 1 MPA (10bar)
- Maximum temperature : 60°C
- Protection rating : IP65
- Maximum power : 1.5kW
- Maximum current : 10A
