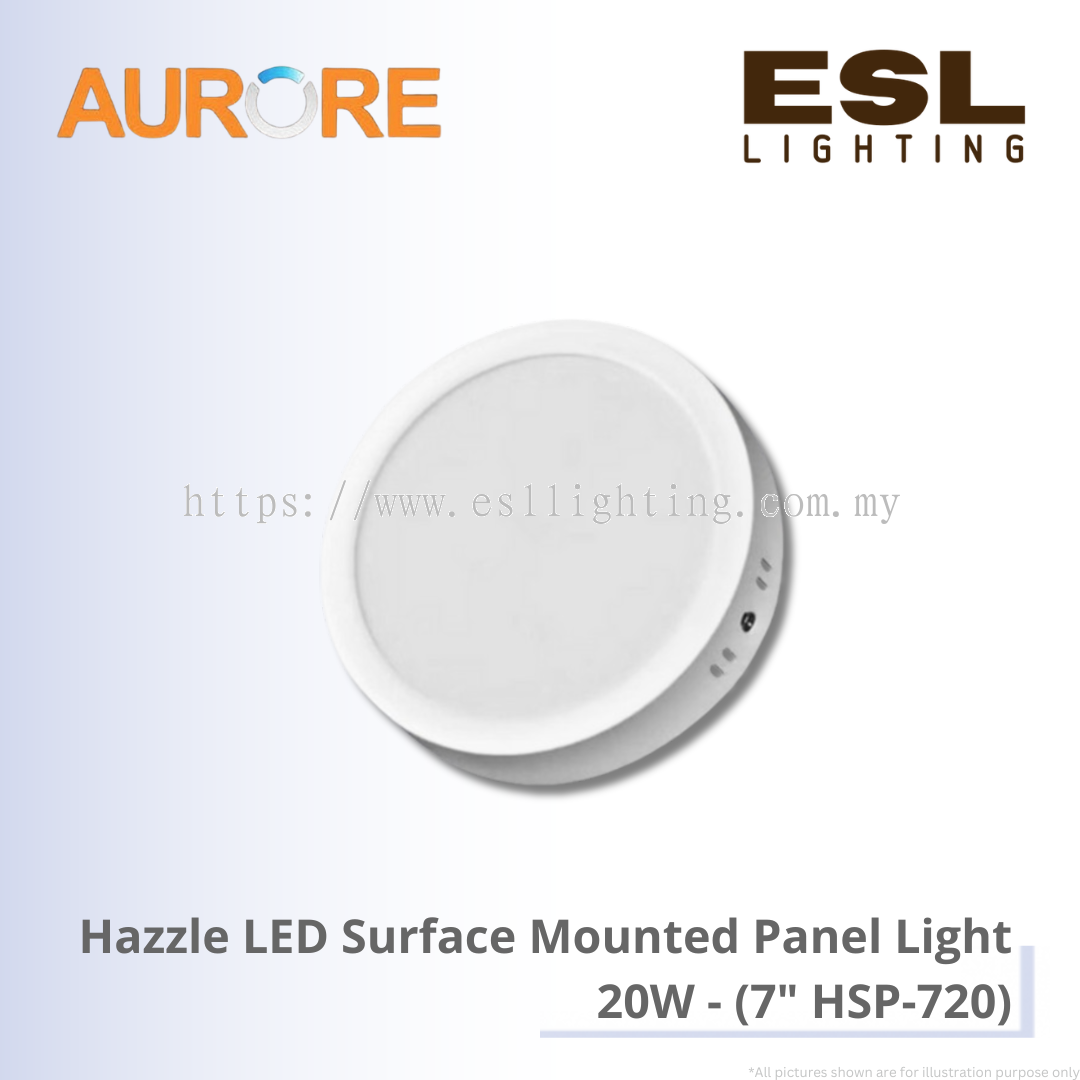

AURORE 20W LED Surface Panel Light 7" HSP-720 [SIRIM]

The AURORE Hazzle LED Surface Mounted Panel Light 20W (Model: HSP-720) is an energy-efficient, SIRIM-approved 7-inch ceiling downlight engineered for modern home and commercial interiors across Malaysia. Delivering a luminous output of 2000 lumens while consuming just 20 Watts, it provides bright, glare-free illumination with a wide 100° beam angle. Available in three customizable color temperatures (3000K Warm White, 4000K Cool White, and 6500K Daylight), this sleek 32mm ultra-slim fixture mounts directly onto concrete or hard ceilings without requiring false ceiling cutouts, offering an ideal lighting solution for residential, retail, and office renovations.

Full Description:

SIRIM-Approved Safety & Quality Certification

Electrical safety and reliability are non-negotiable for Malaysian households and business premises. The AURORE Hazzle 20W HSP-720 is fully certified by SIRIM, ensuring compliance with strict Suruhanjaya Tenaga (Energy Commission) safety standards. Built to withstand local electrical voltage fluctuations (175–260V 50/60Hz), it features an integrated safety driver and stable circuit design to guard against voltage spikes and overheating.

High Luminous Efficiency & Energy Savings

Upgrade your traditional ceiling fixtures and cut down your monthly TNB electricity bills. Delivering a powerful 2000lm output at only 20 Watts, this panel light offers an exceptional luminous efficacy of 100 lumens per watt. The fixture operates at a rated current of 0.1A and a Power Factor (PF) of 0.5, maximizing energy conversion into pure light output with minimal heat loss.

Versatile Lighting Ambiance (3000K / 4000K / 6500K)

Customize the mood of any room with three standard Color Temperatures (CCT):

3000K Warm White: Creates a cozy, relaxing atmosphere perfect for bedrooms, dining areas, and hotel lounges.
4000K Cool White: Offers crisp, natural lighting best suited for kitchens, study rooms, bathrooms, and retail stores.
6500K Daylight: Delivers vibrant, high-clarity lighting tailored for offices, living rooms, corridors, and workspaces requiring maximum focus.

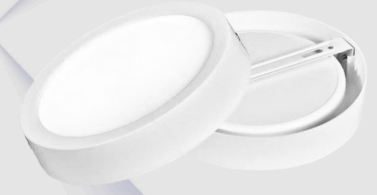

Slimline Surface-Mounted Architecture

Designed specifically for spaces where recessed ceiling cutouts are impossible or impractical (such as solid concrete slabs), the AURORE HSP-720 features a surface-mounted frame. Measuring 178mm in width (7 inches) and boasting an ultra-thin height profile of just 32mm, it sits flush against the ceiling surface for a seamless aesthetic.

Wide Beam Spread & High Color Fidelity

Equipped with a 100° beam angle, the high-transmittance frosted diffuser distributes illumination evenly across room surfaces, eliminating dark spots and harsh shadows. Combined with a Color Rendering Index (CRI) of Ra ≥ 80, colors inside your space appear true-to-life, vibrant, and natural.

Step-by-Step Installation & Application Guide Ideal Applications:

Residential: Living rooms, bedrooms, kitchens, hallways, balconies, and apartment concrete ceilings.
Commercial: Offices, retail outlets, corridors, clinic waiting areas, and showrooms.

Specifications

Model: 7'' HSP-720
Wattage: 20W
Lumen: 2000lm
Colour Temperature (CCT): 3000K,4000K,6500K
Rated Current: 0.1A
Power Factor: 0.5
Cri: 80
Input Voltage: 175-260V 50/60Hz
Beam Angle: 100°
Width: 178mm
Highness: 32mm

Q1: What is the difference between a surface mounted LED light and a recessed downlight?
A:A surface-mounted LED light attaches directly to the surface of the ceiling and requires no cutout holes, making it ideal for concrete slabs or hard ceilings. A recessed downlight sits inside the ceiling and requires a precut hole, which is standard for plaster false ceilings.

Q2: Does a 20W 2000 lumen LED panel light consume a lot of electricity?
A:No, 20W is highly energy-efficient. An output of 2000 lumens from a 20W LED provides the same brightness as a traditional 150W incandescent bulb or a 40W CFL bulb, reducing electricity consumption by up to 80%.

Q3: What size hole cutout is needed to install the AURORE HSP-720 7-inch light?
A:No ceiling cutout is needed. The AURORE HSP-720 is a surface-mounted light fixture. You simply screw the mounting base plate into the concrete or plaster ceiling surface and snap the fixture into place.

Q4: Why is SIRIM certification important for LED downlights in Malaysia?
A:SIRIM certification ensures the electrical appliance has passed safety testing according to Malaysian standards, preventing short circuits, fire hazards, and radio interference. It guarantees that the product operates safely on local 220–240V power grids.

Q5: What does CRI > 80 mean on the AURORE 20W panel light?
A:CRI (Color Rendering Index) measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A CRI of 80 or higher ensures vivid, accurate color representation without unnatural tinting.

Q6: Can the AURORE 20W LED light operate with standard Malaysian home voltage?
A:Yes, the AURORE HSP-720 accepts a wide input voltage range of 175V to 260V at 50/60Hz, matching Malaysia’s nominal 230V household supply voltage and handling minor grid fluctuations.

Q7: How thick is the AURORE HSP-720 surface-mounted light?
A:The light has an ultra-slim profile with a height/depth of 32mm and a width of 178mm (7 inches), maintaining a modern, low-profile look against your ceiling.

Q8: What area can a 2000lm 20W LED ceiling light illuminate effectively?
A:A single 2000-lumen panel light with a 100° beam angle can comfortably illuminate a 4 to 6 square meter area (such as a small bedroom, kitchen section, or hallway). Multiple units can be spaced 1.5 to 2 meters apart for larger rooms.

Q9: Is the AURORE Hazzle HSP-720 waterproof for outdoor use?
A:The AURORE HSP-720 is rated for indoor dry applications (IP20 standard). It is suitable for living rooms, bedrooms, kitchens, and covered corridors, but should not be exposed to direct rain or high-humidity outdoor environments.
