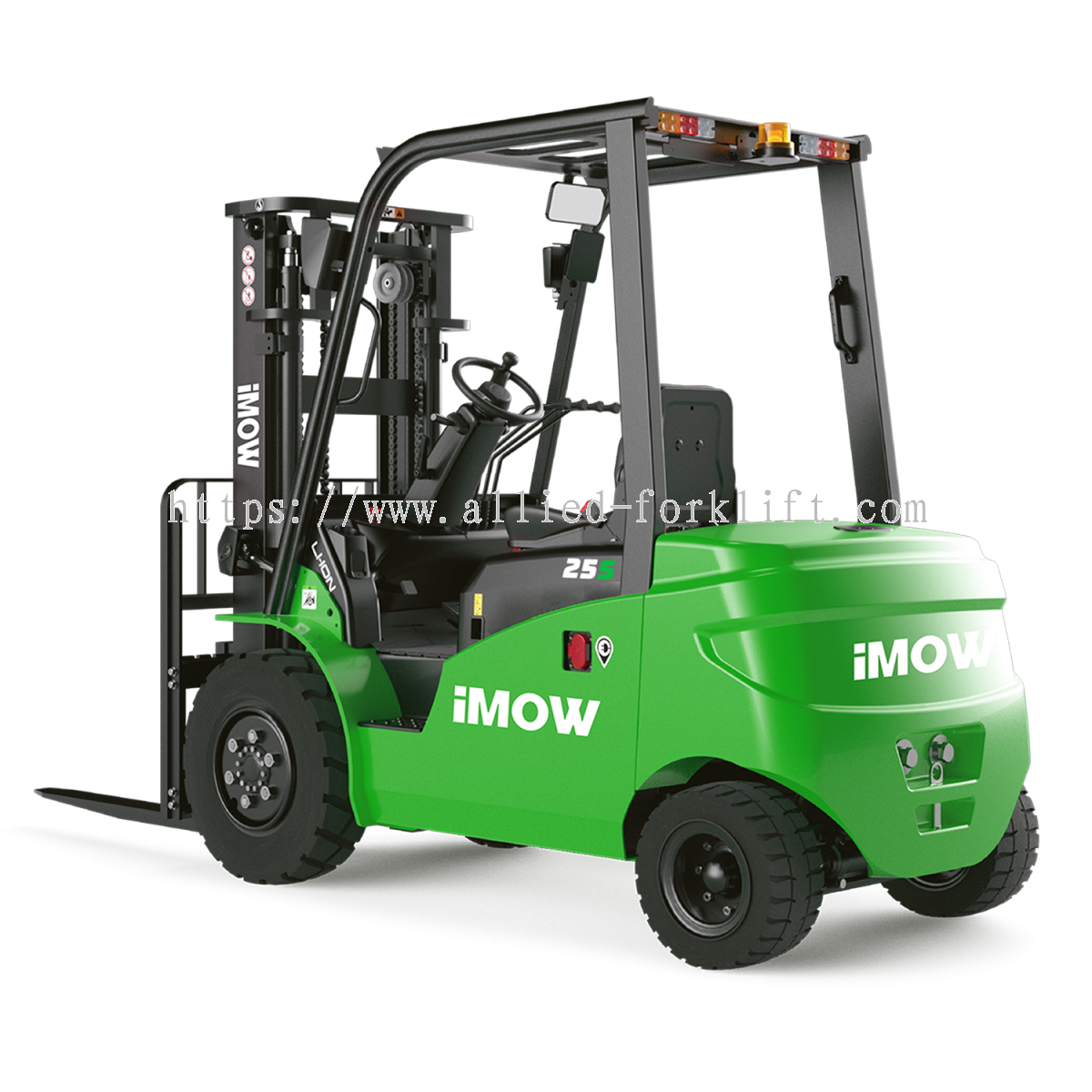

| Manufacturer | iMOW |
|---|---|
| Model Designation | ICE253S |
| Drive | Electric |
| Operator Type | Seated |
| Load Capacity | 2500 kg |
| Load Center Distance | 500 mm |
| Load Distance, Centre of Drive Axle to Fork | 495 mm |
| Wheelbase | 1740 mm |
| Service Weight | 3890 kg |
| Axle Loading, Laden Front / Rear | 5795 / 660 kg |
| Axle Loading, Unladen Front / Rear | 1865 / 2090 kg |
| Tyre Type | Pneumatic |
| Tyre Size, Front | 7.00-12-12PR |
| Tyre Size, Rear | 18x7-8 |
| Wheels, Front / Rear | 2x / 2 |
| Tread Width, Front / Rear | 975 / 955 mm |
| Tilt of Mast / Fork Carriage, Forward / Backward | 6 / 10 deg |
| Retracted Mast Height | 2090 mm |
| Free Lift | 120 mm |
| Lift Height | 3000 mm |
| Maximum Lift Height | 6000 mm |
| Height, Mast Extended | 4025 mm |
| Height of Overhead Guard | 2165 mm |
| Seat Height | 1095 mm |
| Tow Coupling Height | 330 mm |
| Overall Length | 3600 mm |
| Length to Face of Forks | 2530 mm |
| Overall Width | 1054 mm |
| Fork Dimensions | 40 x 122 x 1070 mm |
| Fork Carriage Class / Type | 2A |
| Fork Carriage Width | 1040 mm |
| Ground Clearance, Below Mast | 125 mm |
| Ground Clearance, Centre of Wheelbase | 170 mm |
| Aisle Width, 1000 x 1200 Crossways | 4000 mm |
| Aisle Width, 800 x 1200 Lengthways | 4200 mm |
| Turning Radius | 2305 mm |
| Travel Speed, Laden / Unladen | 16 / 17 km/h |
| Lifting Speed, Laden / Unladen | 0.4 / 0.5 m/s |
| Lowering Speed, Laden / Unladen | 0.4 / 0.43 m/s |
| Max. Gradeability, Laden / Unladen | 20 / 25% |
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
| Drive Motor Rating | 16 kW |
| Lift Motor Rating | 24 kW |
| Battery Voltage / Nominal Capacity | 80V / 230Ah |
| Drive Control | AC |
| Steering Design | Hydraulic |
| Charger Output Current | 80V / 65A |
| Source | ICE253-303-353S-EN-Brochure.pdf |
