Freshliance — Bluetooth Temperature & Humidity Data Logger

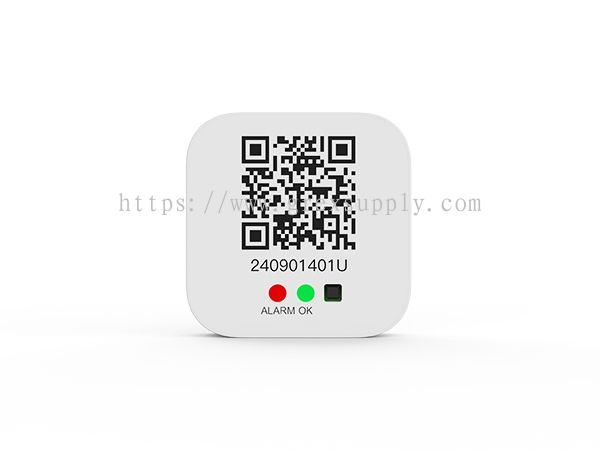

BlueTag T100 and BlueTag TH100 are the wireless temperature/humidity data loggers using the Bluetooth network to transmit data. With a Bluetooth-enabled phone, users can scan the QR code to wirelessly configure the loggers and view monitoring data via the App Tkeeper.
The data viewed by one user will be automatically uploaded to the Freshliance Cloud and then synchronized to other users. The mini Bluetooth temperature recorders are simple to use and compact in design, very suitable for the environmental monitoring of insulin cooler cases, etc.
| BlueTag T100 | BlueTag TH100 | |
|---|---|---|
| Communication distance | 22 m (open space) | |
| Temperature range | −30°C ~ +70°C | |
| Temperature accuracy | ±0.3°C F.S. | ±0.5°C F.S. |
| Humidity range | N/A | 0–100% RH |
| Humidity accuracy | N/A | ±3% RH (25°C, 20–80% RH), ±5% RH (other) |
| Start delay | 0 min ~ 72 h | |
| Logging interval | 1 min ~ 99 min | |
| Alarms | Max. 6 alarm points | |
| Memory | Max. 65,000 readings | |
| Temperature units | °C, °F | |
| Report format | PDF, CSV | |
| Connection | Bluetooth 5.2 | |
| App OS | Android / iOS | |
| App language | Chinese, English, French, German, Portuguese, Russian, Spanish, etc. | |
| Battery type | 3.0V CR2032, replaceable battery | |
| Installation | 3M adhesive tape, hanging | |
| Dimensions | 31.8 × 31.8 × 10.5 mm | |
| Weight | About 10 g | |
BlueTag T100 and BlueTag TH100 have a built-in Bluetooth module. Users can pair them with a Bluetooth-enabled smartphone, and then use the App to scan the device QR code to program them and track their monitoring data, including geolocation information.
When a user views the latest data from the Bluetooth temperature sensors, these data will be automatically uploaded to the cloud and shared to other users.
Tkeeper records and summarizes all data in graphs and detailed list, and automatically process them for the statistical results of max., min., avg., and MKT value, etc. It also allows users to filter data by hour, day, week, month, year, or data status.
Both the start time and end time of the report data can detail to minutes or shorter, making the data analysis more focused and efficient.
All alarm data will be clearly identified in the dataset. And the red LED indicator on the devices will flash every 30 s.
Users can export the data in PDF/CSV format, and directly send the data report to an email via the App. And the electronic signature option is provided for the PDF report after stopping the devices.
The Tkeeper App supports multiple languages, including Chinese, English, French, German, Portuguese, Russian, Spanish, and Korean, etc.
They are very suitable for the environmental monitoring of insulin cooler cases, carry-on medical kits and the cold chain transportation and logistics with small containers or vehicles, to help users remotely track the monitoring data online.
