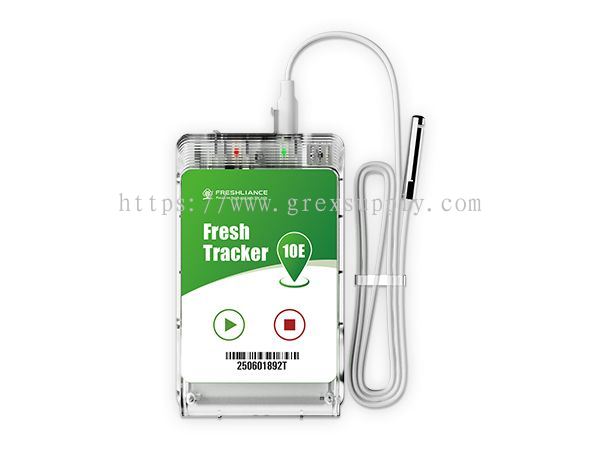

Freshliance — 4G Temperature & Geolocation Data Logger
Fresh Tracker 10E series is a cost-effective 4G temperature and geolocation data logger designed for real-time data tracking and alarm in transit. It monitors temperature and geolocation throughout the transit process and transmits data to Freshliance Cloud via 4G connectivity.
Data are globally traceable in real time via mobile APP and cloud platform. SMS, email and APP push are available for alerts.
| Fresh Tracker 10E-S | Fresh Tracker 10E | |
|---|---|---|
| Type of use | Single use | Multi use |
| Battery | Lithium battery 3.0V / 4800mAh, UN38.3 compliant; non-lithium battery optional | Rechargeable lithium battery 3.7V / 4000mAh, 2 hours to fully recharge (Type-C DC 5V/2A), UN38.3 compliant; non-lithium battery optional |
| Temperature range | Built-in: −30°C ~ +70°C, ±0.5°C F.S. Optional external probe: −30°C ~ +70°C / −90°C ~ +200°C |
|
| Device parameters | User configurable Default: alarm point 2–8°C; logging interval 10 min; uploading interval 60 min |
|
| Memory capacity | Max. 30,000 readings | |
| Temperature units | °C / °F | |
| Local report optional | USB Type-C interface to download trip report | |
| Flight mode | Configurable as needed | |
| Operation system | Web, App | |
| Cellular network | 4G (LTE_Cat1) with 2G (optional) | |
| Positioning technology | LBS positioning | |
| Battery life | Max. 120 days | |
| Installation | 3M adhesive tape, wall mounting | Hook and loop fastener, wall mounting |
| Dimensions | 101 × 60 × 34 mm | |
| Weight | 189 g (main device) | |
After configuration and start, Fresh Tracker 10E continuously monitors temperature and geolocation and instantly transmits data to Freshliance Cloud via 4G network. Users access live data and trends via the cloud platform or mobile APP. If alarm thresholds are exceeded, SMS, email, and APP push messages will be sent instantly, enabling rapid response to critical environmental changes.
Fresh Tracker 10E has a robust on-board memory. If network connectivity is lost, it could automatically cache up to 30,000 readings with precise timestamps. And after network restoration, it will seamlessly upload the offline data to the cloud, ensuring 0 data gaps and full continuity of records.
Fresh Tracker 10E provides real-time geographical locations based on LBS positioning, and intuitively displays the geolocation data via interactive mapping within both the cloud platform and mobile APP, enabling precise tracking and quick identification of in-transit assets.
Flight mode is freely configurable by users, to completely disable 4G wireless communication during a certain period of time. This mode ensures the compliance with aviation safety regulations during air transport and significantly extends battery life of the 4G temperature monitor in areas without network coverage or where signals must be disabled.
Fresh Tracker 10E is engineered with a large-capacity battery to operate continuously for up to 120 days on a single charge, enabling it ideal for most long-distance transportation at home and abroad, without frequent maintenance.
As an option, we provide a role-based multi-level control system for the cloud platform. Administrators can define hierarchical user roles (e.g., Super Admin, Manager, Clerks, Auditors) with specified permissions, ensuring data security, regulatory compliance and efficient team collaboration.
Fresh Tracker 10E is ideal for remote real-time environmental monitoring and alarm in cold chain logistics and transport of fruits, food, vaccines, drugs and other sensitive products.
