Model :
.png)
.png)
| ITEM | TP04G-AS2 | |
| Screen Type | STN-LCD | |
| Display Color | Monochromatic | |
| Backlight | The back-light automatic turn off time is 1~99 minutes (0 = do not turn off) (The back-light life is about 50 thousand hours at 25°C) |
|
| Resolution | 128x64 dots | |
| Display Range | (W) x (H) = 72 x 40 (unit: mm); 3.00" (diagonal preferred) | |
| Contrast Adjustment | 10 levels of adjustment | |
| Language / Font | ASCII: (Code page 850) Alphanumeric (including European characters) China: (GB2324-80 codes) Simplified Chinese Fonts Taiwan: (Big 5 codes) Traditional Chinese Fonts |
|
| Display Text | 5x8 dots | 25 characters x 8 rows |
| 8x8 dots | 16 characters x 8 rows | |
| 8x12 dots | 16 characters x 5 rows | |
| 8x16 dots | 16 characters x 4 rows | |
| Font Size | ASCII: 5×8, 8x8, 8x12, 8x16 | |

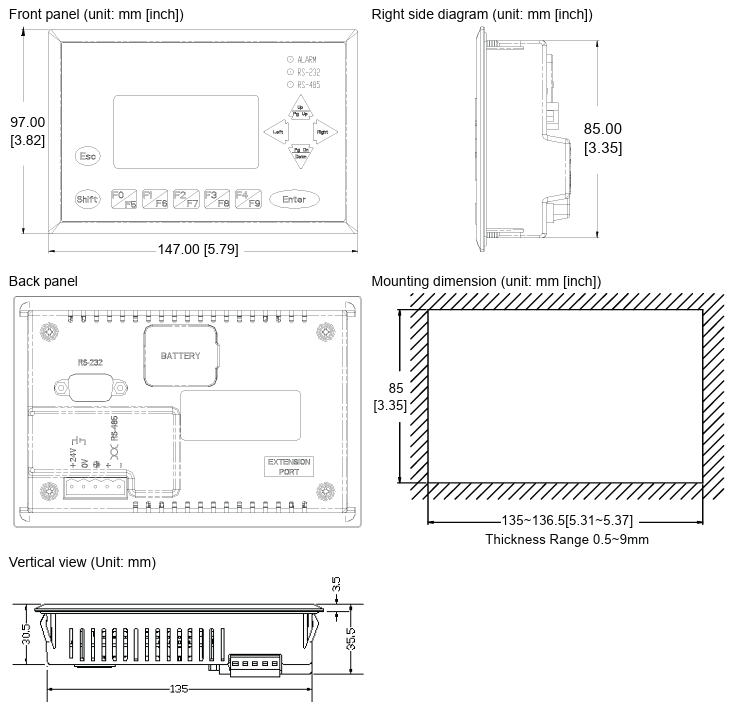

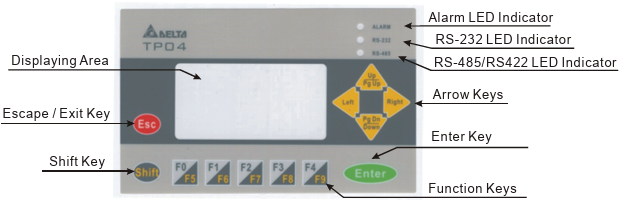

| Alarm LED Indicator (RED) | 1. Power on indication (Blink for three times) 2. Communication error alarm 3. Special indication by user programming |
|
| RS-232 LED Indicator (Yellow) | It will blink when transmitting program and communicating by using RS-232. | |
| RS-485/RS-422 LED Indicator (Green) |
It will blink when communicating by using RS-485/RS-422. | |
| Program Memory | 256KB flash memory | |
| Serial Communication Port RS-232 (COM1) |
Unsynchronized transmission method: RS-232 RS-232: 9 PIN D-SUB male Parity: None/Odd/Even, Transmission speed: 9,600bps ~ 115,200bps Data length: 7 or 8 bits, Stop bits: 1 or 2 bits |
|
| Extension Communication Port RS-422 (COM1) RS-485 (COM2) |
Unsynchronized transmission method: RS-485/RS-422 RS-485: 5 PIN removal terminal RS-422: 9 PIN D-SUB male Parity: None/Odd/Even, Transmission speed: 9,600bps ~ 115,200bps Data length: 7 or 8 bits, Stop bits: 1 or 2 bits |
|
| Extension Interface | 1. Update firmware version 2. The slot for program copy card |
|
| Battery Cover | DC 3V battery for HMI | |
| 5 PIN Removal Terminal | Include DC 24V input and RS-485 communication input | |
