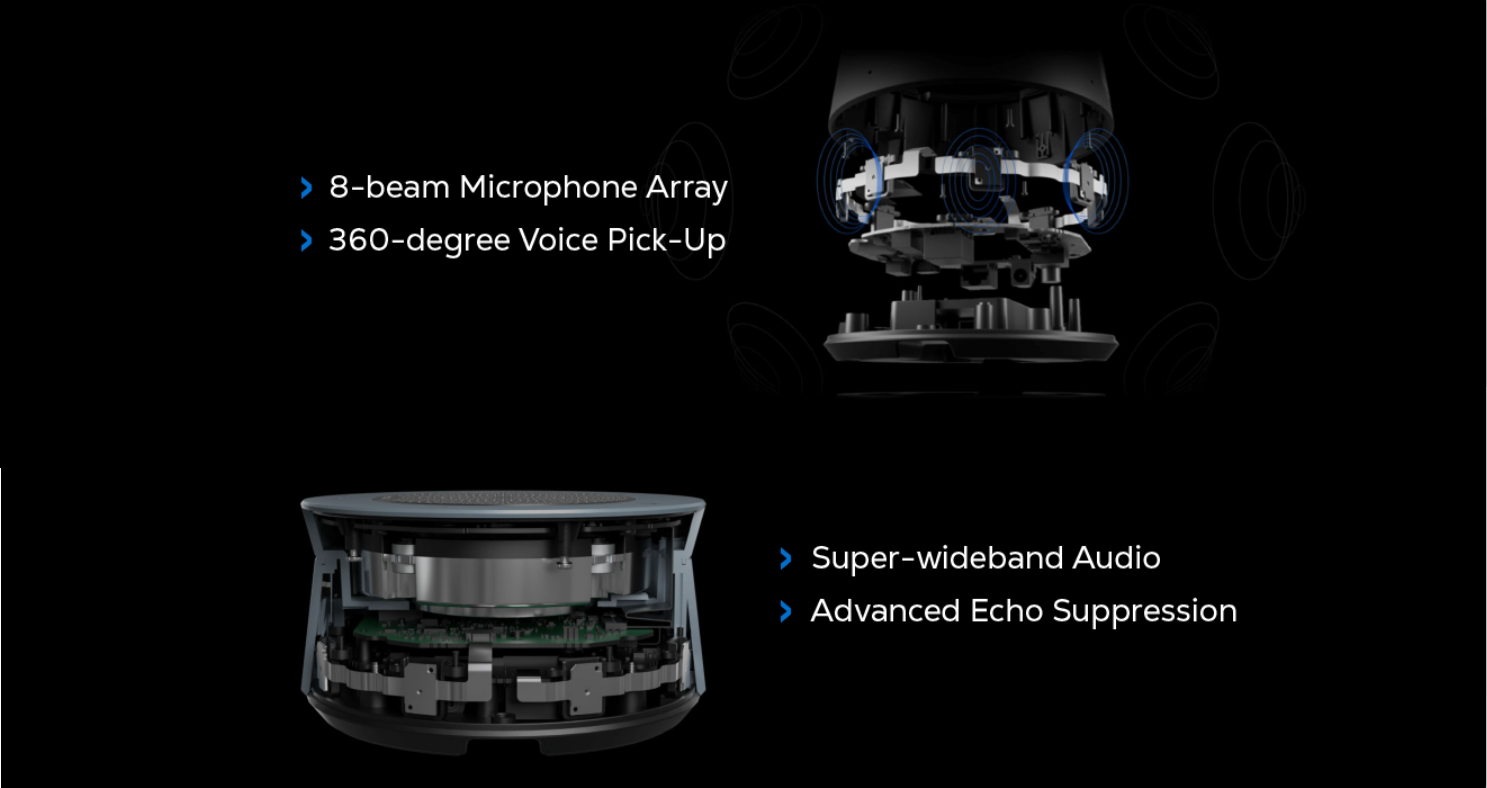

The UC BM45 features an 8-beam microphone array and advanced speakers for 360-degree voice pick-up and natural sound. With super-wideband audio and advanced echo suppression, it ensures clear communication.
.png)
AI algorithms remove background noises like keyboard clicks and air conditioning, focusing solely on human voices. Combined with AI noise cancellation and AEC, it enhances focus and collaboration.
.png)
.png)
.png)
.png)
.png)
| Model | UC BM45 |
| Audio | |
| Microphone Quantity | 8 |
| Voice Pick-Up Range | Best 4m (13.1 ft), maximum 8m (26.2 ft) |
| Microphone Frequency Range | 100-10kHz |
| Speaker Output Power (Maximum) | 5W |
| Sound Pressure Level | 76db@1m |
| Speaker Bandwidth | 100Hz~20kHz |
| AI Noise Suppression | Yes |
| Full Duplex | Yes |
| Auto Gain Control (AGC) | Yes |
| Auto Echo Cancellation (AEC) | Yes |
| Connectivity | |
| USB-C | 1 |
| RJ45 (POE in) | Quantity :1 to connect to a POE switch to connect the previous UC BM45 in a cascading mode to connect MAXHUB V7 XBoard (Mic-in) |

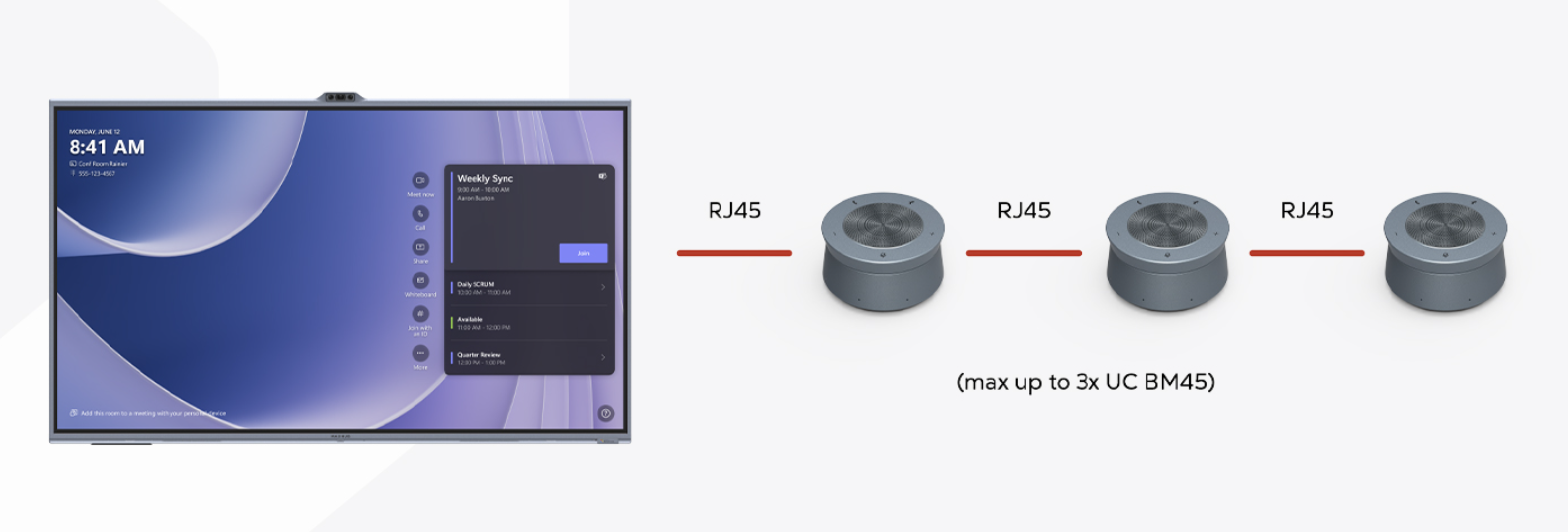

| RJ45 (POE out) | Quantity :1 to connect the next UC BM45 in a cascading mode |
| DC in | 54V /0.925A |
| Easy of Use | |
| Hot Key | Mute / Unmute, Volume +, Volume -, Answer, Hand up |
| LED Indicator | Yes |
| Physical Information | |
| Product Dimension | 122mm (Diameter) × 65mm 4.8inch (Diameter) × 2.6inch |
| Product Weight | 472g / 1lbs |
| Package Dimension | 226 × 187 × 91mm |
| Package Weight | 1.21kg |
| Package Contents | |
| UC BM45 Unit | 1 |
| Table Bracket | 1 |
| Power Adapter | 1 |
| USB-C to USB-A Cable | 1 (3m / 9.8ft) |
| Compatible Software | |
| MAXHUB Align | |
| MAXHUB Pivot | |
| Room Certification | |
| Microsoft Teams Rooms Certified* | Yes |
