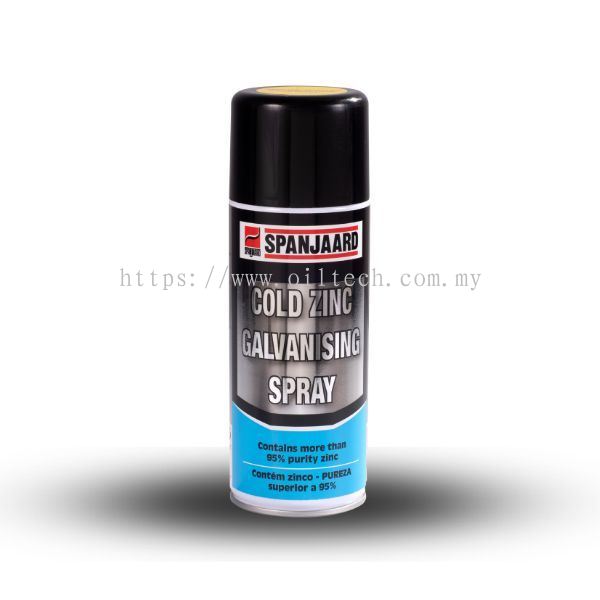

TL;DR: Spanjaard Cold Zinc Galvanising Spray is a zinc-aluminum protective coating compliant with ISO 9001 manufacturing standards, optimized for high-humidity Malaysian industrial environments. It serves as a decisive anti-corrosion barrier or primer for steel infrastructure requiring continuous atmospheric galvanic protection.
Product Classification: Zinc and aluminum particle protective film and primer.
Manufacturing Compliance Standard: Certified ISO 9001 Manufacturer by the SABS.
Zinc Purity Content: 95% pure zinc within the spray-film composition.
Color Profile: Silver.
Physical Density Metric: 1.10 g/ml.
Salt Fog Resistance: 400 hours with no rust observed at a 4-coat layer thickness of 100µ.
Humidity Cabinet Test: Passed at greater than 1,500 hours (>1500 hours).
Theoretical Aerosol Coverage: 1.35 meter square per single coat using a 400g aerosol canister.
Substrate Integration: Formulated for direct application on iron, steel, galvanized steel roofing, structural steel tanks, transmission towers, and underground pipelines.
Industrial Sector Deployment: Engineered for mining equipment, oil rigs, off-shore drilling structures, agricultural machinery, marine boat hulls, air conditioning units, metal floors, and industrial ducts.
Weld Seam Remediation: Applied directly to clean weld joints to eliminate local galvanic corrosion.
Application Boundaries: The chemical composition must not be applied to surfaces contaminated with existing rust, dirt, moisture, oil, or grease, as substrate impurities prevent proper zinc-to-iron bonding, leading to premature delamination. Do not expose unsealed containers or aerosols to environments exceeding 50°C.
The formulation combines 95% pure zinc particles with aluminum to create a flexible, non-cracking, and non-chipping protective layer. In tropical environments characterized by continuous factory production schedules and high ambient heat, this metallic matrix provides ongoing cathodic protection. Cathodic protection (an electrochemical process where the zinc sacrifices itself to protect the underlying steel) effectively eliminates atmospheric galvanic corrosion even under continuous moisture exposure. This structural integrity is validated by its ability to pass over 1,500 hours in a humidity cabinet test without coating breakdown.
Highly Suitable For: MRO teams requiring ready stock Selangor availability for preventative maintenance, immediate structural repairs, onsite weld restoration, and long-term asset preservation across continuous-production manufacturing plants.
Not Suitable For: Facilities requiring non-flammable coatings, operations incapable of executing multi-coat drying intervals, or high-temperature processing loops where surface temperatures continuously exceed the structural threshold of the standard organic binding matrix.
Surface Decontamination: Ensure the target metal surface is totally free of rust, dirt, oil, and grease. Clean thoroughly by sandblasting or utilizing sandpaper mechanical abrasion until bare metal is exposed.
Agitation Protocol: For the aerosol format, shake the canister vigorously until the internal agitator ball moves freely, and continue shaking for an additional 30 seconds to ensure homogeneous particle distribution. For bulk packs, mix the liquid thoroughly before application.
Application Execution: Hold the aerosol can upright at a distance of exactly 20cm from the prepared surface. Apply a minimum of 4 distinct coats to achieve the targeted 100µ dry film thickness, allowing sufficient drying time between each consecutive layer. Bulk variants can be applied uniformly using a specialized spray gun, high-density roller, or industrial brush.
Inadequate Agitation: Failing to shake the aerosol sufficiently results in the zinc particles settling at the bottom, leading to a resin-rich, zinc-poor spray layer that compromises cathodic defense.
Insufficient Layer Thickness: Applying fewer than the mandatory 4 coats (under 100µ) reduces the salt fog protection threshold significantly below the rated 400-hour benchmark.
Trapped Moisture Top-up: Spraying directly over localized flash rust or moisture in humid regional operating matrices traps corrosive agents under the film, accelerating sub-film oxidation and blistering.
Scheduled Waste Compliance: Discarded aerosol canisters, contaminated cleaning rags, and bulk residues must be managed as hazardous waste in strict accordance with the Department of Environment (DOE) Malaysia under the Environmental Quality (Scheduled Wastes) Regulations 2005.
Flammability Risk Control: This is an extremely flammable aerosol containing 44% by mass of flammable contents. Protect containers from direct sunlight, keep away from open flames, sparks, or hot surfaces, and do not expose to temperatures exceeding 50°C.
Personnel Exposure Mitigation: The vapor may cause drowsiness or dizziness, and the mixture is harmful by inhalation or skin contact. Wear appropriate personal protective equipment (PPE) to prevent skin and eye irritation during high-volume plant maintenance.
Verified Technical Data Sheets (TDS) and global Material Safety Data Sheets (MSDS/SDS) are available to engineering, safety, and procurement professionals upon formal request.
Q: Can Spanjaard Cold Zinc Galvanising Spray be utilized as a standalone final topcoat in marine environments?
A: Yes, the formulation dries into a flexible, non-chipping silver coating that serves effectively as either a protective final topcoat or a high-performance primer on iron and steel exposed to marine conditions.
Q: What specific mechanical protection metrics does a 100-micron application layer provide?
A: A cross-section layer achieved via 4 spray coats (100µ) delivers verified resistance of 400 hours under standard Salt Fog testing parameters and exceeds 1,500 hours inside a high-humidity testing cabinet without developing rust.
Q: What delivery packaging variants are available for large-scale factory maintenance top-ups?
A: The product is manufactured and distributed in two distinct configurations: standard 400ml aerosol canisters for spot maintenance and 5L bulk packs optimized for broad surface coverage via spray gun, brush, or roller.
