Hyper-Focal Digital Microscope

Motic EasyZoom 5P

Hyper-focal digital microscope delivering 30x to 10,000x magnification through a single zoom lens body. With motorized Z-axis, precision stage, and HDR imaging, the EasyZoom 5P enables high-resolution inspection, measurement, and 3D analysis across semiconductor, electronics, medical, and materials science applications.

Product Overview

EasyZoom 5P Hyper-Focal System: An all-in-one digital microscope integrating observation, recording, measurement, and reporting. Its proprietary optical system converts from 30x to 10,000x using a single zoom lens body while maintaining long working distances.

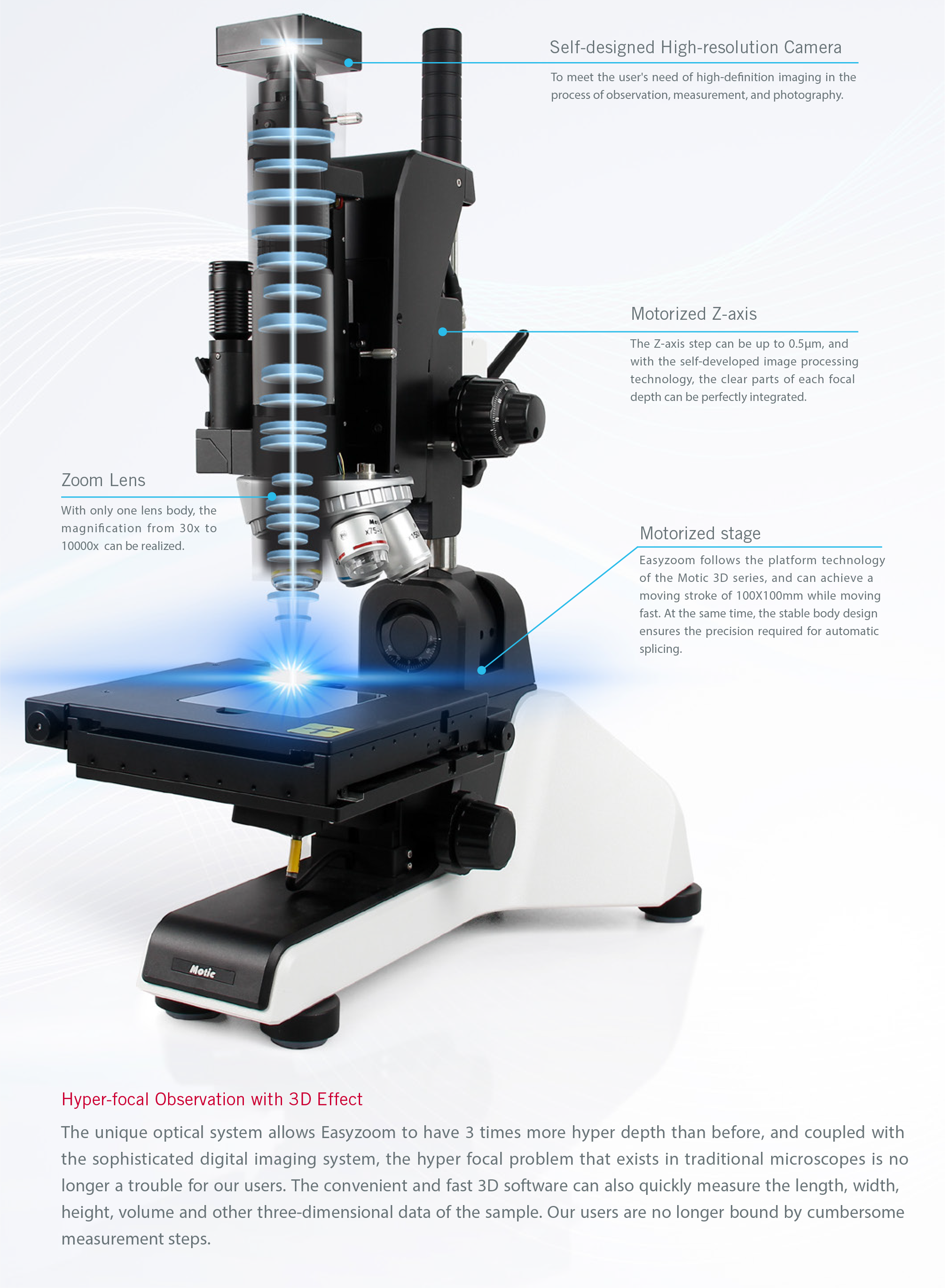

The EasyZoom 5P combines a self-designed high-resolution camera, motorized Z-axis with 0.1μm stepping, motorized 100x100mm stage, and HDR image processing. The hyper-focal optical system provides 3x greater depth of field than conventional microscopes, eliminating the need for frequent focus stacking. Built-in 2D/3D measurement and surface roughness analysis allow inspectors to capture, measure, and report without external software.

Main Features & Capabilities

Single Zoom Lens 30x–10,000x

A single zoom lens body converts from 30x to 10,000x magnification. Six interchangeable objective models (EZ-30BD through EZ-1500BD) cover the full range while maintaining long working distances for collision-sensitive samples.

Hyper-Focal 3D Observation

Proprietary optical system delivers 3x greater depth of field than conventional microscopes. Combined with EDF (Extended Depth of Field) synthesis, the system produces full-focus images even at high magnification and constructs rotatable 3D models with color-coded height maps.

Motorized Z-Axis & Stage

The motorized Z-axis achieves a minimum step of 0.1μm and resolution of 1μm, enabling precise focus stacking. The motorized stage provides 100 x 100mm travel for automated scanning and image stitching of large samples.

HDR Ultra-HD Imaging

The self-designed high-resolution camera captures multiple exposures at varying brightness levels and composites them into HDR images, eliminating glare and reflections. True color reproduction is achieved through proprietary lens coatings and semi-apochromatic objectives.

2D / 3D Measurement Suite

On-image measurement tools include line, circle, arc, angle, polyline, polygon, and counting. Automatic edge detection, area measurement, particle analysis, and mesh measurement reduce human error. 3D profile and surface roughness measurement are supported via an optional module.

High-Speed Acquisition & Stitching

Real-time image processing reduces wait times to one-third of conventional systems. The 50 fps camera enables continuous observation during measurement. Image stitching produces composites of up to 3.6 billion pixels with navigation reference points that minimize artifacts.

Description & Key Benefits

Hyper-Focal Optical System

10x Depth of Field: The proprietary optical system provides more than 10x the depth of field of conventional microscopes, making it possible to inspect samples with large height variances without frequent refocusing. HDR technology coupled with real-time depth of field eliminates reflections from challenging surfaces.

Precision Motorized Control

0.1μm Z-Axis Stepping: The motorized Z-axis, combined with self-developed image processing, blends the clearest portions of each focal depth to produce perfectly focused images even at 10,000x magnification. The motorized stage enables automated scanning, multi-point measurement, and large-area stitching.

High-Fidelity Imaging

True Color Reproduction: Motic's proprietary lens production and coating technology deliver semi-apochromatic correction for superior resolution and color fidelity. A vertical illumination cold light source provides single-wavelength light that increases optical resolution and minimizes thermal drift during analysis.

Integrated Workflow

Observe, Measure, Report: All functions are integrated into one system. The report generator automatically captures date, time, lens, magnification, and measurement data into standard or custom templates. Lens magnification auto-recognition, user settings storage, and MES system integration streamline industrial workflows.

System Specifications

Category	Model	Magnification	Field of View	Working Distance
Objective Lenses	EZ-30BD	30X∼200X	13∼2mm	10mm
	EZ-75BD	75X∼500X	5.2∼0.78mm	11mm
	EZ-150BD	150X∼1000X	2.6∼0.39mm	11.9mm
	EZ-300BD	300X∼2000X	1.3∼0.2mm	11.9mm
	EZ-750BD	750X∼5000X	0.52∼0.08mm	7.6mm
	EZ-1500BD	1500X∼10000X	0.26∼0.04mm	3mm
System	Z-Axis Resolution	1 μm (Top) / 0.1 μm (Motorized Step)
	Stage Travel	100(X) x 100(Y) mm
	Operating Temp / RH	10°C to 40°C / Below 85%
	LED Source Life	40,000 hours

Versatile Applications

Semiconductor

Silicon wafer laser grooving inspection, gold line bonding analysis at 500x, chip pin examination. The system's long working distance and high magnification enable non-contact inspection of delicate wafer surfaces.

Electronics Manufacturing

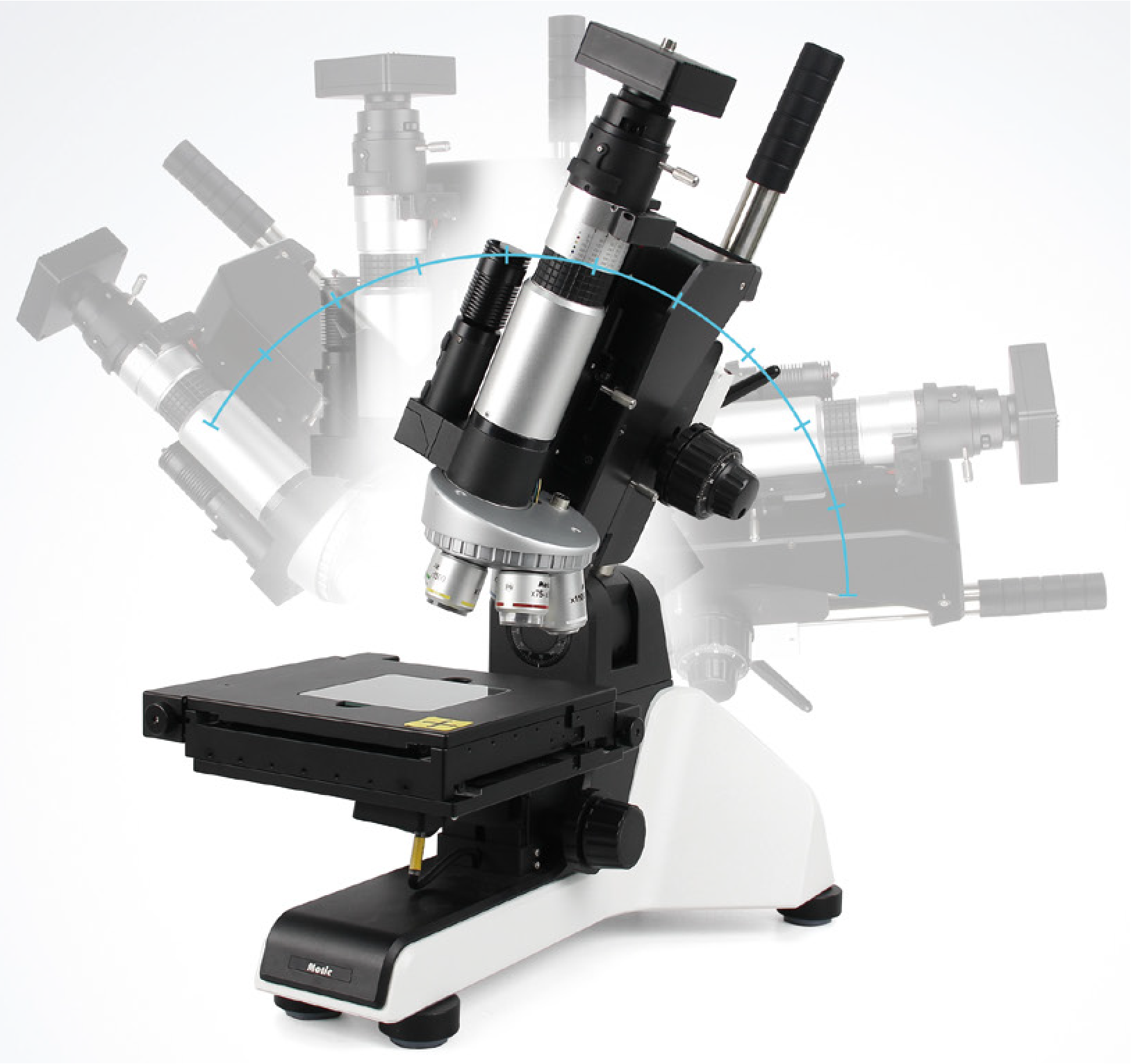

LCD panel inspection at 400x, PCB component verification, solder joint analysis. The 150° tilt stand allows multi-angle viewing of complex assemblies without repositioning the sample.

Precision Mechanics

Mechanical watch gear inspection, precision machined parts quality control, surface roughness measurement. The 3D measurement module provides profile and line roughness data for quality assurance.

Medical & Life Sciences

Syringe tip inspection at 200x, insect morphology observation, textile fiber analysis. The 50 fps camera enables live video measurement, while EDF synthesis produces full-focus images of irregular biological samples.
