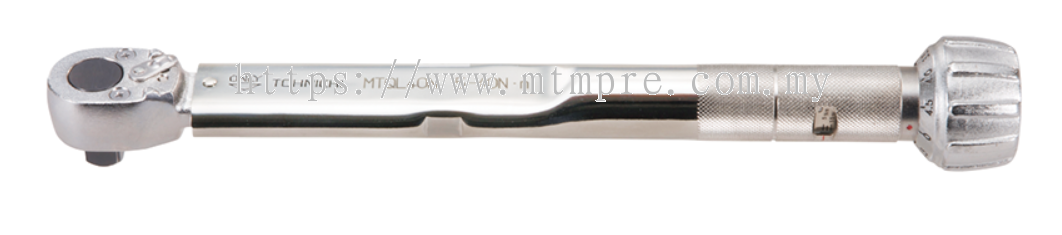

Tohnichi MTQL Torque Wrench


Wide range torque wrench for motorsports vehicles.

MTQL40N [Overall length 245 mm]

MTQL70N [Overall length 286 mm]

MTQL140N [Overall length 399 mm]

MTQL in Carrying case





Application

  • Maintenance use for sports-related vehicles including bicycles, motorcycles and automobiles.

Features

  • Wide range torque wrench.
  • Attractive surface. Knurled finish for the grip makes it easy to wipe off oil.
  • A clear “click” sound signals tightening completion upon reaching the set torque.
  • The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions.
  • Torque setting is easy to adjust by knob and scale.
  • All models come with a carrying case.

Specifications

Accuracy ±5%
S.I. MODEL MTQL40N MTQL70N MTQL140N
TORQUE RANGE
[N0鹠]		 MIN. ～ MAX. 5～40 10～70 20～140
GRAD. 0.5 1
METRIC MODEL 400MTQL 700MTQL 1400MTQL
TORQUE RANGE
[Kgf0鹠]		 MIN. ～ MAX. 0.5～4 1～7 2～14
GRAD. 0.05 0.1
APPLICABLE BOLT COMMON STEEL M6, M8, M10 M8, M10, M12, (M14) M10, M12,(M14), M16
HIGH TENSION M5, M6, (M7), M8 M6, (M7), M8, M10 (M7), M8, M10, M12
MAX. HAND FORCE [N] 228 338 438
DIMENSION
[mm]		 EFFECTIVE LENGTH L 176 207.5 320
OVERALL LENGTH L' 245 286 399
SQ. DRIVE a 9.53 12.7
b 11 14
HEAD R 13 16 18.8
h 27.5 25.6 33.5
BODY m 25.5 28
n 11.2 12.2
D 20 21.7
B 36 37
WEIGHT [kg] 0.45 0.47 0.77
Notes

MTQL accuracy: ±5%

Standard accessory

Carrying case

Dimensions

Expand dimensions

◆ How to order

[Tohnichi] [Model] Please specify.

[Example] Tohnichi MTQL140N


◆ Things to remember when ordering

Not available for inspection purposes. Accuracy of MTQL is ±5%.
