Torque Motor SDM264-360
Torque Motor SDM264-360



Torque Motor SDM264-360

SEM Equipment Sdn. Bhd. flag
分类: SERVOTOP 当前有货
欲了解更多详情，请游览我们的官方网站 sem-eq.com
游览官方网站 联络我们
详情




Model : SDM135-045

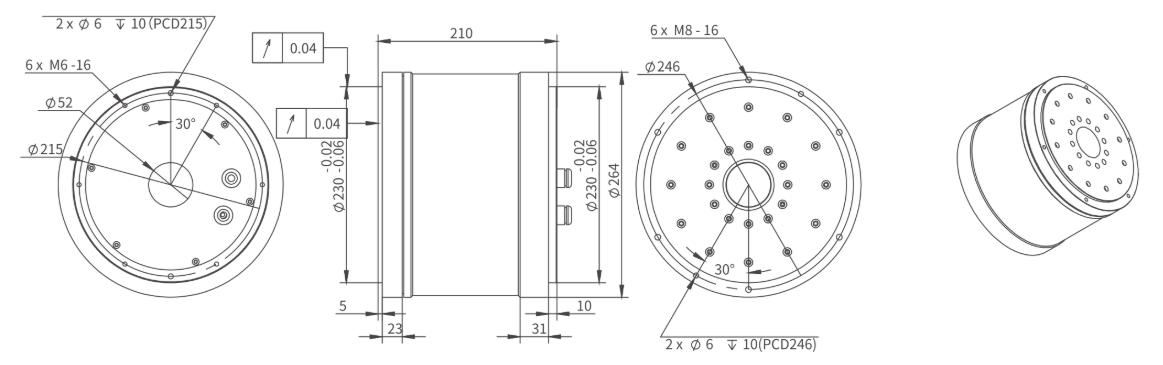

Dimension :




Specifications :

Model parameters Unit STP-SDM264-36011A31N-L005T-S06
Continuous torque ≥ Nm 180
Peak torque ≥ Nm 360
Continuous speed ≥ rpm 150
Peak speed ≥ rpm 200
Number of poles PCS 60
continuous current Arms 8
Thrust constant≥ Nm/Arms 22.5
Peak current Arms 24
Resistance ohm 12.3
Inductance mh 100
Absolute accuracy arcsec ±30
Repeat accuracy arcsec ±4
Axial force N 7000
Radial force N 6000
Coil maximum temperature °C 155
Quality kg 68
Moment of inertia of mover kg × m² 0.181
