Model : SDM264-180

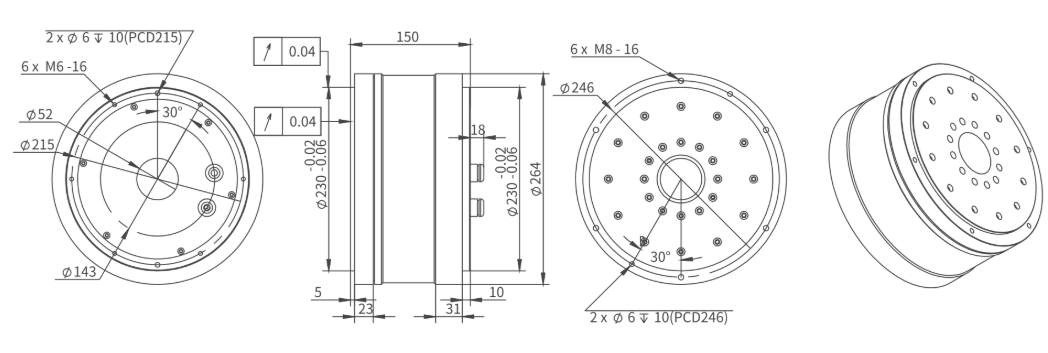

Dimension :




Specifications :

Model parameters Unit STP-SDM264-18011A31N-L005T-S06
Continuous torque ≥ Nm 90
Peak torque ≥ Nm 180
Continuous speed ≥ rpm 150
Peak speed ≥ rpm 200
Number of poles PCS 60
continuous current Arms 6
Thrust constant≥ Nm/Arms 15
Peak current Arms 18
Resistance ohm 7.1
Inductance mh 52.4
Absolute accuracy arcsec ±30
Repeat accuracy arcsec ±4
Axial force N 7000
Radial force N 6000
Coil maximum temperature °C 155
Quality kg 50
Moment of inertia of mover kg × m² 0.118
