ESG-1224CNC 众程科技平面磨床

SPECIFICATIONS

Item
Table size - 300 x 600 mm
Max.Grinding length - 650 mm
Max.Grinding width - 330 mm
Standard magnetic chuck size - 300 x 600 mm
Max. Distance from spindle center to table - 630 mm
Motor power - 1 / 1.5 / 1.8
Rated power approx. - 16 hp
Weight - 3600 kg
Floor space - 3100 x 3300 x 2900 mm
Packing dimension - 2050 x 2300 x 2150 mm

Longitudinal Movement of Table
X axis travel hydraulic - 650 mm
X axis travel manual - 700 mm
Worktable variable travel - 60hz 5-25m/min / 50hz 5-20 m/min

Cross Transverse Travel
Z axis auto transverse increment - 1-25 mm
Z axis auto. constant speed feed - 20-320 mm/min
Z axis auto travel - 310 mm
Z axis manual travel - 340mm
Handwheel graduation - X1 / X10 / X100 / 0.001

Wheelhead Vertical Feed
Y axis auto.feed - 0.001-0.05mm
Step feed (Jog) - 150
Slow travel approx. - 6
Y axis speed - 50/60hz, 1450/1750 rpm
Y axis power ration(HP) - 60hz 5-25m/min / 50hz 5-20 m/min

Grinding Wheel
Diameter - 355 mm
Width - 50 mm
Bore - 127 mm

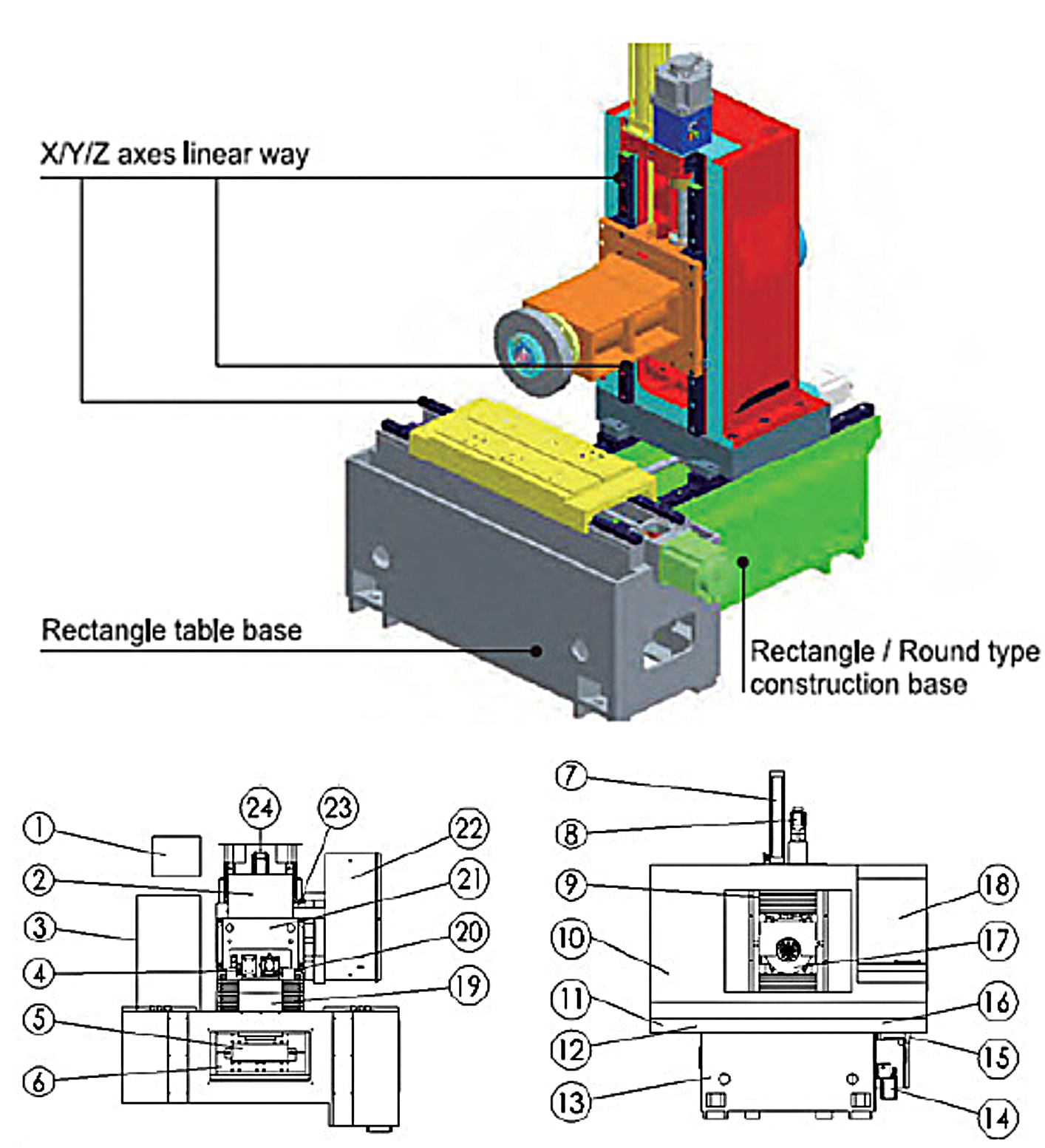

Y axis servo direct drive transmission mechanism, collocated with super precision SP class linear guideway.
(High rigidity roller type rail is available as option.)









Equipped with reliable direct drive transmission mechanism, collocated with excellent clever movement and supper precision SP class linear rail.
(High rigidity roller type rail is available as option.)







Base Mechanism:

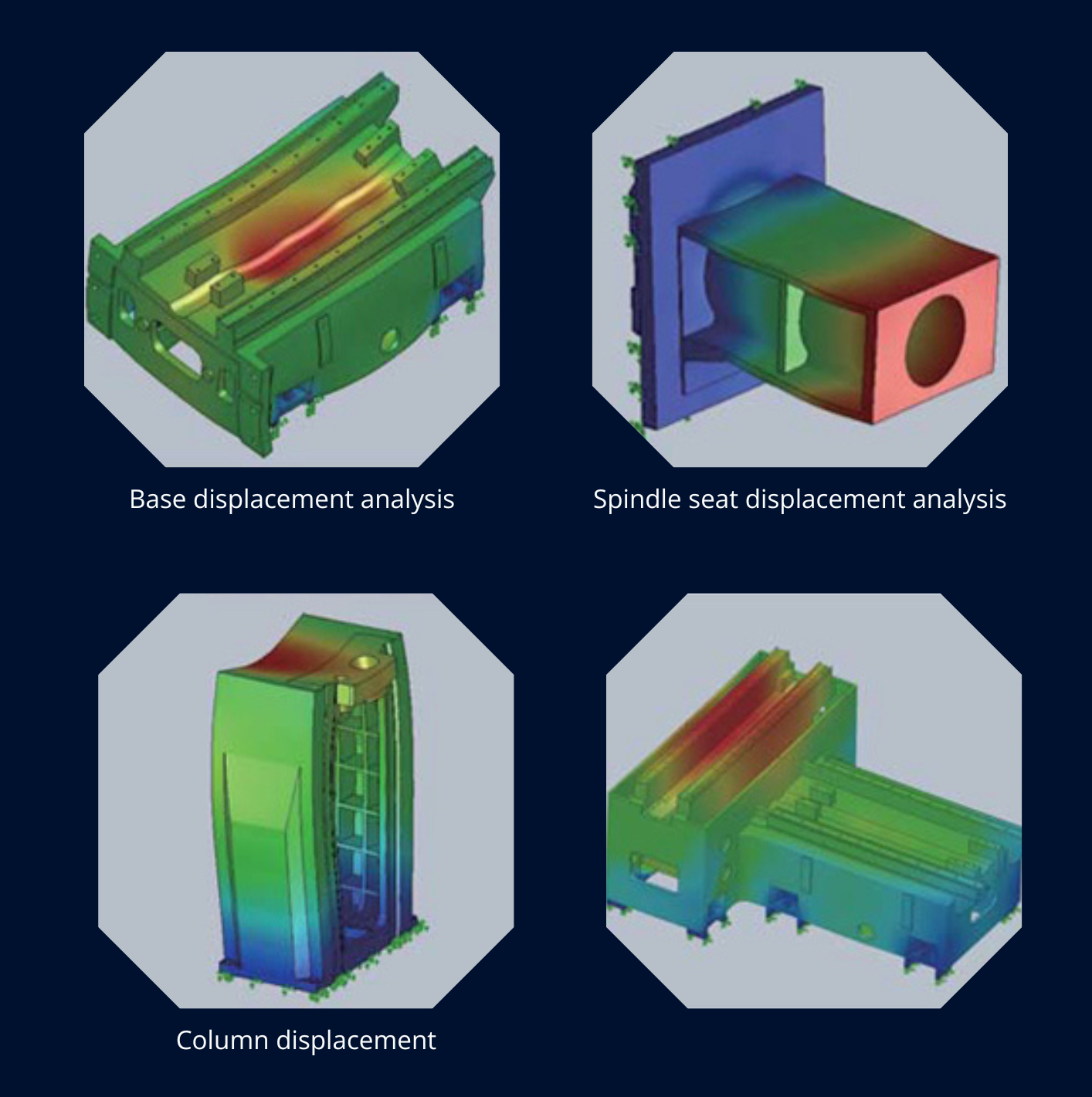

FEM analyzing for main casting and checked inside, rein-forcing rib and inner stress relief annealing to upgrade the reliabity of machine precision.
