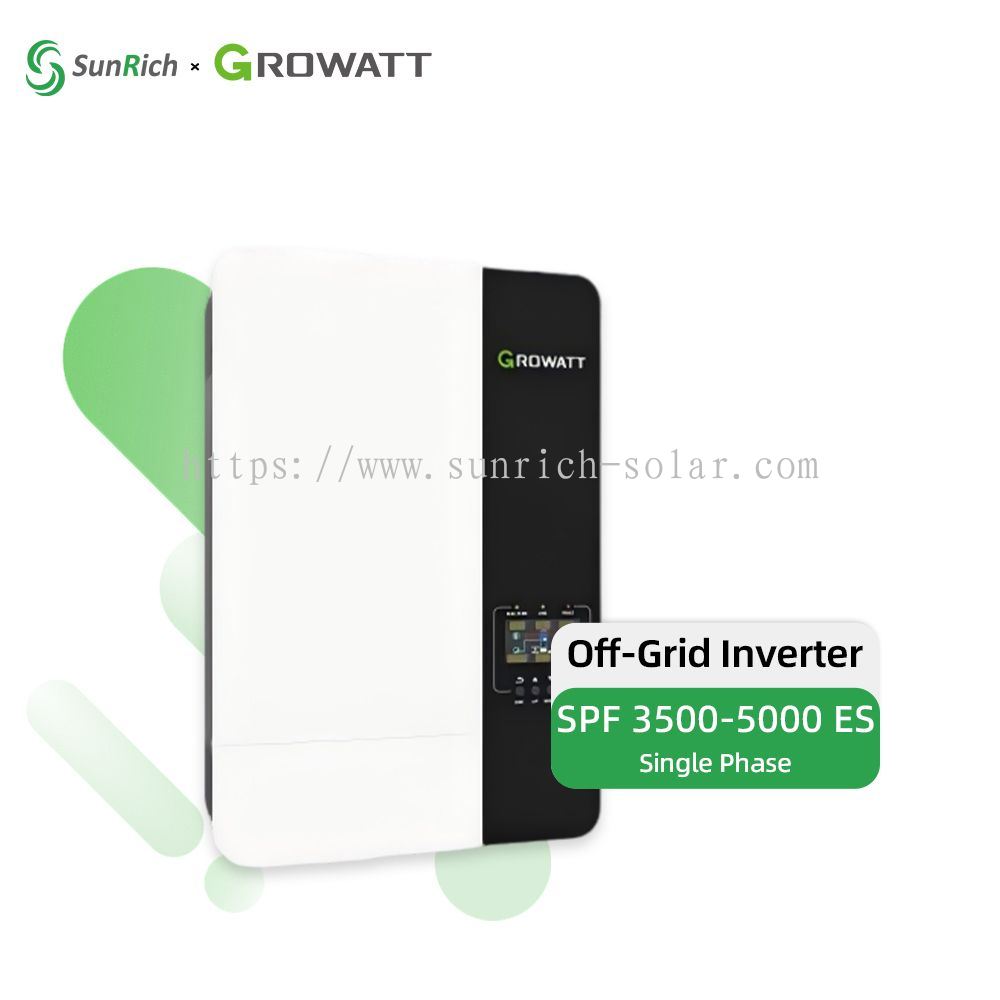

| Datasheet | SPF 3500 ES | SPF 5000 ES |
| Battery voltage | 48VDC | |
| Battery type | Lithium/Lead-acid | |
| Inverter Output | ||
| Rated power | 3500VA/3500W | 5000VA/5000W |
| Parallel capability | Yes, 6 units maimum | |
| AC voltage regulation (battery mode) |
230VAC ± 5% @ 50/60Hz | |
| Surge power | 7000VA | 10000VA |
| Efficiency(Peak) | 93% | |
| Waveform | Pure sine wave | |
| Transfer time | 10ms typical, 20ms Max | |
| Solar Charger | ||
| Maximum PV array power | 4500W | 6000W |
| Startup voltage | 150V | |
| MPP range @ operating voltage | 120VDC ~ 430VDC | |
| Number of independent MPP trackers/ strings per MPP tracker |
1/1 | |
| Maximum PV array open circuit voltage |
450VDC | |
| Maximum solar charge current | 80A | 100A |
| AC Charger | ||
| Charger current | 60A | 80A |
| AC input voltage | 230VAC | |
| Selectable voltage range | 170-280 VAC(For Personal Computers); 90-280VAC(For Home Appliances) | |
| Frequency range | 50Hz/60Hz(Auto sensing) | |
| Physical | ||
| Protection degree | IP20 | |
| Dimension(W/H/D) | 330/485/135mm | |
| Net weight | 11.5kg | 12kg |
| Operating Environment | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Altitude | ＜2000m | |
| Operating temperature | 0℃-55℃ | |
| Storage temperature | -15℃-60℃ | |
