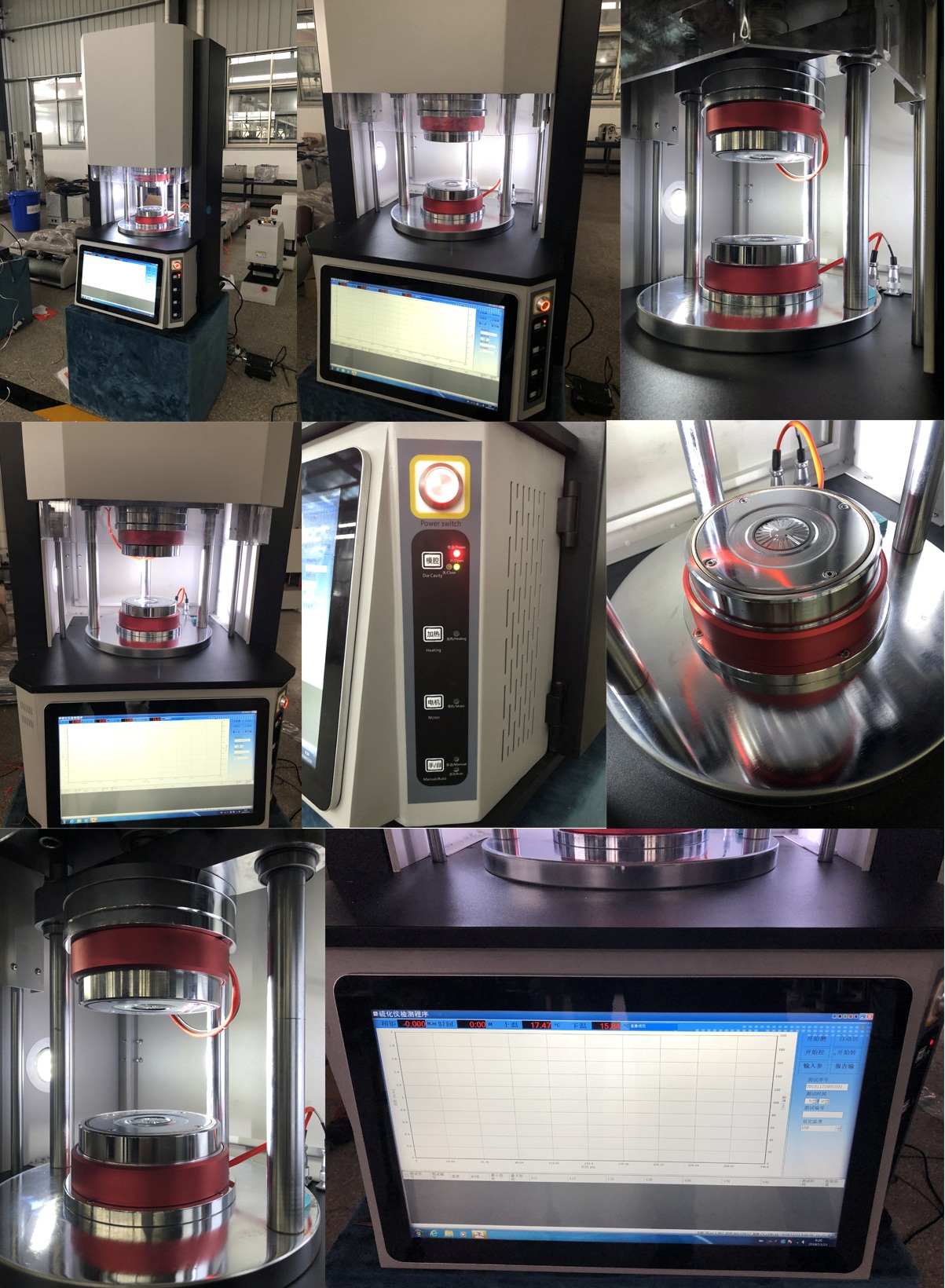

JG-6002 Rotorless Rheometer

Equipment Usage:

• JG-6002 Rotorless Rheometer is suitable for testing the variation of shear modulus when raw rubber is vulcanized. The shear modulus is proportional to the crosslinking density. So the results reflect the changes in the degree of crosslinking during vulcanization. So that we can measure the parameters like curing speed, curing time and desulfurization.

• High precision sensor: 0 ~ 15NM Resolution: 0.001NM
• Control system: adopting computer control and touch screen + PLC control module for data collection, storage, processing and printing test results and curve processing, the default time to extend or shorten the testing process, curve, history curve matching, and other functions.
• The rotation system: adopting Permanent all synchronous motor + amplitude regulator.
• The temperature control system: adopting intelligent digital temperature control instrument, Automatism adjust PID control parameters in real time.
• Data transmission: RS232 transmit
• Display mode: curemeter + WIN7 test software of computer screen and high resolution touch screen man-machine interface. It makes the whole measurement very convenient, fast and accurate
• Mold core: Cr6wv material, high strength and abrasion resistance
• Measurement method: Humanistic way of measurement and control, mouse click the box or touch screen light touch two double way. Intelligent software, provide a powerful data query function, humanized design, convenient and quick operation
• Lighting system: LED light source, turn on automatically when open mold, and turn off automatically when close the mold.
• Protective system: 5mm acrylic shield, open or close according to the mold status, and will be on off mode when power off.
